Description
Since its founding over two decades ago, Db Drive has affirmed its position as a leader in the field of car audio. Our company is a recognized and respected name in the industry, standing out for the creation of exceptional automotive audio equipment. Each product is distinguished by its attractive design, cutting-edge innovation and technology.

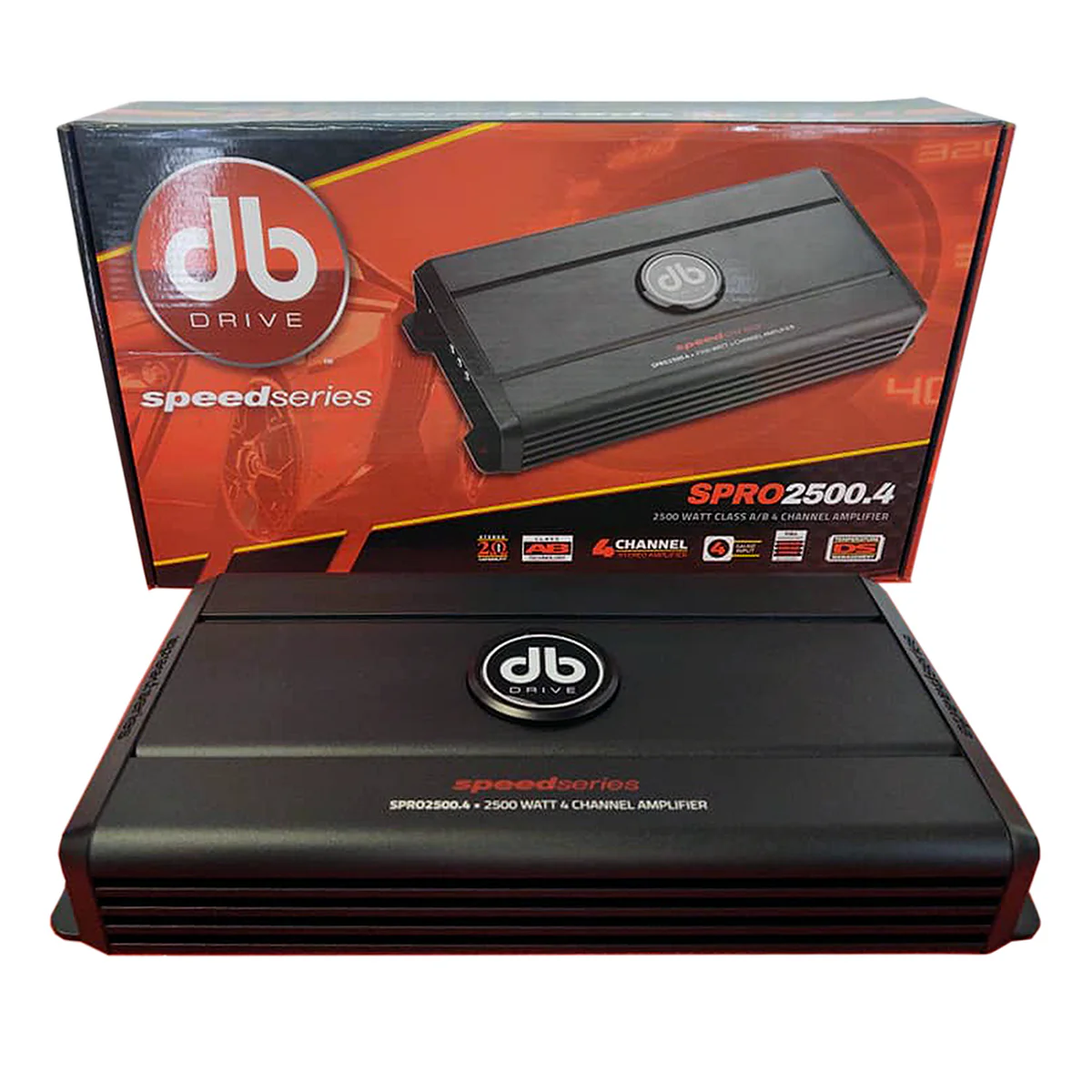

DESCRIPTION:
| Maximum power | 2500 Watts |
|---|---|
| Impedance | 2 Ohms |
Characteristics
- 4-channel class A/B amplifier
- 2 ohm stereo load capacity
- Selectable crossover: HPF / FULL / LPF / BP
- Bridgeable outputs to 4 ohm load
- 4 Gauge Power Cable Input Connectors
- Double-sided PCB
- Compatible with any 4/2 ohm speaker
Technical specifications
| RMS output power at 14.4 VDC at 2 Ohms | 4 channels x 500 Watts |
| RMS output power at 14.4 VDC at 4 Ohms | 4 channels x 250 Watts |
| RMS output power at 14.4 VDC bridged | 2 channels x 1000 Watts |
| Power supply input voltage | 12 VDC to 14.8 VDC |
| THD (100 Hz at 1 Ohm) | 0.04% |
| Bandwidth (-3 dB) | 18- 250 Hz |
| Damping factor (1 kHz at 4 Ohms) | 100 |
| Signal to noise ratio (weighted at 1 Volt) | 99 dB |
| Input sensitivity | 0.20 mV – 5 Volts RMS |
| Minimum load impedance | 2 Ohms |
| Entrance | Pre in RCA |
| Stereo crossover filter slope | 12 dB |
| Mono crossover filter slope | 24 dB |
| Channel filter range 1-2 HP | 20 Hz – 250 Hz |
| Channel filter range 3-4 HP | 20 Hz – 250 Hz |
| Channel 3-4 LP/BP filter range | 50 Hz – 250 Hz |
| Selectable bass boost CH 1-2 or 3-4 at 45 Hz | 0 – 6 dB – 12 dB |
