Description
TS-G1020S
| PRODUCT PERFORMANCE | |
|---|---|
|
Continuous Power handling (RMS) – Watts
30W
|
Crossover Frequency
NA
|
|
Frequency Response
35 Hz to 27 kHz
|
Maximum Peak Power Handling – Watts
210W
|
|
Nominal Impedance – Ohm
4-Ohm
|
Sensitivity (1W/1m)
87 dB
|
|
System-Type
Coaxial 2-way,Balance Dome – Tweeter
|
|
| FEATURES | |
|---|---|
|

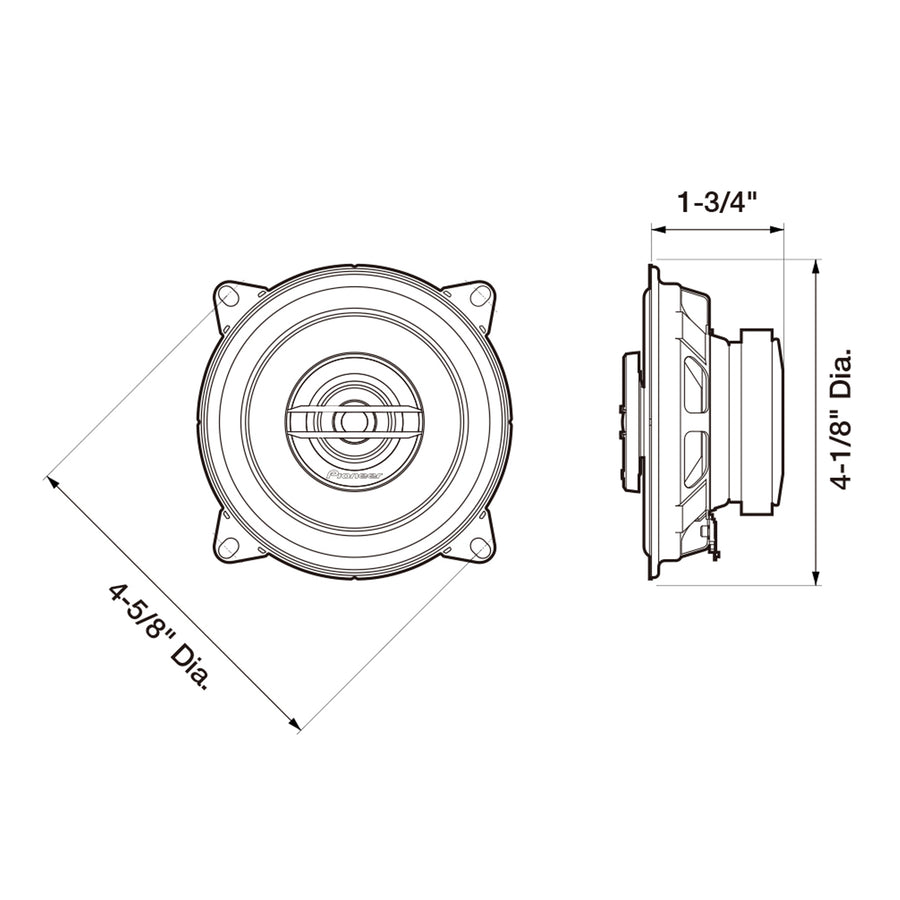

Cut Out dimensions
4-1/8
|
Mounting Depth
1-3/4 – Tweeter
|
|
Speaker Grill
NA
|
Tweeter
30mm
|
| MATERIALS | |
|---|---|
|
Basket Material
Metal
|
Cone Material
IMPP – with MICA
|
|
Damper
Poly cotton
|
Diaphragm Material
Polyethylene terephthalate (PET) – Tweeter
|
|
Magnet Material
Ferrite
|
Magnet Weight
3.9 oz
|
|
Shorting Ring Material
Copper
|
Surround Material
Rubber Coated Cloth
|
|
Surround Type
Rolled
|
Voice Coil Material
Kapton
|
|
Voice Coil wire
Copper
|
Wire Terminals
Lug Type
|
