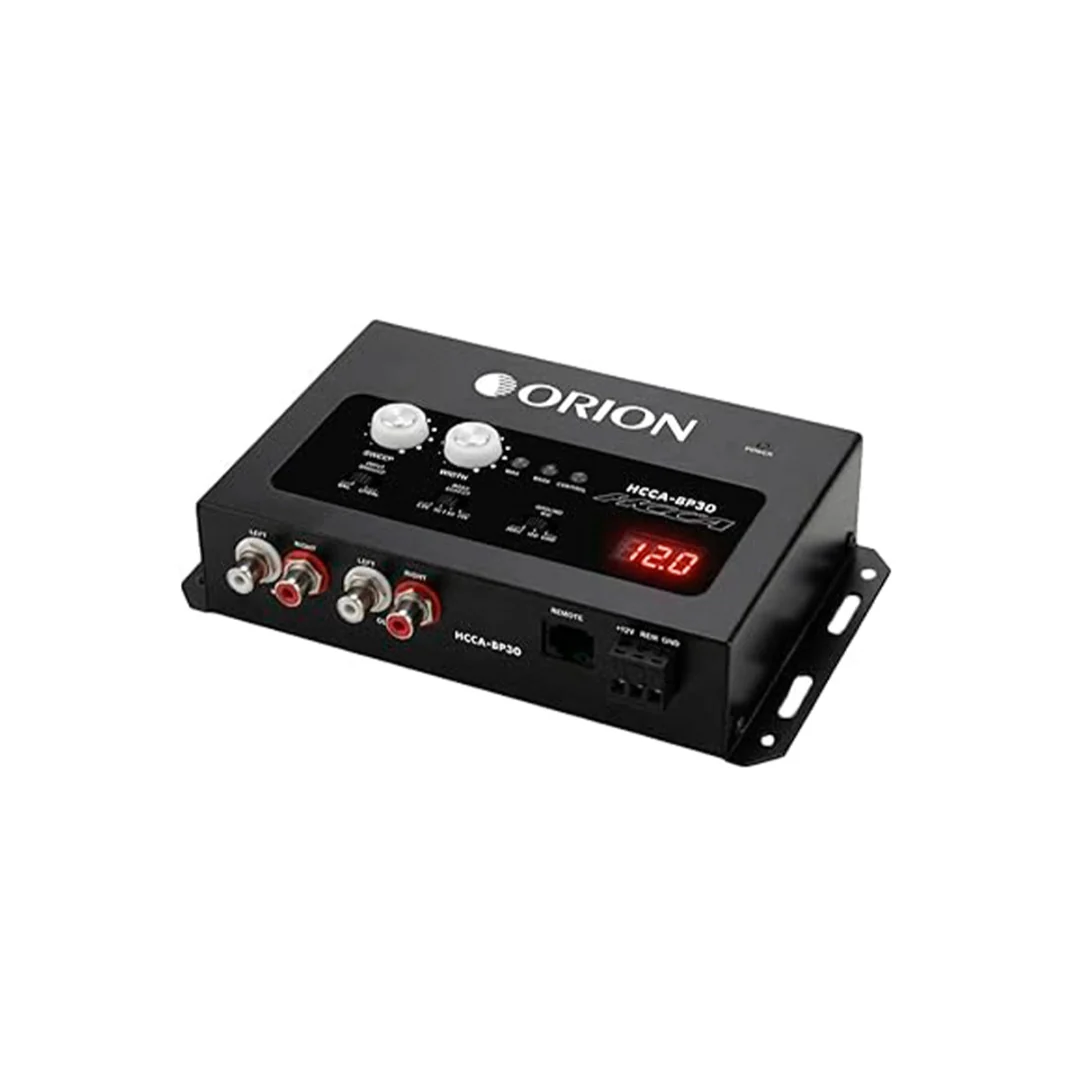

HCCA-BP30 Bass Processor – Powerful and Controlled Low-Frequency Performance
Upgrade your system with the HCCA-BP30 Bass Processor. It delivers strong and controlled low-frequency enhancement for high-performance setups.
As part of Orion’s HCCA lineup, this processor restores lost bass frequencies. As a result, your subwoofer produces deeper and harder-hitting bass. In addition, it improves accuracy and control.
Precision Bass Tuning
The HCCA-BP30 gives you full control over your bass response. Therefore, you can fine-tune your system with precision.
You can adjust:
-
Sweep control to set the frequency center
-
Width control to adjust the bandwidth
Because of this, you can target specific bass ranges. You can choose deep extension or tight, punchy bass.
High-Voltage Output Performance
The processor includes selectable output levels of 2.5V, 5V, 7.5V, and 10V. As a result, it works with standard amplifiers and high-power systems.
Moreover, it maintains clean performance with ultra-low distortion and high signal clarity. Your bass stays powerful even at high volume levels.
Advanced System Integration

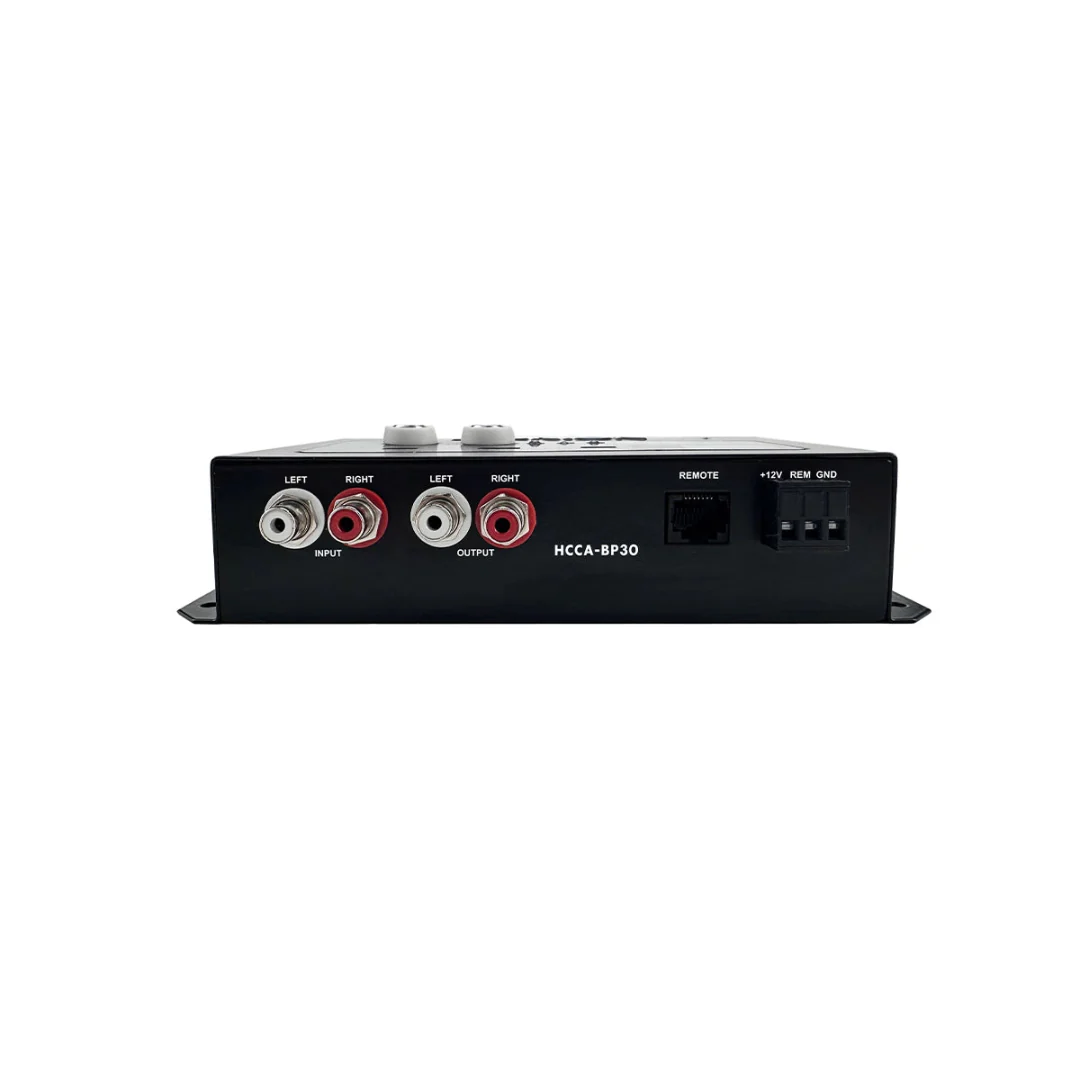

The HCCA-BP30 is built for advanced installations. It supports both balanced and unbalanced inputs.
In addition, it includes ground isolation control and a built-in voltage display. Therefore, you can monitor system performance in real time.
Built for Serious Audio Systems
Whether you upgrade a factory system or build a competition setup, the HCCA-BP30 delivers reliable results.
KEY FEATURES
- HCCA High Performance Bass Processor: Designed for high-power car audio systems, delivering deep, controlled bass enhancement for subwoofer setups.
- Bass Restoration Technology: Recovers low-frequency information lost in compressed or factory audio signals to restore full bass impact.
- Sweep Frequency Control: Adjusts the center frequency of the bass enhancement to target the exact bass range you want to emphasize.
- Width Bandwidth Control: Allows tuning of the bass restoration range for wide deep bass response or tighter, punchier bass.
- Selectable High Voltage Output: Choose between 2.5V, 5V, 7.5V, or 10V output levels to match your amplifier’s input sensitivity and maximize signal strength.
- Voltage Meter Display: Built-in voltage display allows real-time monitoring of your system’s operating voltage.
- Balanced / Unbalanced Input Selection: Ensures compatibility with both factory radios and aftermarket head units.
- Ground Isolation Control: Helps eliminate alternator noise and system interference using selectable grounding modes.

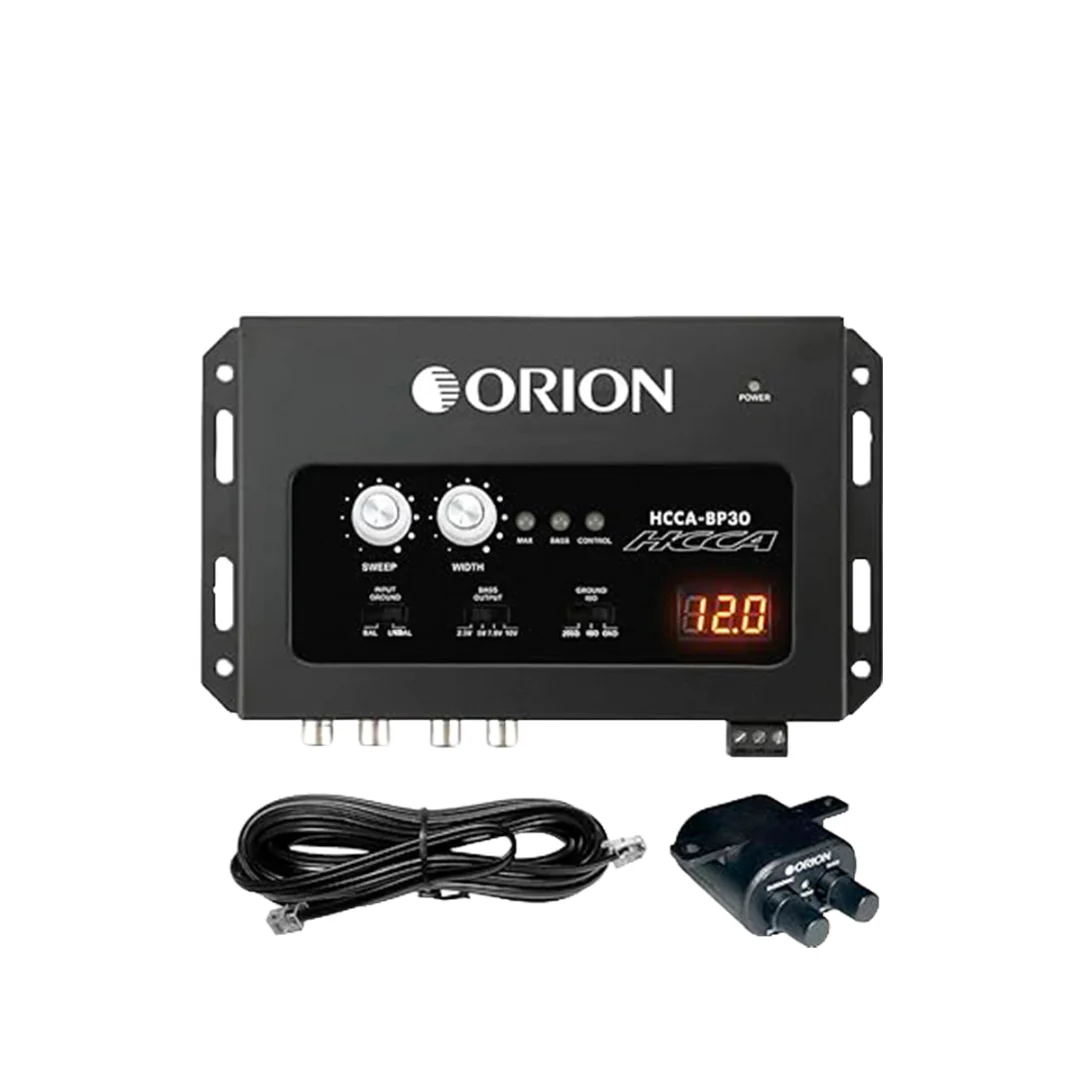

- Remote Bass Control Support: Allows real-time bass adjustment from the driver’s seat using the included remote bass knob.
- Competition-Level Signal Performance: High signal-to-noise ratio and ultra-low distortion ensure clean bass output even in high-power systems.
SPECIFICATIONS
- Power Supply: 6.5V – 18V
- Maximum Input Level: 10V
- Maximum Output Level: 10.5V
- Input Sensitivity: 10.5V
- Input Impedance: >50K Ohms
- Output Impedance: 100 Ohms
- EQ Boost / Cut: 15 dB
- Signal-to-Noise Ratio: >110 dB
- THD @ 2V Output: <0.02%
- Channel Separation: >80 dB
- CMRR: -63 dB Balanced / -29 dB Unbalanced
- Frequency Response: 10 Hz – 30 kHz
- Subsonic Filter: 31 Hz – 71 Hz
- Current Draw: 210 mA
- Interchannel Gain Tracking: 0.1 dB
- Fuse Rating: 1A
- Dimensions: 7.28” x 4.13” x 1.54”
