Description
WDX10G0.4

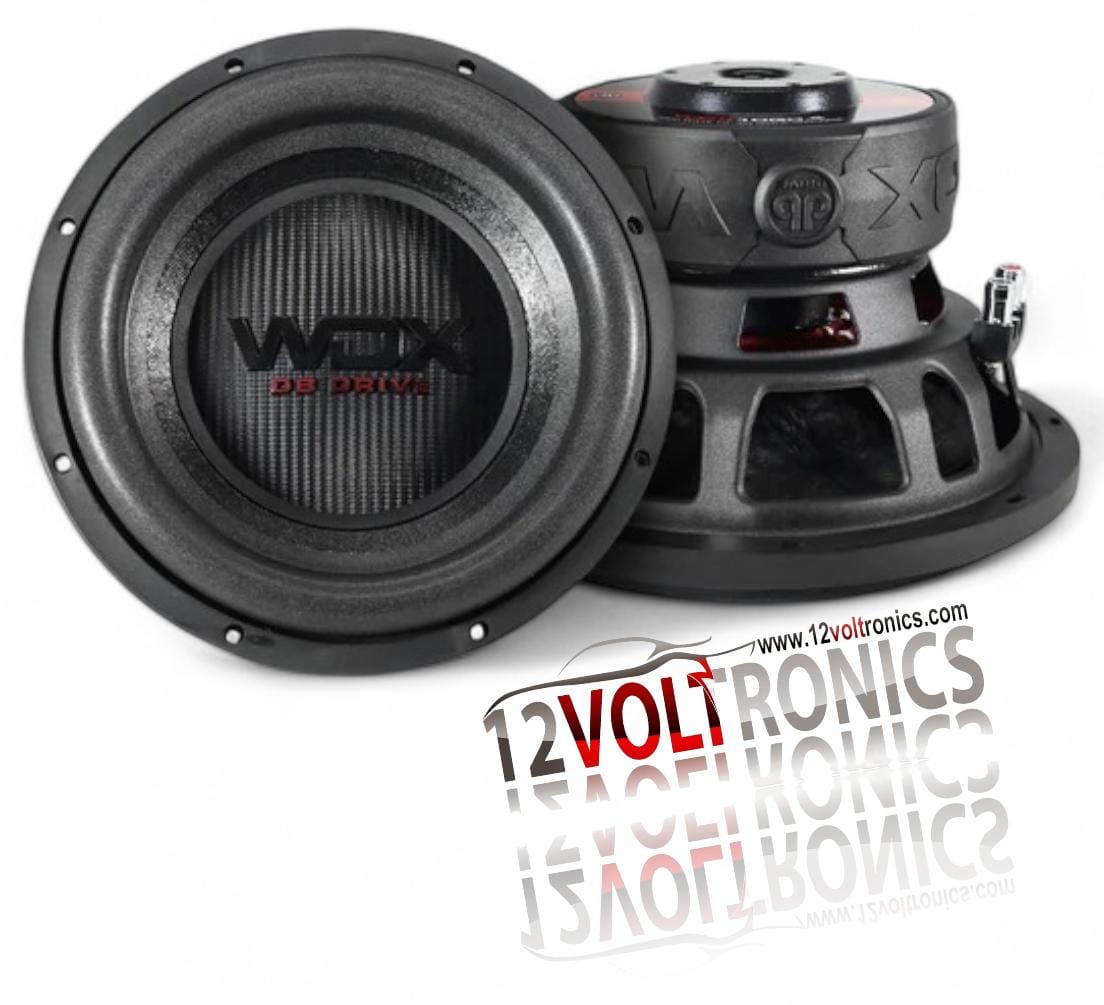

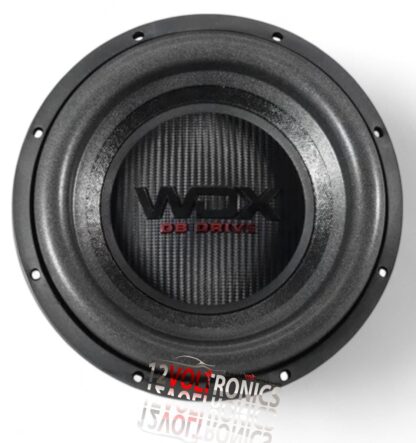

Get ready to feel the thunder. The engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance. The DB Drive WDX10G0.4 isn’t just a subwoofer—it’s a force of low-frequency domination designed to shake your ride and ignite your sound system. Built for serious bass lovers, this 10″ powerhouse combines brute strength with precision engineering to deliver earth-moving performance you can feel in your chest.
A high-temperature voice coil and reinforced paper cone work together to handle extreme power while maintaining tight, punchy response. The double-stitched foam surround and dual poly-cotton dampeners keep everything controlled, even when you’re pushing it to the limit. Housed in a vented stamped cast steel basket with a sleek rubber gasket trim ring, the WDX10G0.4 is built tough and ready for war.
With a massive 1000 watts of max power and dual 4-ohm voice coils, this sub gives you the flexibility to dial in your system exactly how you want it. Large-gauge compression terminals ensure a solid connection, while the protective magnet cover adds durability and style.
From deep, rolling lows to hard-hitting bass drops, the DB Drive WDX10G0.4 delivers nonstop impact. Turn it up. Lock it in. Feel every beat with DB Drive.
- 2.5″ BASV High Temperature Voice coil
- Non-Pressed paper cone
- Double stitched foam surround
- Dual poly-cotton dampeners

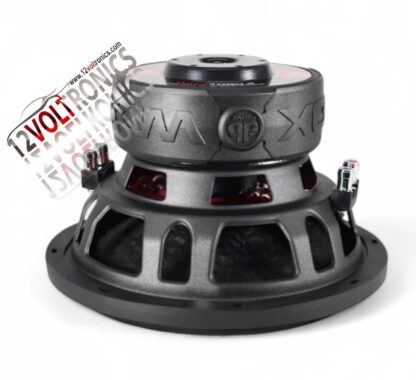

- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large gauge compression terminals
- Protective magnet cover

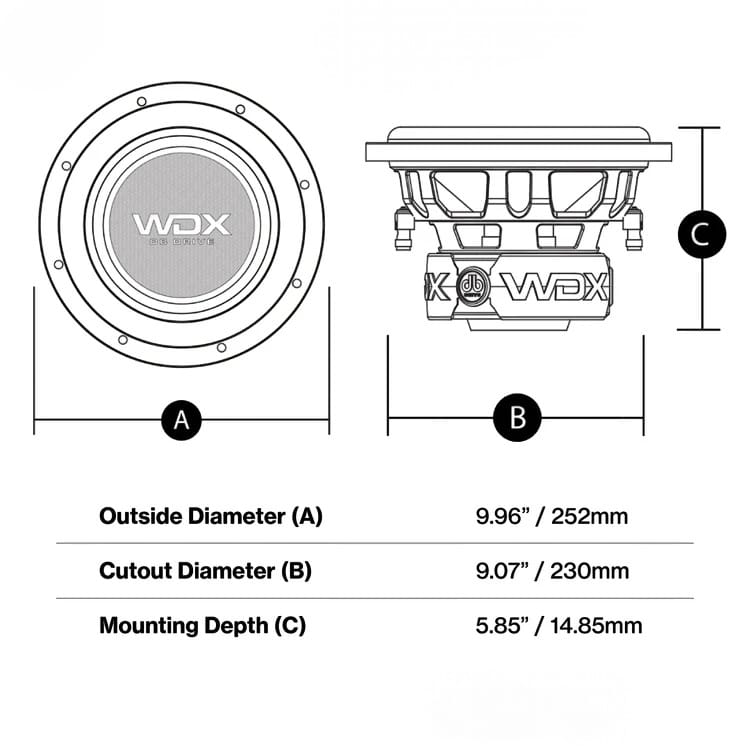

PHYSICAL STRUCTURE
| Outside Diameter (A) | 9.96″ (252mm) |
| Cutout Diameter (B) | 9.07″ (230mm) |
| Mounting Depth (C) | 5.85″ (14.85mm) |
GENERAL SPECIFICATIONS |
|
|---|---|
| Structure | 10″ (25.4cm) Woofer |
| Dynamic Power Handling | 1000 Watts |
| Nominal Power Handling | 500 Watts |
| Impedance | Dual 4Ω Voice Coil |
PARAMETERS |
|
|---|---|
| Resonant Frequency (fs) | 38.074Hz |
| D.C. Voice Coil Resistance (Re) | 3.4 x 2Ω |
| Mechanical Quality Factor (Qms) | 2.370 |
| Electrical Quality Factor (Qes) | 0.580 |
| Total Quality Factor (Qts) | 0.466 |
| Equivalent Air Volume to Cms (Vas) | 18.768L |
| Mass of Diaphragm/Coil (Mms) | 174.262 g |
| Force Factor (Bl) | 11.051 |
| Sound Pressure Level (SPL) | 84.4 dB |
WIRING CONFIGURATION
You can change the wiring configuration of your speakers (Series, Parallel and Series / Parallel) to match the impedance loads that maximizes the power output of you amplifier. Wiring the same woofer or multiple woofers in these three different wiring configurations will result in different impedance loads.
Series: Is the method of wiring of alternate positive with negative terminals (string method)
Parallel: Is the method of wiring where you wire match 2 speaker terminals with positive to positive terminal and negative to negative.
Series/Parallel: This configuration is a combination of both series and parallel. We recommend series for the terminal and parallel for the leads to amp.
