Description

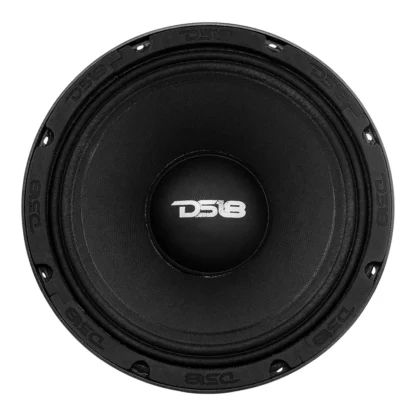

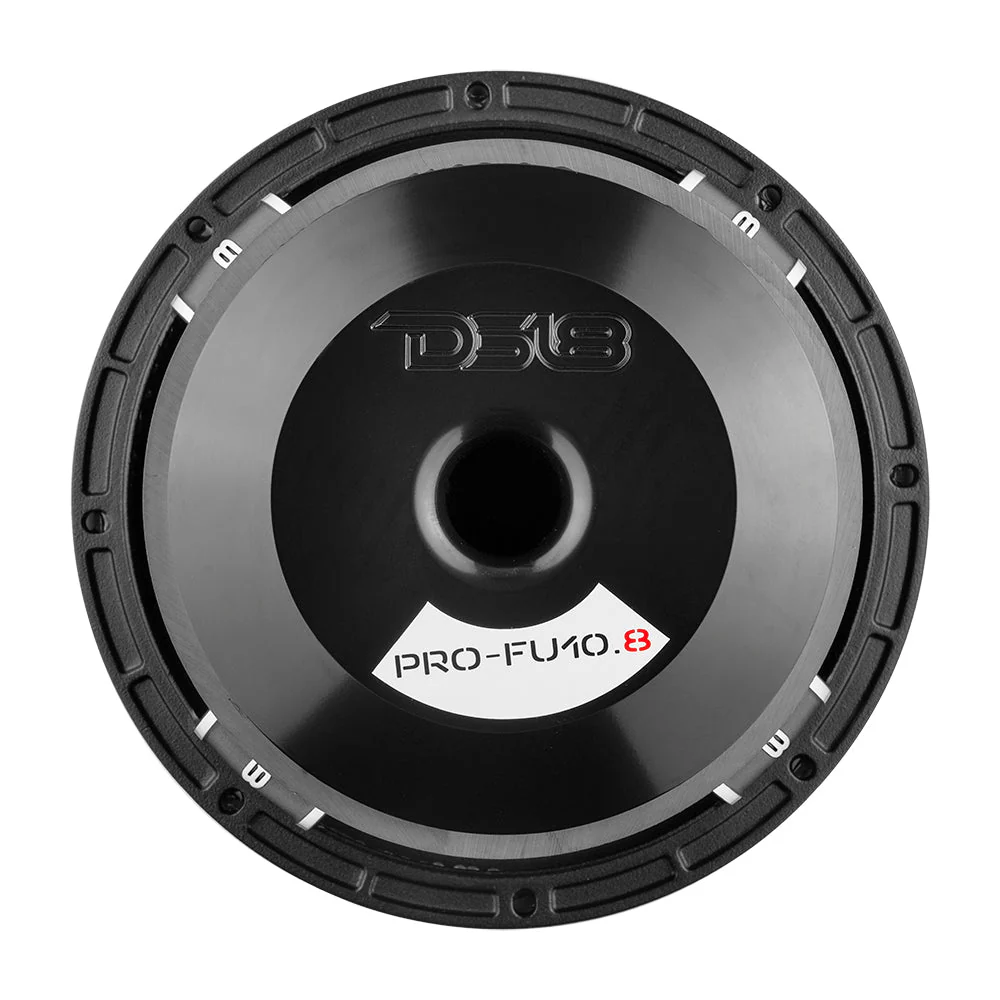

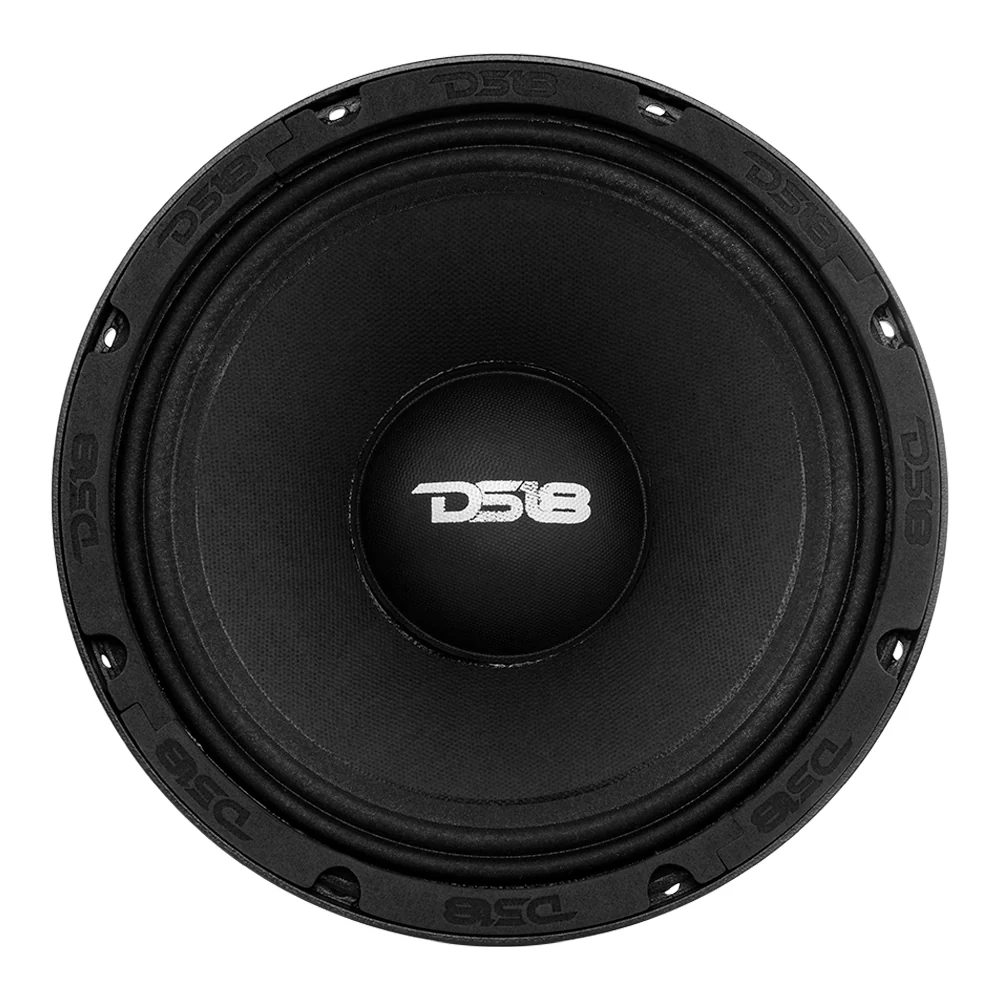

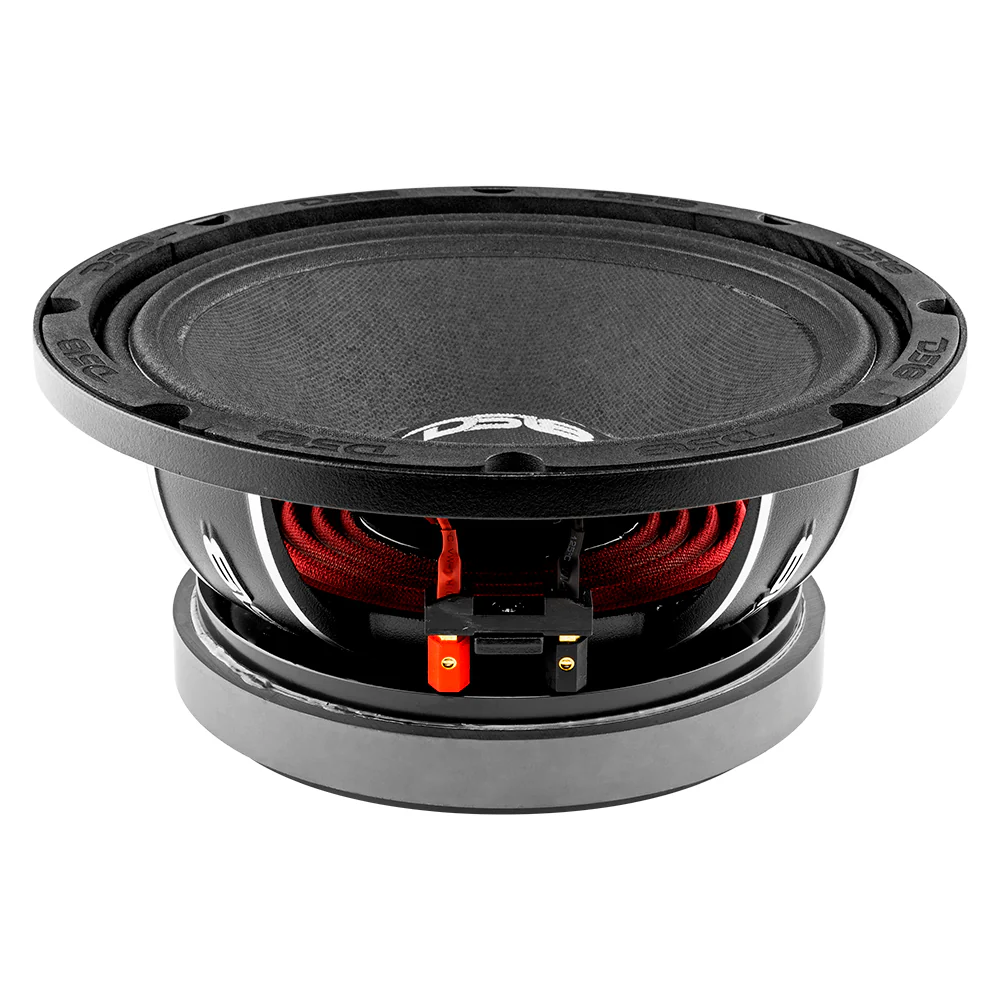

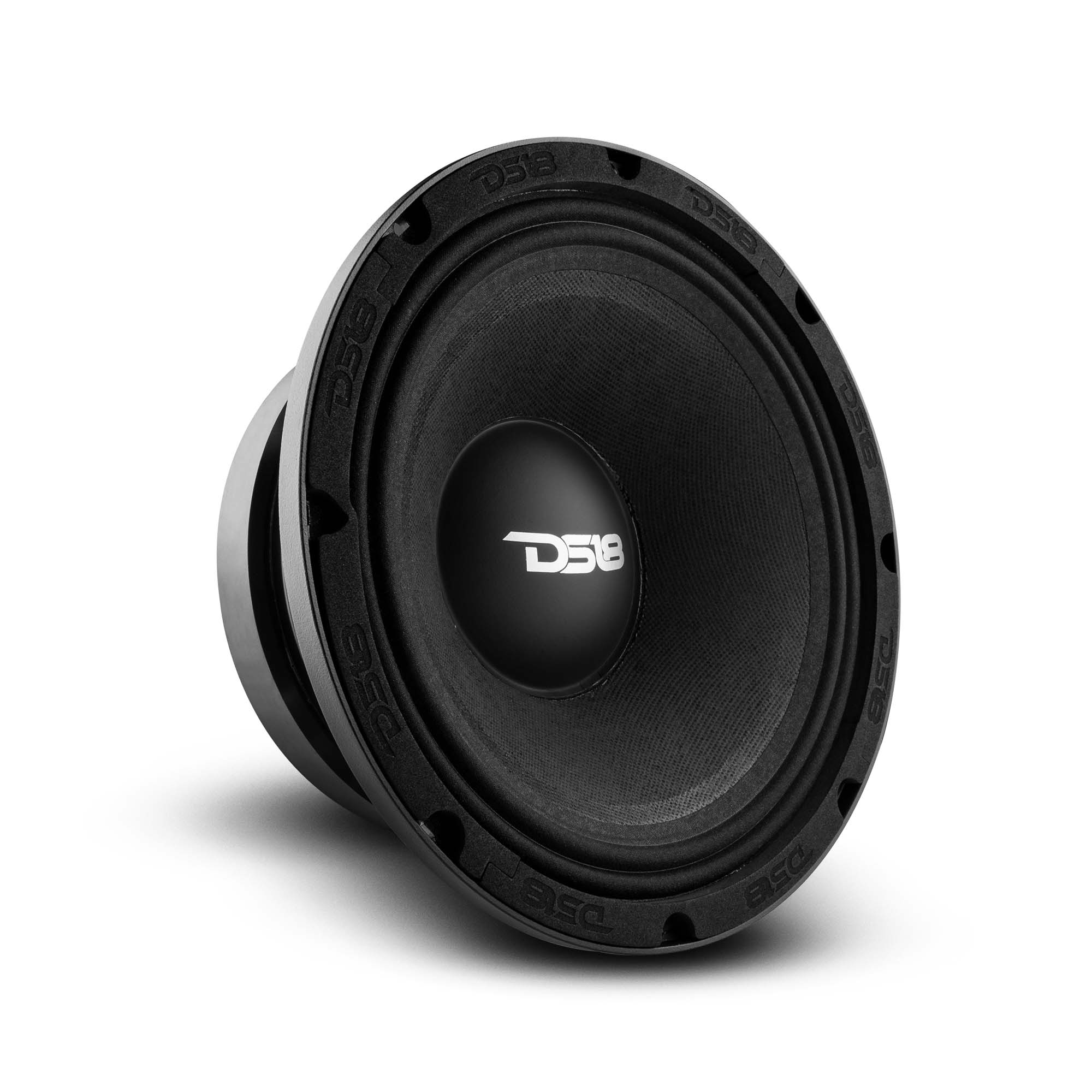

DS18 PRO-FU10.8
8″ Mid-Range Loudspeaker 400 Watts RMS 8-Ohm
DS18 has once again raised the volume with the launch of the PRO-FU10.8! This latest addition to the DS18 family is designed to deliver maximum musical precision and volume with extreme efficiency and reliability. The high-quality parts and exceptional construction utilized in the design of the PRO-FU10.8 is sure to exceed your expectations.
Engineered to perfection, the PRO-FU10.8 boasts a whopping 800W MAX power handling and 400W RMS power handling; providing unparalleled musical precision and volume with extreme efficiency and reliability.
Designed to deliver screaming vocals and excellent mid-range sound, the PRO-FU10.8 is the perfect choice for any pro audio enthusiast. The tooled black stealth basket ensures both great looks and superior construction, while the massive ferrite motors house high-powered pro audio voice coils for the greatest efficiency to power ratio possible.
The PRO-FU10.8 is a high-quality mid-range speaker that offers exceptional musical precision and clarity, thanks to its sensitivity of 96dB and a frequency response of 88Hz-6KHz.
But that’s not all – The PRO-FU10.8 comes with a 8-ohm impedance, , which reduces overall power consumption and heat generated by your system. In addition to the 8-ohm configuration, the PRO-FU 10″ Mid-Range Loudspeaker is also available in an 4-ohm configuration.
Whether you’re a professional musician, DJ, or audiophile, the PRO-FU10.8 is the perfect choice for taking your sound to the next level.
- 10″ Mid-Range
- MAX Power: 800 Watts
- RMS Power: 400 Watts
- Impedance: 8-ohm
- Ferrite Magnet
- Aluminum Basket

TECHNICAL DATA
SPECS:
SKU- PRO-FU10.8
Nominal Diameter- 10”
Nominal Impedance- 8 Ohms
RMS Power Handing- 400W
Maximum Power Handing- 800W
Sensitivity (1w/1m)- 96dB
Frequency Response-88Hz-6KHz
Recommended Hi Pass Crossover- 120Hz
Voice Coil Diameter- 3″ / 76.2mm
Voice Coil Former Material- Fiber Glass
Winding Material- CCA
Basket Material- Aluminum
Magnet Weight- 82 oz
THIELE & SMALL PARAMETERS:
Vas- 15.783L
Xmax- 5mm
Fs- 86.7Hz
Qms- 6.339
Qes- 0.474
Qts- 0.441
Re- 5.2 ohm
MEASUREMENTS:
Overall Diameter-10.35″ / 263mm
Front Mount Baffle Cutout-9.05″ / 230mm
Mounting Depth- 4.4″ / 112mm
Overall Depth- 4.92″ / 125mm
Product Weight- 17.5 lbs
Product Dimensions-11.5 x 11.5 x 4
