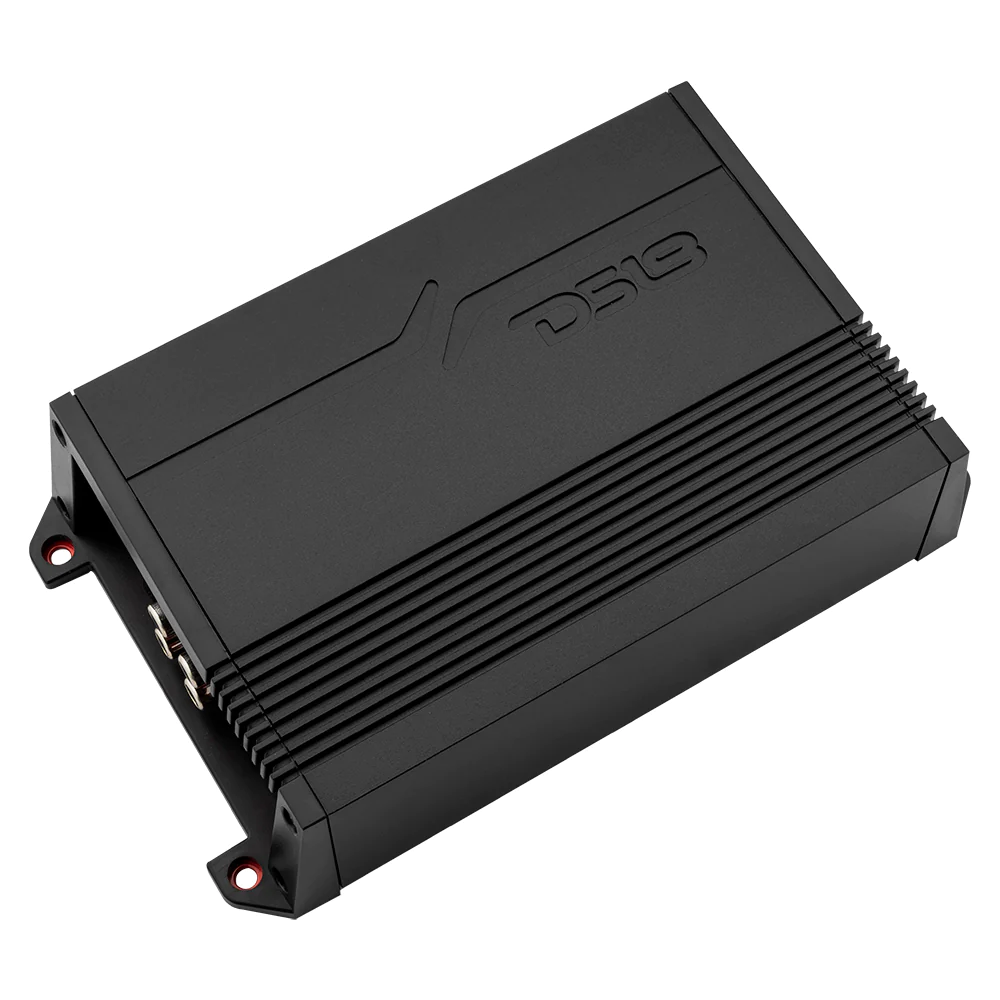

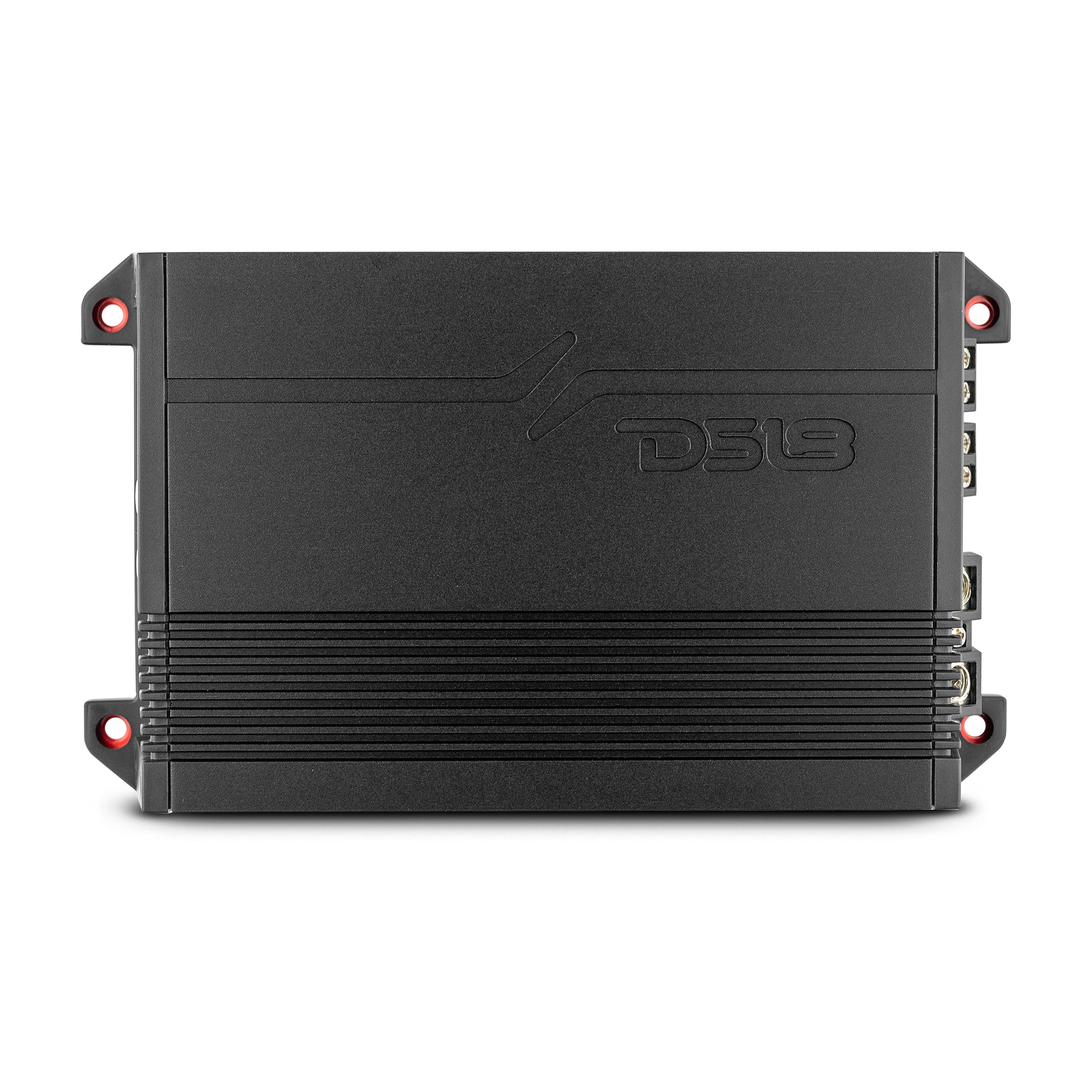

DS18 GEN-X Full-Range Class D 4-Channel Amplifier 4 x 90 Watts Rms @ 4-ohm-G1000.4D

The G1000.4D is engineered to elevate your system to unprecedented levels, daring you to create the system of your dreams.
Rest easy knowing that the G1000.4D’s stable and reliable Class D circuit design has undergone rigorous sound quality verification using AP Instruments. We have designed the G Series to deliver nothing short of professional-grade sound reproduction.

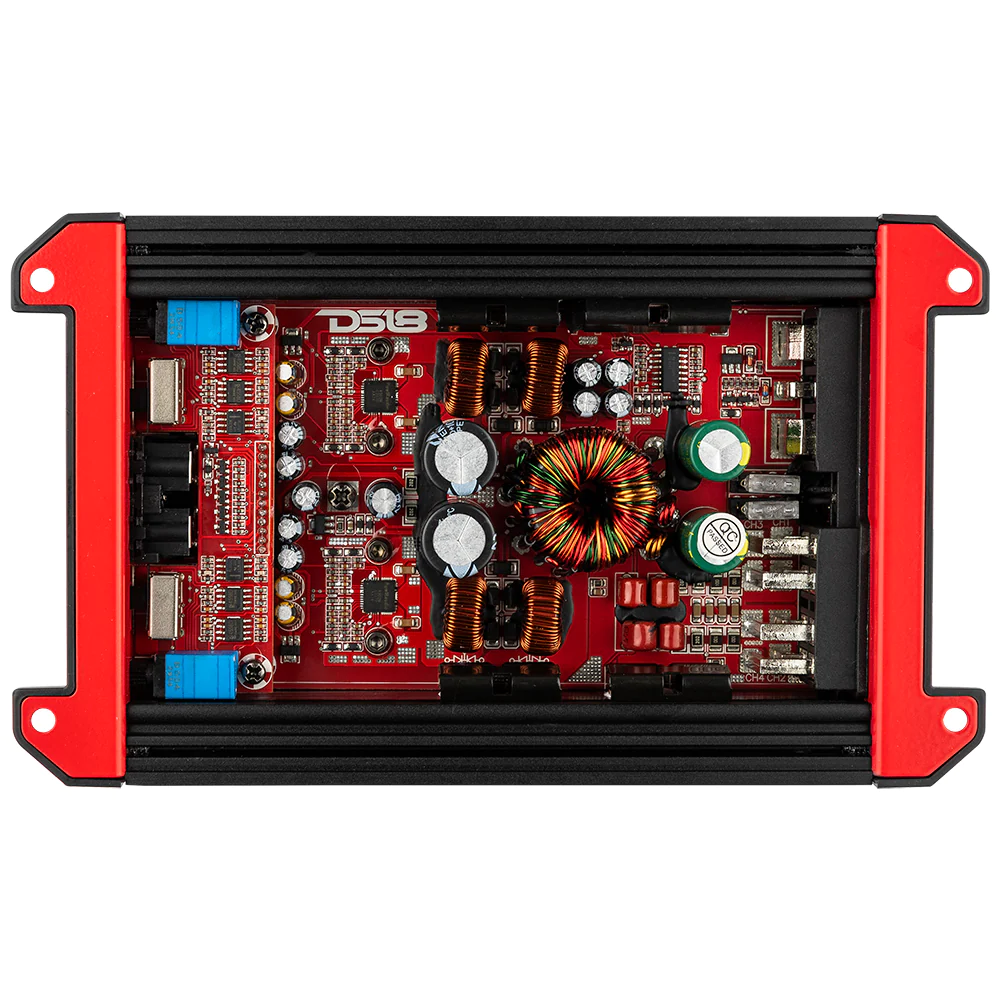

Tune your frequencies just the way you like them with fully adjustable High Pass, Low Pass, and Full Filters, offering you unprecedented control over your audio experience. With surface mount component technology, this amplifier also gives you control in customizing the placement and design of your build. The G1000.4D also features High-Level Input Compatibility, allowing for direct signaling to your radio unit, ensuring seamless integration into any setup.
With power output settings of 300W x 2 CH bridged at 4-ohms, 150W x 4 CH at 2-ohms, and 90W x 4 CH at 4-ohms, the G1000.4D delivers the perfect balance of power and finesse, supercharging any custom build with ease.
Safeguard your equipment effectively with the G1000.4D’s Protection, Clipping, and Power Indicator LED’s. Stay informed and in control as these indicators alert you when your amplifier approaches its limit, protecting your investment and guaranteeing a long-lasting audio experience. The G1000.4D also features a host of advanced protective features, including short circuit, thermal, and voltage protection, ensuring the safety and longevity of your investment.
Designed for the competitor and enthusiast, the G1000.4D delivers unrivaled power, precision, and efficiency, propelling your build to unprecedented heights.

TECHNICAL DATA

SPECS

SKU- G1000.4D
Total Watts (Peak)- 1000W
RMS Power @ 4 Ohm- 4 x 90W
RMS Power @ 2 Ohm- 4 x 150W
RMS Power @ 4 Ohm Bridge- 2 x 300W

AUDIO

Frequency Response- 20Hz-20Khz
Signal to Noise Ratio- >90dB
Efficiency @ 4 Ohm- 0.92
Damping Factor- 78
Input Impedance- 22K
Channel Separation- 55 dB
Total Harmonic Distortion (THD)- 0.01%
Low Level Input Range- 0.25 – 6 V
High Level Input- Yes

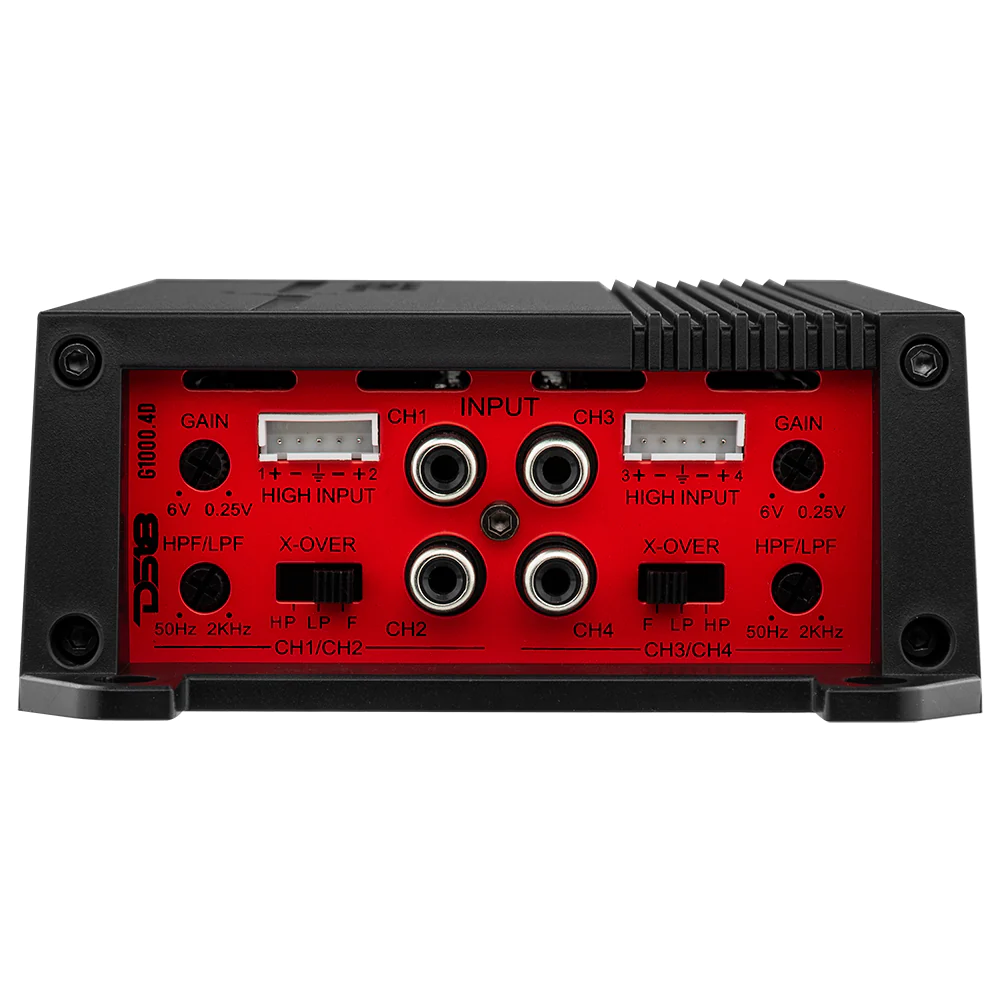

Selectable X-over- LPF/FLAT/HPF
X-over Filter Range- 50Hz-2KHz

FEATURES

Amplifier Class- Digital (D)
Amplifier Type- 4 CH Full Range
Number Of Channels- 4 CH
Minimum Impedance- 2 Ohm St / 4 Ohm Bridge
Led Indicator- Power | Protection | Clip

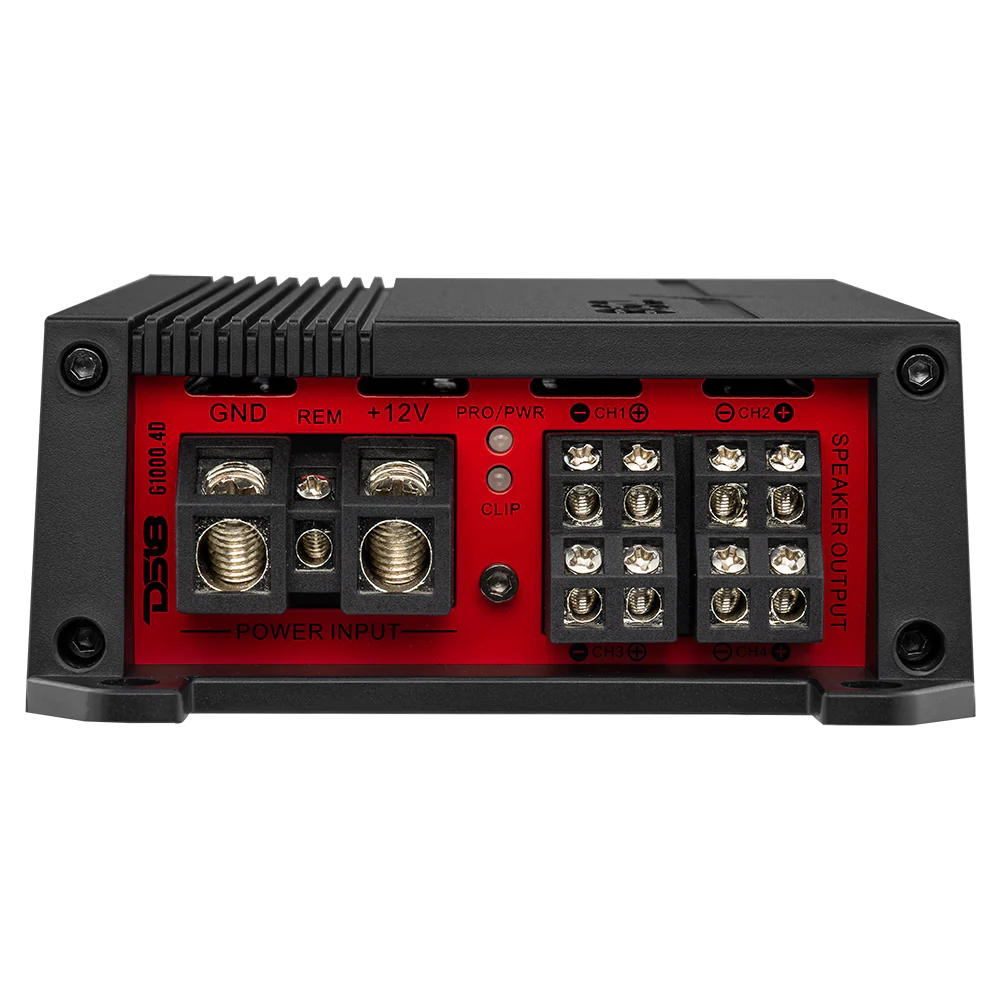

Power Input Terminal Size- 4 GA
Fuse Size- 2 X 25A
Thermal Protection- Yes
Over-Load Protection- Yes
Dc Output Protection- Yes
Short Circuit Output Protection- Yes
Voltage Input Protection- Yes
Clipping Protection- Yes
Body Color | Finish- Matte Black

MEASUREMENT

Overall Length- 8.1″ / 205mm
Overall Wide- 4.72″ / 120 mm
Overall Height- 1.96″ / 50 mm
Heatsink Length- 6.2″ / 158 mm
Gross Single Unit Weight- 1.2 Kg
