Description

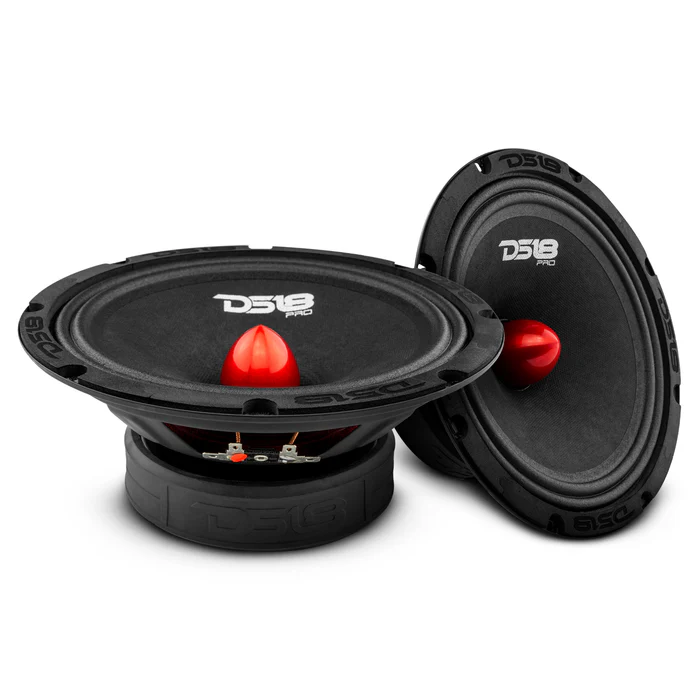

PRO-GM8B
Elevate your audio experience with the DS18 PRO-GM8B 8″ Mid-Range Speaker. Boasting 580W MAX and 190W RMS power, these speakers ensure faithful sound reproduction in the midrange region. The robust ferrite magnet, pressed paper cone, and CCA voice coils contribute to durable construction, allowing for maximum volume without compromising audio excellence. The 1.5″ Kapton voice coil wire enhances performance and durability. With an 8-Ohm impedance, 95dB sensitivity, and 3.22″ mounting depth, these speakers seamlessly integrate into your vehicle, delivering a powerful punch and capturing every nuance with astonishing accuracy.
Features:
- 580W MAX / 190W RMS Power Handling
- Exceptional Midrange Performance
- Durable Construction with Ferrite Magnet and Pressed Paper Cone
- 1.5″ Kapton Voice Coil Wire for Enhanced Performance
- Seamless Integration with 8-Ohm Impedance
SPECIFICATIONS:
- Nominal Diameter: 8″
- Nominal Impedance: 8 Ohms
- RMS Power Handling: 190 Watts
- Max Power Handling: 580 Watts
- Sensitivity (1w/1m): 95 dB
- Frequency Response: 125Hz ~ 12kHz
- Recommended Hi Pass Crossover: 140Hz
- Voice Coil Diameter: 1.5″
- Voice Coil Former Material: Kapton
- Winding Material: KCCAW
- Cone Material: Paper
- Bullet Material: Aluminum
- Surround Material: Cloth
- Basket Material: Steel
- Magnet Material: Ferrite
- Magnet Weight: 30 Oz
- Equivalent Volume: Vas – 16.23L
- Free Air Resonance: Fs – 89 Hz
- Mechanical Factor: Qms – 9.26
- Electrical Factor: Qes – 0.791
- Total Factor: Qts – 0.728
- DC Resistance: Re – 6.5 Ohms
MEASUREMENTS:
Overall Diameter: 8.23″
Overall Depth: 3.39″
Front Mount Baffle Cutout: 7.17″
Mounting Depth: 3.11″
Motor Diameter: 4.72″
