Description
The DS18 H-KO2 amplifier is a high-performance, Korean-made powerhouse that’s perfect for bassheads who demand the best performance from their car audio system. With a maximum power output that’s actually underrated, the H-KO2 is capable of driving even the most demanding subwoofers with ease. And thanks to its advanced Class-D technology, it operates efficiently and generates less heat than traditional amplifiers, ensuring consistent performance over long periods of use.
In addition to its impressive power output, the H-KO2 also includes several useful features that help you monitor its performance and ensure that your system is running optimally. The built-in volt meter allows you to monitor the voltage of your car’s electrical system, while the temperature meter monitors the internal temperature of the amplifier. And with the clip indicator, you can avoid damaging your subwoofers and ensure that your music sounds as clean and clear as possible.
But the H-KO2 isn’t just about power and features – it’s also designed to be easy to install and use. Its compact and durable aluminum chassis can withstand the rigors of daily use, and it includes all the necessary mounting hardware for a secure installation. And with its customizable features, such as the variable low-pass filter, you can fine-tune the frequency response to match your specific subwoofers and enclosure, ensuring that they’re performing at their best.
Overall, the DS18 H-KO2 amplifier is a top-of-the-line amplifier that’s built to deliver outstanding performance and reliability. Whether you’re a seasoned basshead or just looking to upgrade your car audio system, the H-KO2 is the perfect choice for those who demand the best.
Highlights:
- Tiffany style RCA jacks for a clean prestigious look.
- Stable from 11-16v so it can accommodate all kinds of charging systems.
- Built in Volt meter, clip light, and over load protection circuitry.

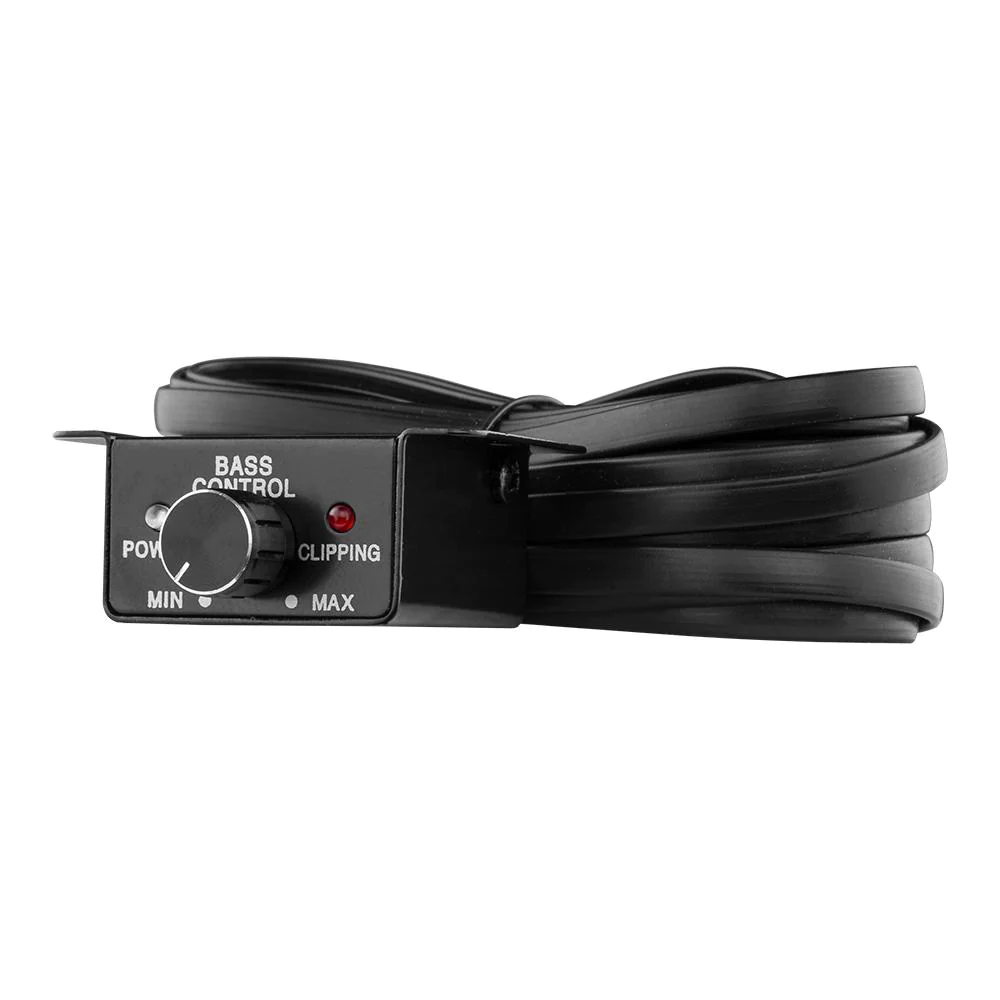

- Included Bass knob for easy on the fly bass adjustments.
- Powerful circuitry to provide the highest efficiency while pushing loads of power.
- Beefy design yet versatile enough to fit multiple large amps in a small space.
KEY FEATURES:
TECHNICAL DATA:
SPECS
SKU
H-KO2
RMS Power @ 1 ohm
2000W
RMS Power @ 2 ohm
1500W
RMS Power @ 4 ohm
950W
Frequency Response
13-300Hz
Signal to Noise Ratio
>80dB
Efficiency @ 4 Ohms
95%
Damping Factor
400
Total Harmonic Distortion (THD)
Less than 0.2%
Low Level Input Range
0.2-6V
SPECS
Selectable X-Over
Fixed LPF
X-Over Filter Range
35-250Hz
Bass Boost Range
0-9dB
Bass Boost Frequency
45Hz
Infrasonic Filter
10-50Hz
Phase
0-180°
Power Input Terminal Size
0GA x 1
Fuse Size
180A
CIRCUIT
Protection
Thermal, Over-Load, DC, Short Circuit and Voltage and Clipping
DIMENSIONS
Width
9.68″ – 246mm
Length
9.44″ – 240mm
Height
2.85″ – 72.5mm
