Description

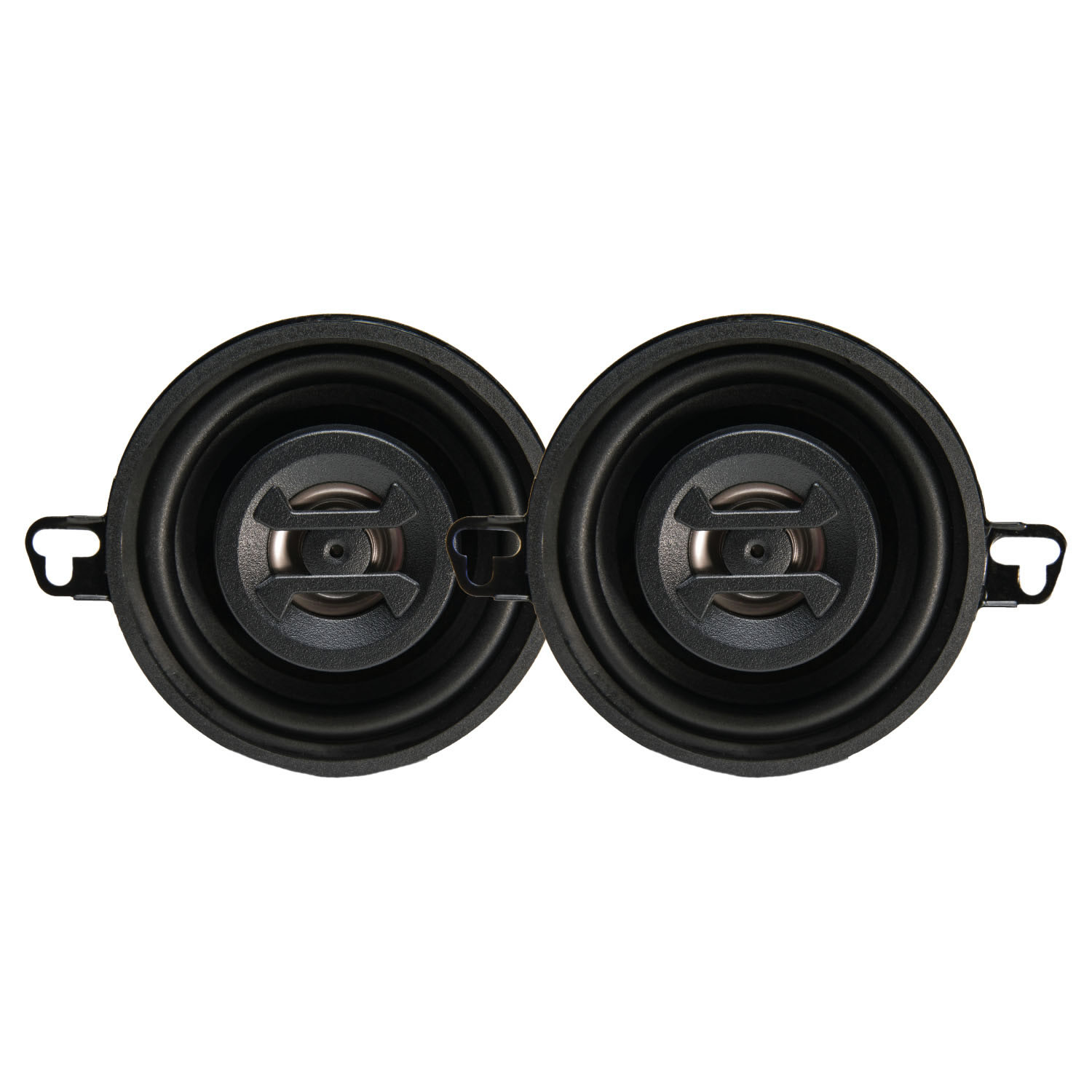

Hifonics ZS35CX ZEUS 3.5 inch 2-way car audio coaxial speaker system with Mylar dome tweeter and Alpha-Cellulose Poly Woofer Cones nylon surrounds (pair). (No Grills)
| Type | Speaker |
|---|---|
| Brand | Hifonics |
| Series | ZEUS |
| Category | Mobile |
| Condition | New |
| Color | Black |
| Warranty | 1 Year |
| CEA Standards | CEA426B |
| Compatible Vehicles | Universal |
| Speaker RMS Power Handling (watts) | 25 |
| Speaker Peak Power Handling (watts) | 125 |
| Speaker Impedance (ohms) | 4 |
| Speaker Frequency Response | 80Hz-20kHz |
| Speaker Sensitivity | 88dB |
| Speaker Crossover Slope | 6kHz 12dB |
| Speaker Mounting Diameter / Cut Out (in) | 3.41 |
| Speaker Outside Diameter (in) | 3.41 (No Grill) |
| Speaker Mounting Depth / Chassis Depth (in) | 1.5 |
| Speaker Size (in) | 3.5 |

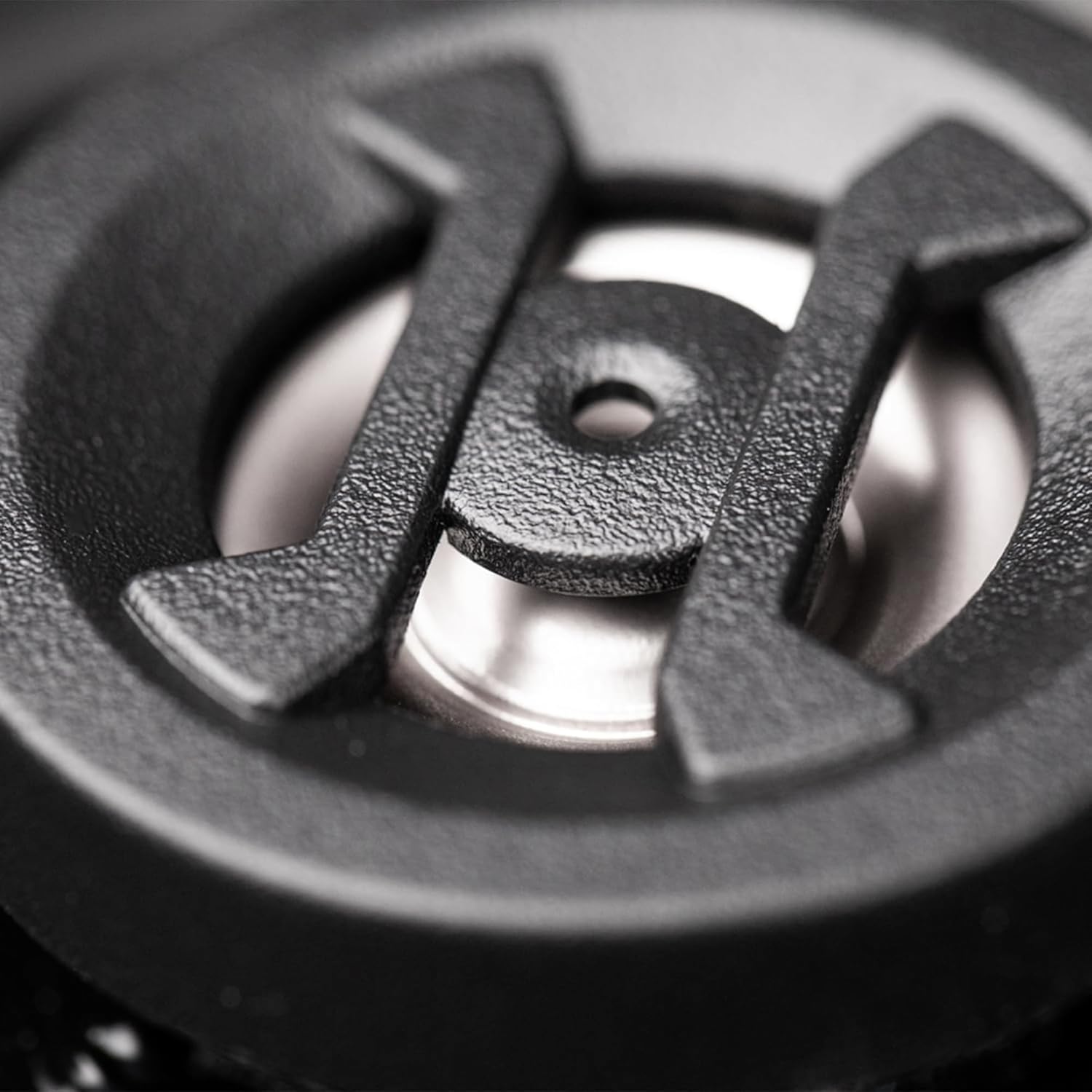

| Tweeters | 1 inch: Clear highs while handling plenty of power without sound harsh. Neo-Mylar Soft Dome Tweeter: Impact Resistant Tweeter Elements, Great sound quality and increased reliability. Kapton: Lightweight and efficiently dissipates heat. |
|---|---|
| Cone Material | Alpha-Cellulose Cones: Light weight for speed and very rigid for deep bass. |
| Surround / Cone Coupling | Rubber: Moisture Resistant Rubber Surround with high Mid-Bass Impact. High Temperature Adhesive: Special adhesive is chosen to create a permanent bond between the cone and the surround. |
| Voice Coil / Former Assembly | Pure Copper: Creates strong magnetic field with a very thin extrusion. Kapton: Lightweight and efficiently dissipates heat. |

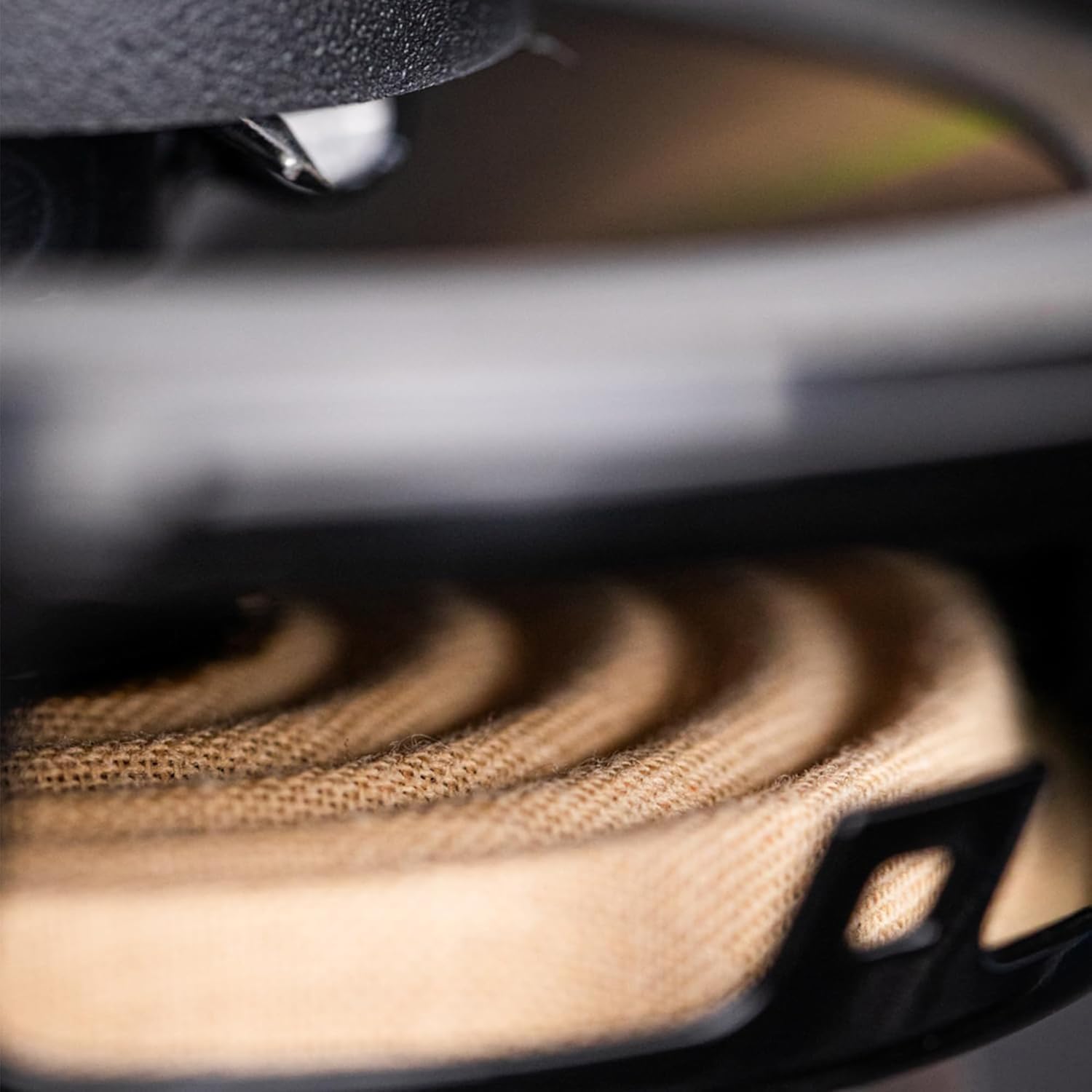

| Spider | Epoxy infused Natural Fiber: Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process. |
| Cooling System | Overcoil: Air is exchanged over the voice coil through the spider. |
| Crossover | Passive Butterworth: Smooth transition of frequencies from midrange/midbass to the tweeter element. |
| Frame | Anti-Resonant Stamped Steel Basket: Very strong with minimal harmonics or distortions from flex or ringing. |
| Motor | Ferrite Magnet: Creates a strong magnetic field while remaining small enough to fit nearly every application. |
| Connectors | Spade: Use spade connectors or solder direct for the best connection. |
| Grills | No: These speakers are typically installed behind an OEM panel. |
