Description
Full-HD-Dashcam featuring Integrated GPS, Built-in Wi-Fi, Full HD recording, 3-Axis G-Force Sensor and Smartphone Linkage
KV-DR305W
Image Sensor
Type- 1/2.7 Color CMOS sensor
Lens
- Aperture
- F2
View Angle
Horizontal : 98 degree, Vertical : 52 degree, Diagonal : 114degree

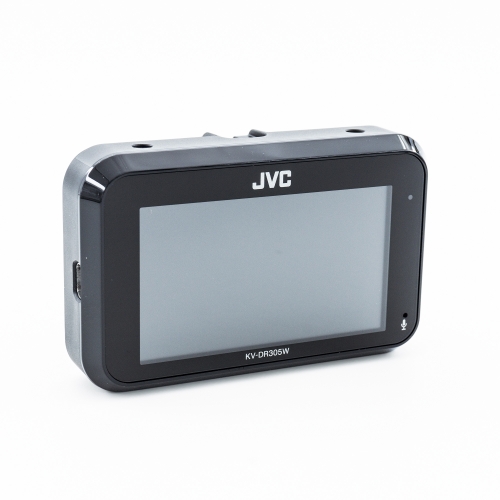

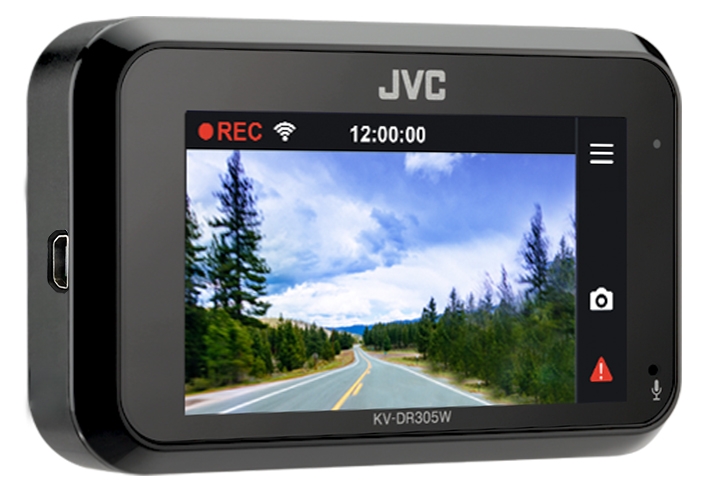

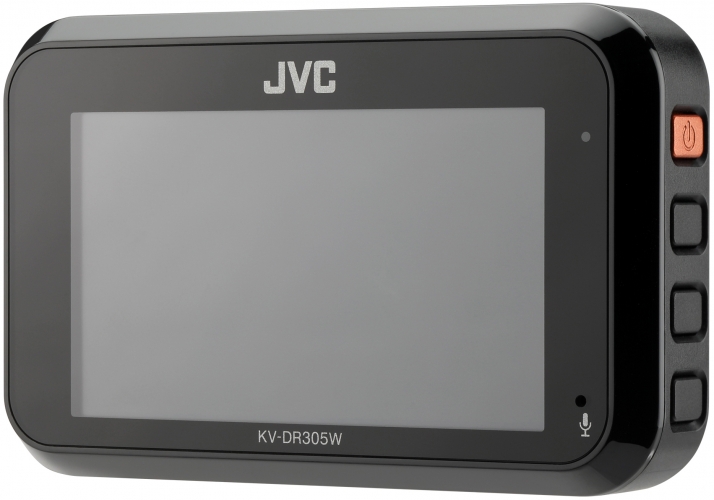

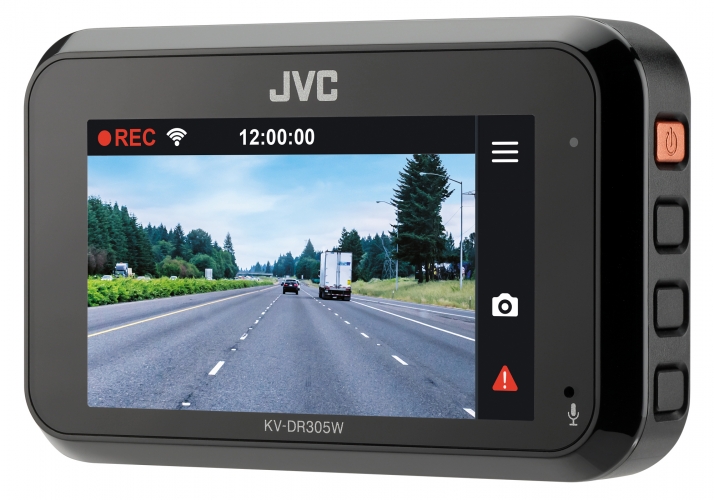

Monitor
Type- Color
Size- 2.7 inches color TFT
Memory
- External- Yes
- Number of Slots- 1
- External Memory Type

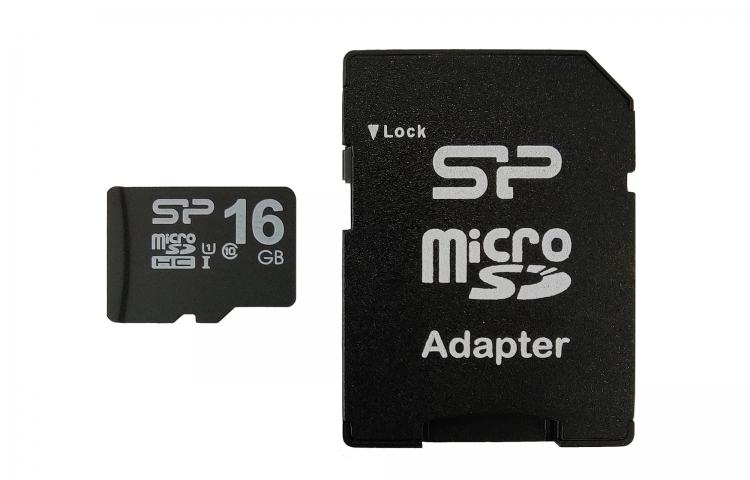

- microSDHC card 4GB to 32GB (Class 10 or above)
File Format
- Video
- H.264 (MP4)
- Photo
- JPEG (Max. 1920 x 1080)
Resolution
- Video Resolution
- 1920 x 1080 Full HD (Max. 2.0M)
- Frame Rate
- 30fps
- Photo Resolution
- 2M Pixels (1920 x 1080)
Recording Mode
- Recording preservation timing
- Continuous / Event
- Video crip length
- 1 / 3 / 5 min.
WiFi
- Type
- Built-in
General
- G-Sensor
- Built-in
- Collision sensitivity
- 0.5G to 3G (0.5G step)
- Operating voltage
- DC 5.0V
- Current consumption
- 480mA (Max. 1A)
- USB port
- mini USB-B type

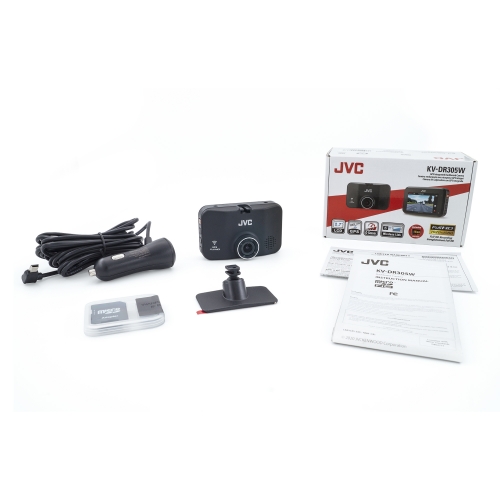

- Accessories

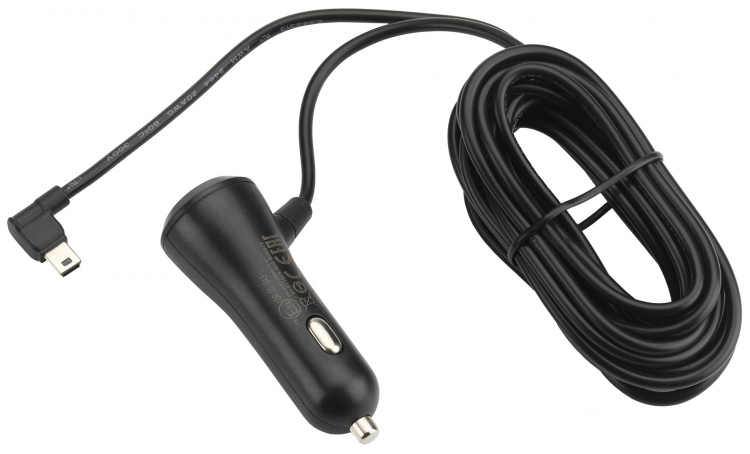

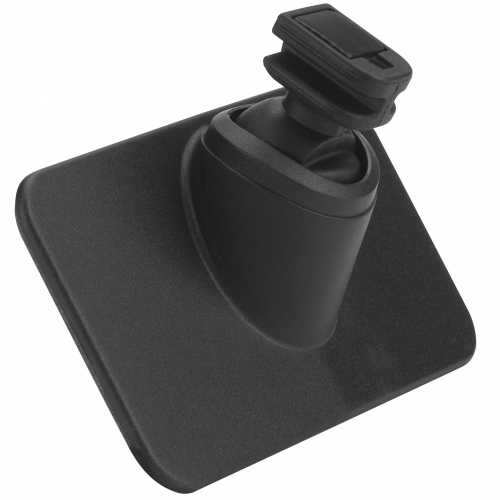

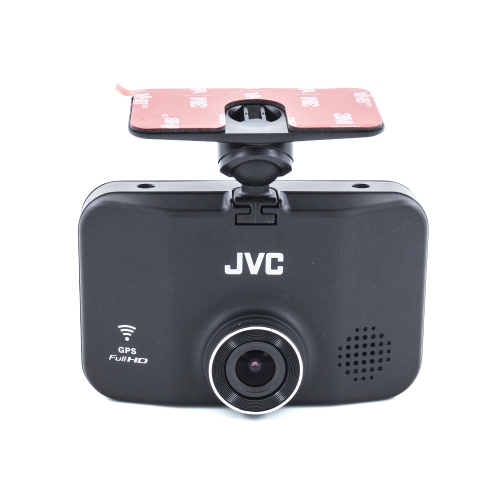

- Car charger cord (11-1/2″) x 1, Mounting bracket (double-sided tape) x 1
Weight – Dimensions
- Dimensions Dashcam
- 3-1/4″ x 2-1/16″ x 1-1/4″ (83mm x 52mm x 32mm)
- Weight Dashcam
- 3.1oz (87g)
Built-in WDR to Respond to Sudden Brightness Changes
The built-in WDR (Wide Dynamic Range) helps to reduce headlight glare or shadows that may occur in high contrast situations, such as in a backlit environment, or near the entrance or exit of a tunnel.
Smartphone Linkage via Wi-Fi
Simply install the “JVC DVR Link” app on your smartphone and you’ll be able to connect the KV-DR305W to your smartphone via Wi-Fi. A variety of operations can be controlled easily from your smartphone. Available functions include “Preview” to view streamed images while recording on your smartphone, still image recording, downloading of recorded data to your smartphone, and controlling various settings of the KV-DR305W.
Event Recording Compatible
The KV-DR305W offers three recording modes to accommodate various situations. 1: “Continuous Recording*” to automatically record and stop in conjunction with the engine ON/OFF, 2: “Manual Recording” to start recording anytime you want and save it as data that cannot be overwritten, and 3: “Event Recording” to automatically start recording when a sudden impact or a sudden speed change is detected by the “G-Force sensor”.
G-Force Sensor for Automatic Shock Detection
The G-Force Sensor is built-in to detect impact to the vehicle body. Its 3-axis sensor is able to detect sudden movements from three directions: front/back, left/right, and top/bottom.
The KV-DR305W is also equipped with a GPS system that measures your vehicle’s location information such as speed, latitude, and longitude. The driving record can be displayed on the dedicated PC linked software.

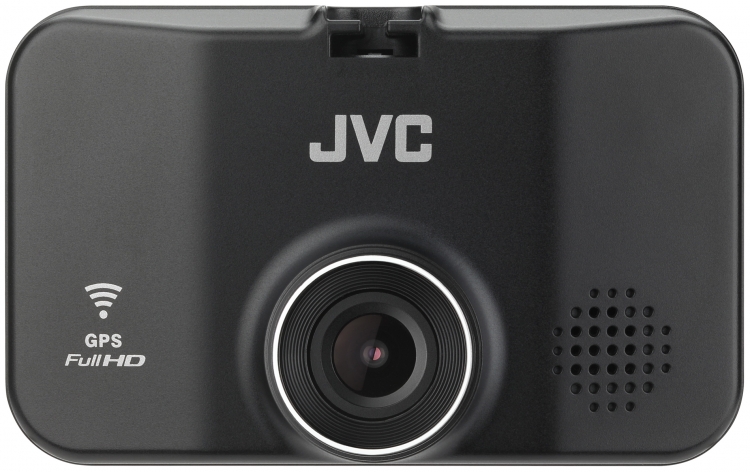

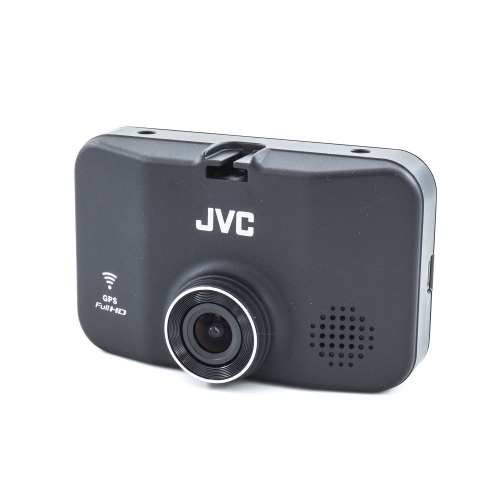

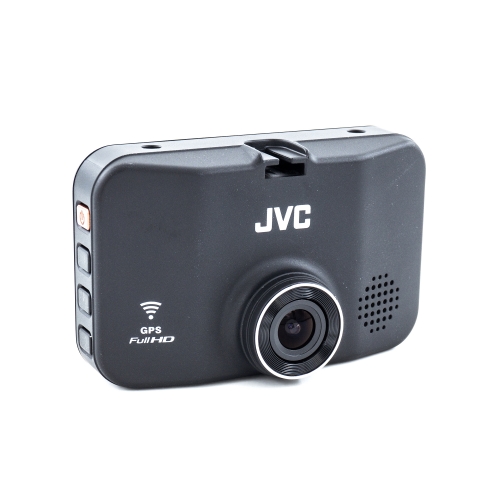

F2.0 Wide Angle Lens
The KV-DR305W features a wide angle lens of 114°. With a secured wide-angle view, you can judge the occurrence of an accident more objectively. The F2.0 lens performance assures precise, high-quality images.
