Description

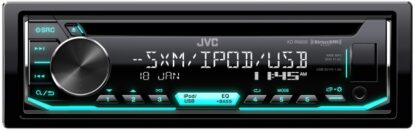

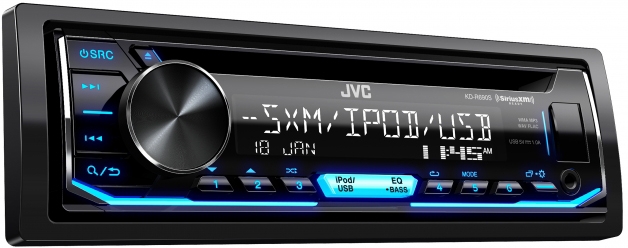

Display
2-Line VA LCD Display
Equipped with VA (Vertical Alignment) LCD panels that offer a broader angle of view and better visibility. The 2-line display provides more information with animation effects.
Variable-Color Illumination
You can choose illumination colors from one of 49 presets or customize your own color by adjusting the intensity of RGB (Red, Green, and Blue).
Spanish Text Display Compatible
On-screen display menu now available in Spanish.
Sound Optimization
15-Preset EQ including “drvn EQ”
Preset EQ patterns are selectable from 15 types including ”drvn EQ” that is designed to maximize the performance of JVC drvn Series amplifiers and speakers, as well as producing dynamic sound for any speaker.
Internet Radio/Digital Radio
Ready for SiriusXM Radio (optional SiriusXM tuner required, sold separately)
Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
Media Playback
FLAC Compatible with Tag
Compatible with FLAC format which allows digital audio to be losslessly compressed, so that file size is reduced without any information being sacrificed. Also compatible with playback of 16bit / 48kHz FLAC format.
Smartphone Integration
Android™ Music Playback via USB
(AUTO MODE/AUDIO MODE)
Simply connect your Android smartphone or tablet to the receiver via USB and enjoy a totally “plug and play” music playback solution. The Android Open Accessory Protocol (AOA2) is supported so absolutely no preparation or set-up is necessary – just plug it in and it’s ready to play audio files stored on your Android device in what’s called “AUDIO MODE”. Or, by installing the free JVC Music Play app* available on Google Play, you’ll be able to access “AUTO MODE” for added functionality including Folder Up & Down, and Search Artist/Album/Song.
For more information, visit www.jvc.net/car/app/jmp/
Technical Specifications
-
KD-R690S
Display
- Display Type
- 2-Line VA LCD Display
- LCD Color
- White
- Key Color
- Variable Color
- Spanish Text Display Compatible
- Yes
- Auto Dimmer
- Yes
- Brightness Control
- Yes
Media Playback
- MP3 Compatible with Tag
- CD / USB
- WMA Compatible with Tag
- CD / USB
- WAV Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB ( Up to 48kHz/16bit )
Android Control
- Android Music Playback
- Yes (AUDIO MODE & AUTO MODE)[1]
iPod/iPhone Control
- iPod/iPhone Music Playback
- Yes (via USB)
USB
- Position
- Front
- USB Power Supply
- Yes (1A)
- Drive Change Mode for Mass Storage Class
- Yes

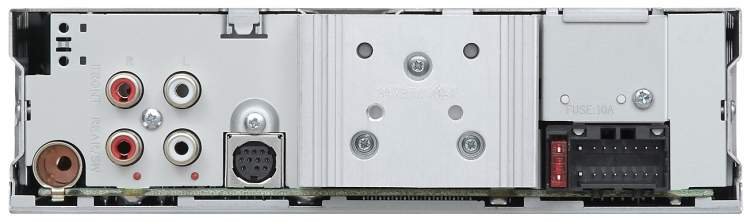

Inputs and Outputs
- AUX Input
- 1 (Front)
- Line Output Terminals (Pair)
- 2 Pairs (Front + Rear/Subwoofer Selectable)
- Pre-Output Level
- 2.5V
- Subwoofer Output with Level/Frequency Control
- Yes (Level -8 – +8)
- Subwoofer Output Level
- 2.5V
Tuner
- SiriusXM Ready
- Yes
- Radio Data Broadcast System (RBDS)
- Yes
- Preset Stations
- 18FM + 6AM
- Strong Station Memory (for FM)
- Yes
- Radio Timer
- Yes (Once/Daily/Weekly)
- Tuner Preset Memory (for power disconnection)
- Yes
- FM
- Frequency Range (Frequency Step)
- 87.9 – 107.9MHz (200kHz)
- AM
- Frequency Range (Frequency Step)
- 530 – 1,700kHz (10kHz)
Audio
- Maximum Power Output
- 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
- Full Bandwidth Power (at less than 1%THD)
- 22W x 4
- Subwoofer Direct Connection (Mono Lch)
- Yes
- EQ
- Yes (3-Band Parametric EQ)
- Preset EQ
- Yes (15-Preset)
- Bass Boost
- Yes
- Loudness Control
- Yes (Off/Low/High)
- High-Pass Filter/Low-Pass Filter
- – /Yes
General
- Detachable Face Panel
- Yes
- Steering Remote Control Ready
- Yes
- Dimensions (W x H x D)
- Installation Size
- 7-3/16″ x 2-1/8″ x 6-1/4″ (182 x 53 x 158mm)
- Weight
- 2.65 lbs. (1.2kg)
- Unit weight in individual package
- 3.09 lbs. (1.4kg)
[1]Android (Ver 4.1 and above) AUTO MODE requires JVC Music Play Application.
