Description

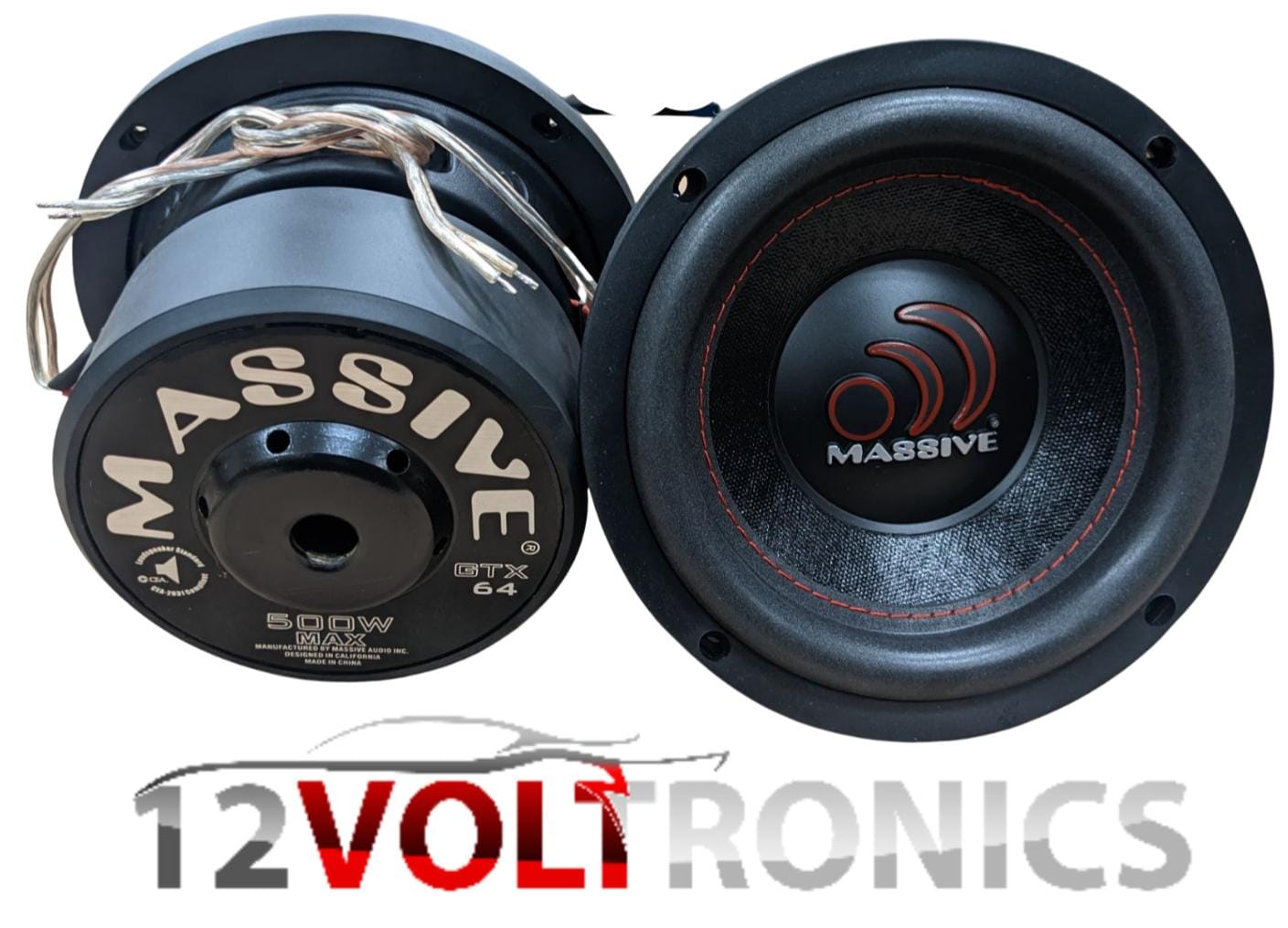

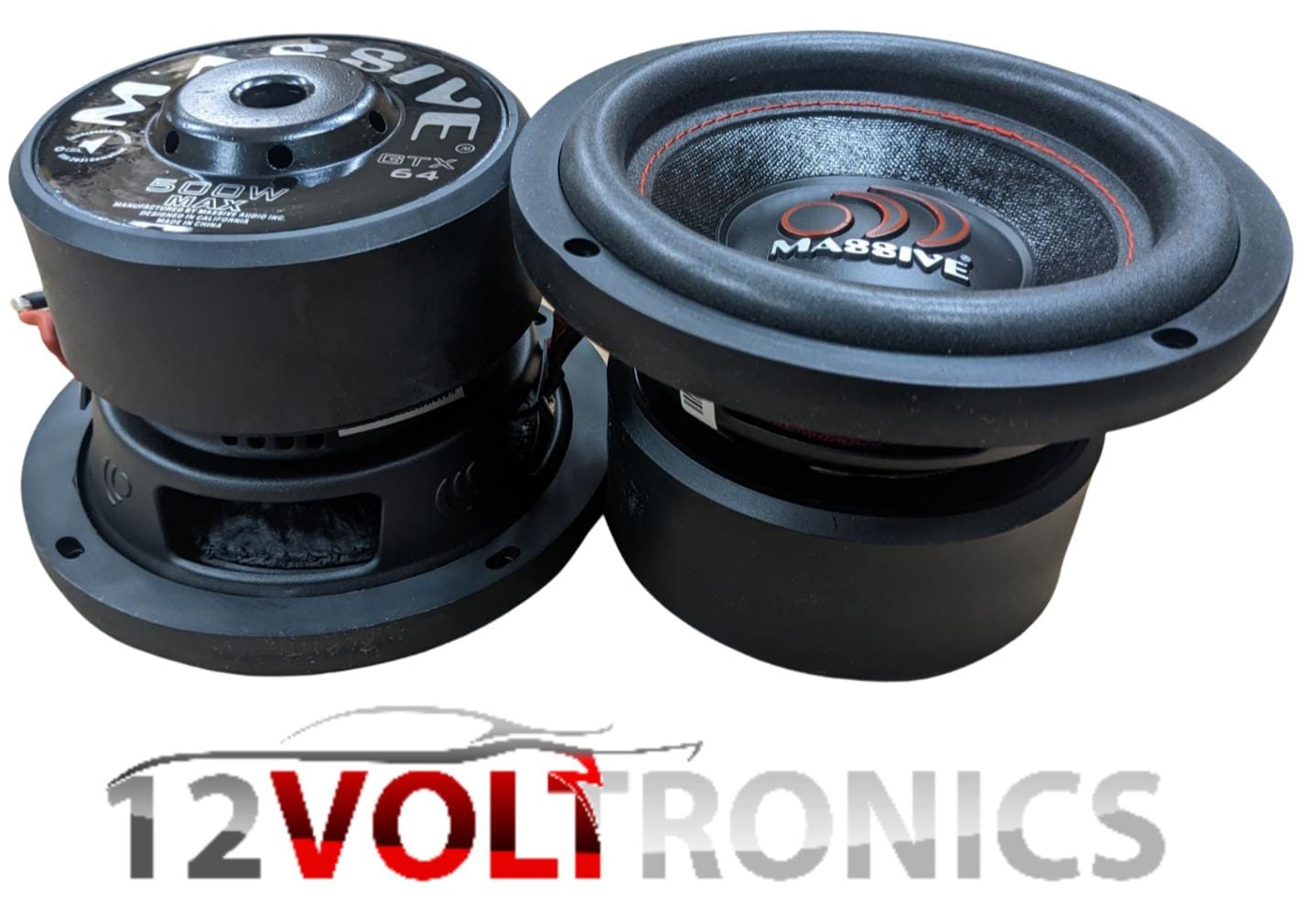

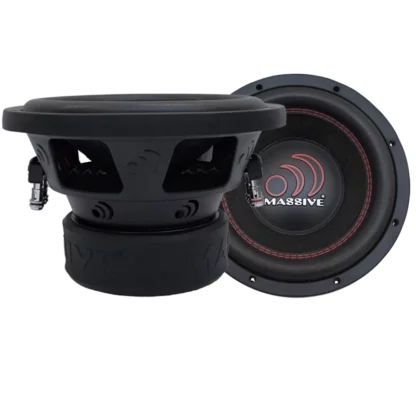

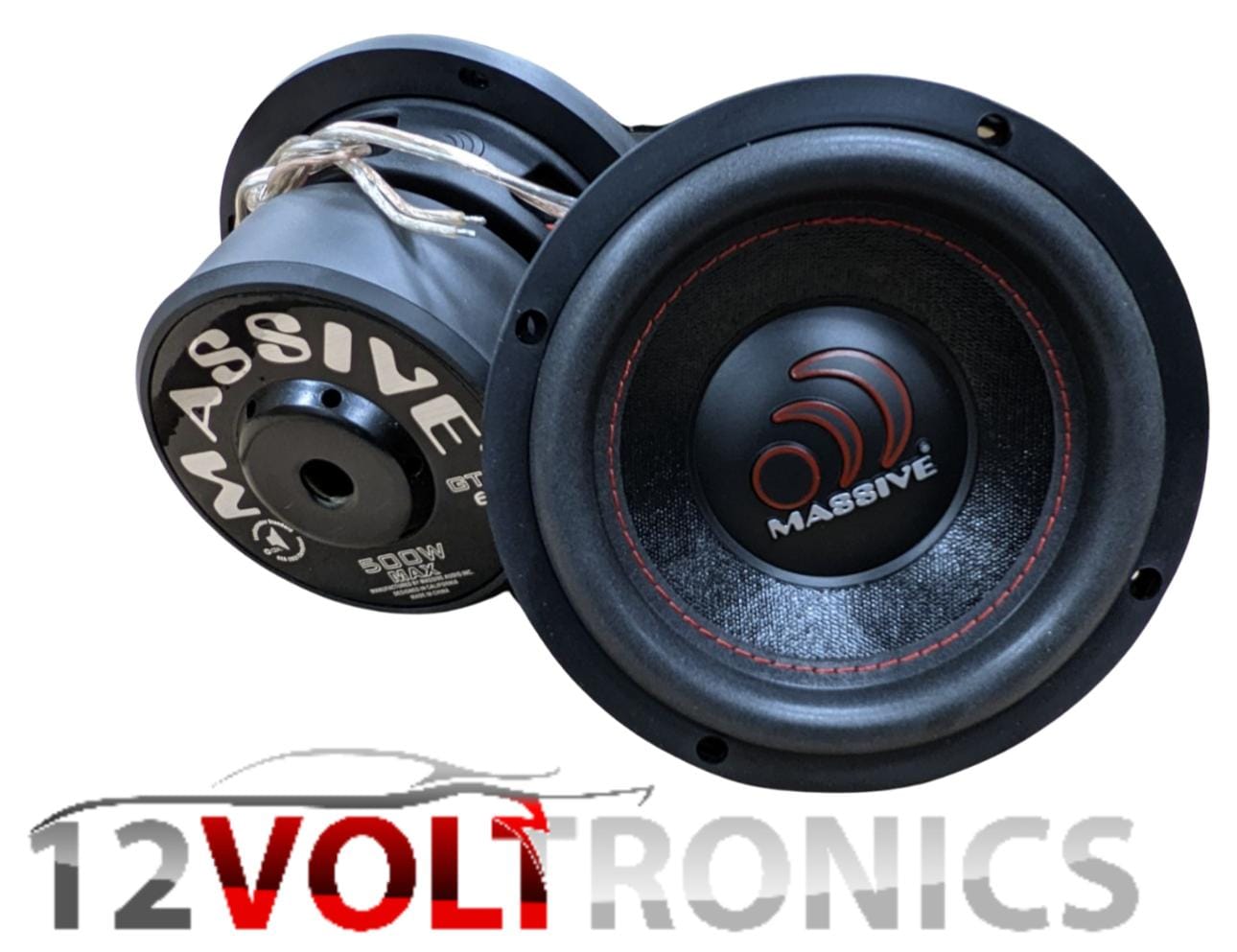

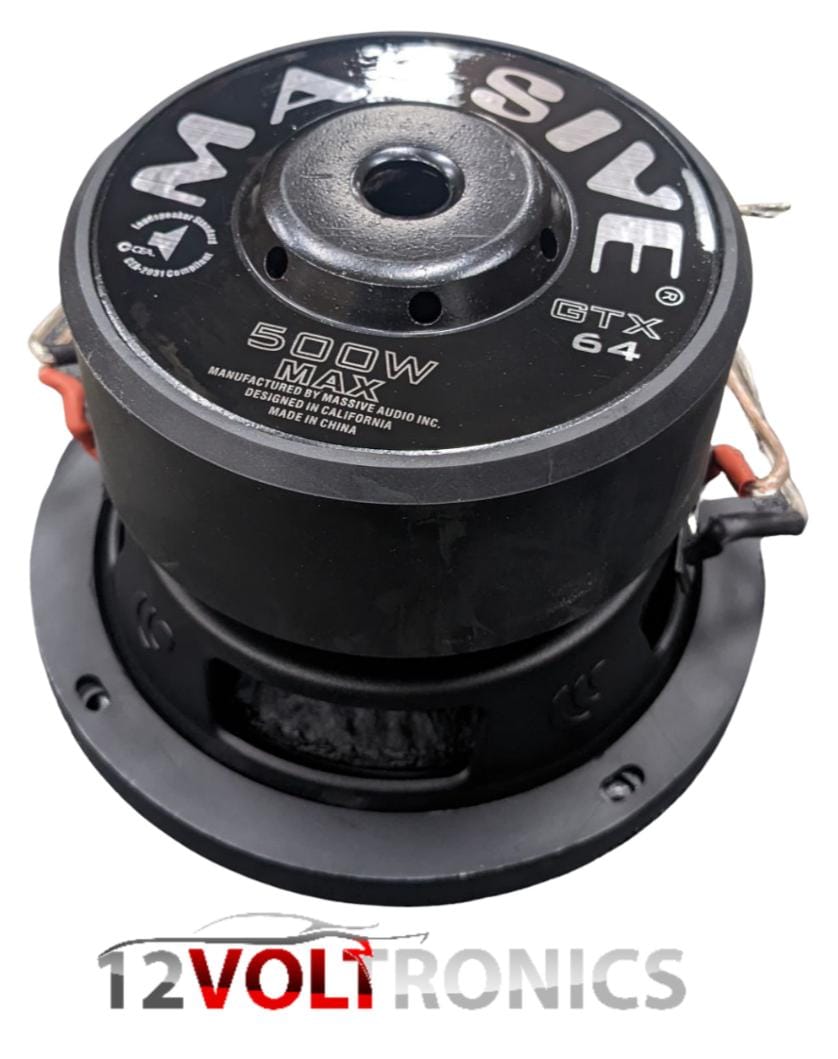

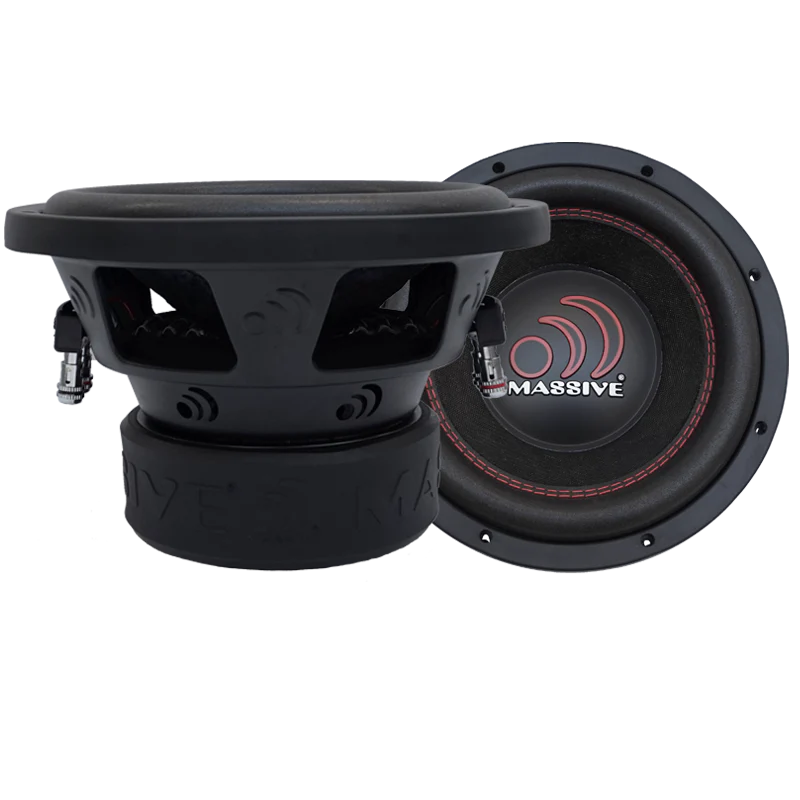

GTX64 – 6″ 250 WATTS RMS DUAL 4 OHM SUBWOOFER
The GTX64 subwoofers are rated at 250 Watts RMS / 500 Watts MAX with a 1.5″ Dual 4 Ohm voice coil configured. All GTX subs use tight Red stitching that’s sewn through a UV treated non-pressed paper cone onto a EROM foam surround. Then it’s bonded to a heavy gauge steel basket that’s bolted to double stacked high flux Y30 70oz Strontium ferrite magnets with a 10mm top plate. Then everything dances on a springy poly cotton spider with high powered woven tinsel leads that connect to spring loaded 5-way binding nickel plated speaker connectors. These woofers scream sound quality and truly represent Massive Audio’s commitment to value and performance.
FEATURES:
- Heavy gauge Steel Basket with Industrial Texture Painting
- Dual Stacked High Flux Y30 70oz Strontium Ferrite Magnets
- Dual Impedance / 1.5″ 4 Layer Hi-Temp Copper Voice Coil
- Poly Cotton Spider with Woven Round Tinsel Leads
- UV Treated / Non-Pressed Paper Cone with EROM Foam Surround
- Round Shape PP Vacuum Dust Cap
- 10mm Top Plate / 18mm X-MAX
- Customized Rubber Gasket & Magnet Boot
SPECIFICATIONS:
| Size | 6″ |
| Watts RMS | 250w |
| Peak Power | 500w |
| Cone | UV Treated / Non-Pressed Paper |
| Voice Coil | 1.5″ Dual 4 Ohm |
| Surround | EROM Foam |
| Magnet | 70oz |
| Terminals | 5 Way Binding Push Terminals |
| Basket | Heavy Gauge Steel |
| Tinsel Leads | Woven Round |
| X-Max | 9mm (1-way) + 10mm Top Plate |
| SPL | 88 dB @2.83V/1m |
| FS | 58.8Hz |
| Ported Box | 12″H x 10″D x 10″W / 6.5 sq. in. Port Area |
| Sealed Box | 0.9 FT CUBED |

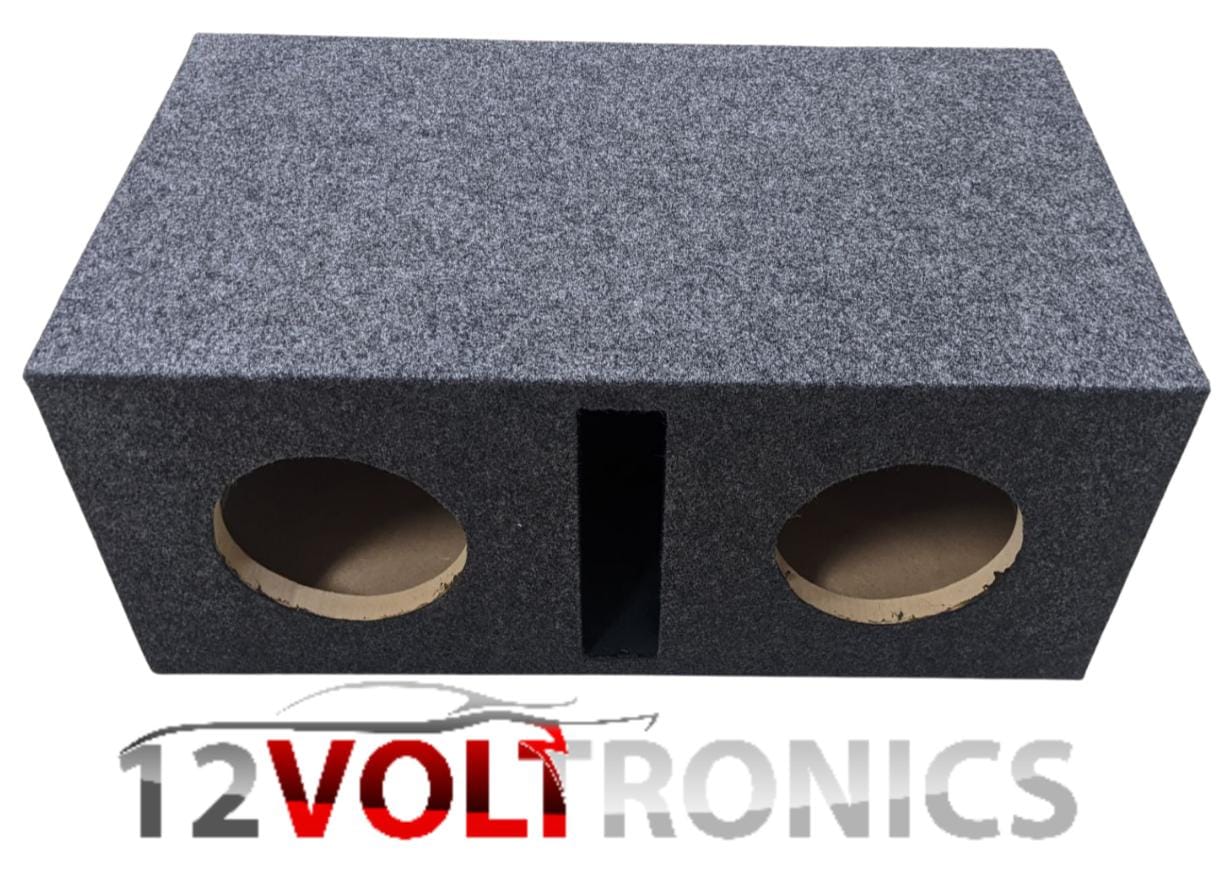

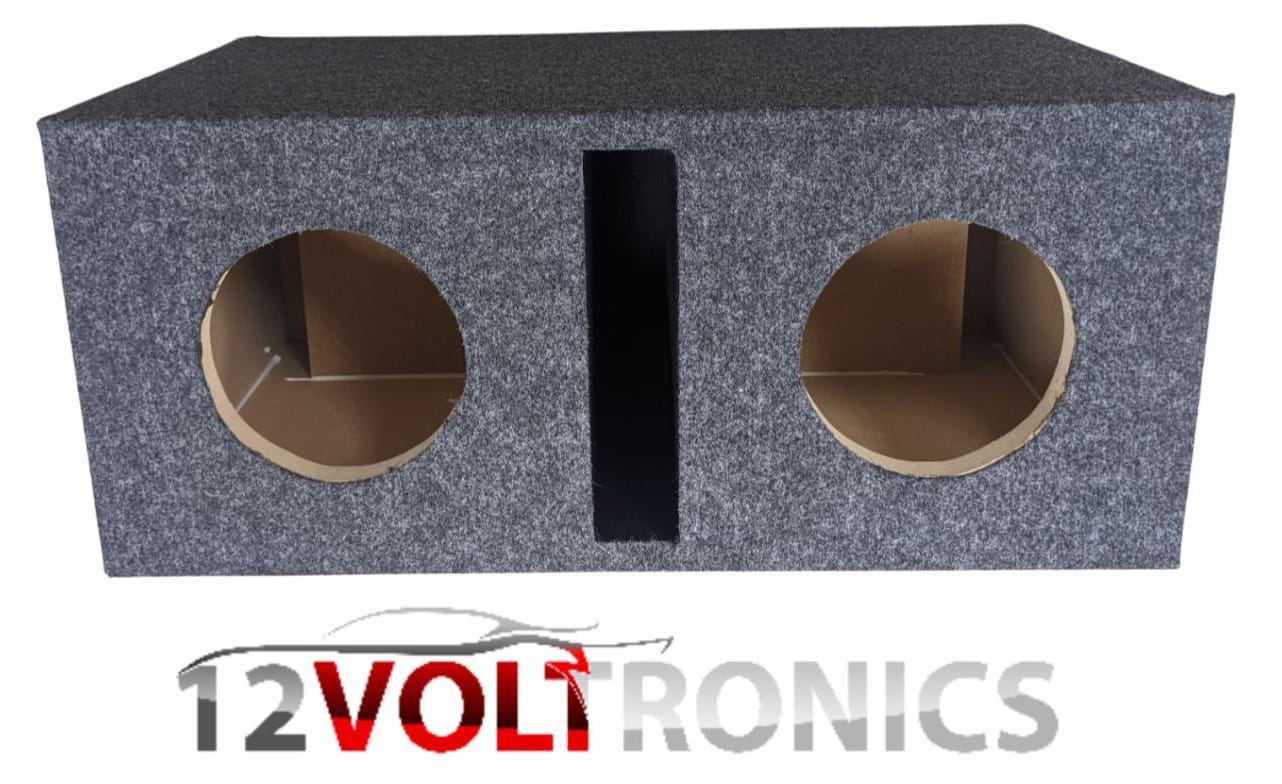

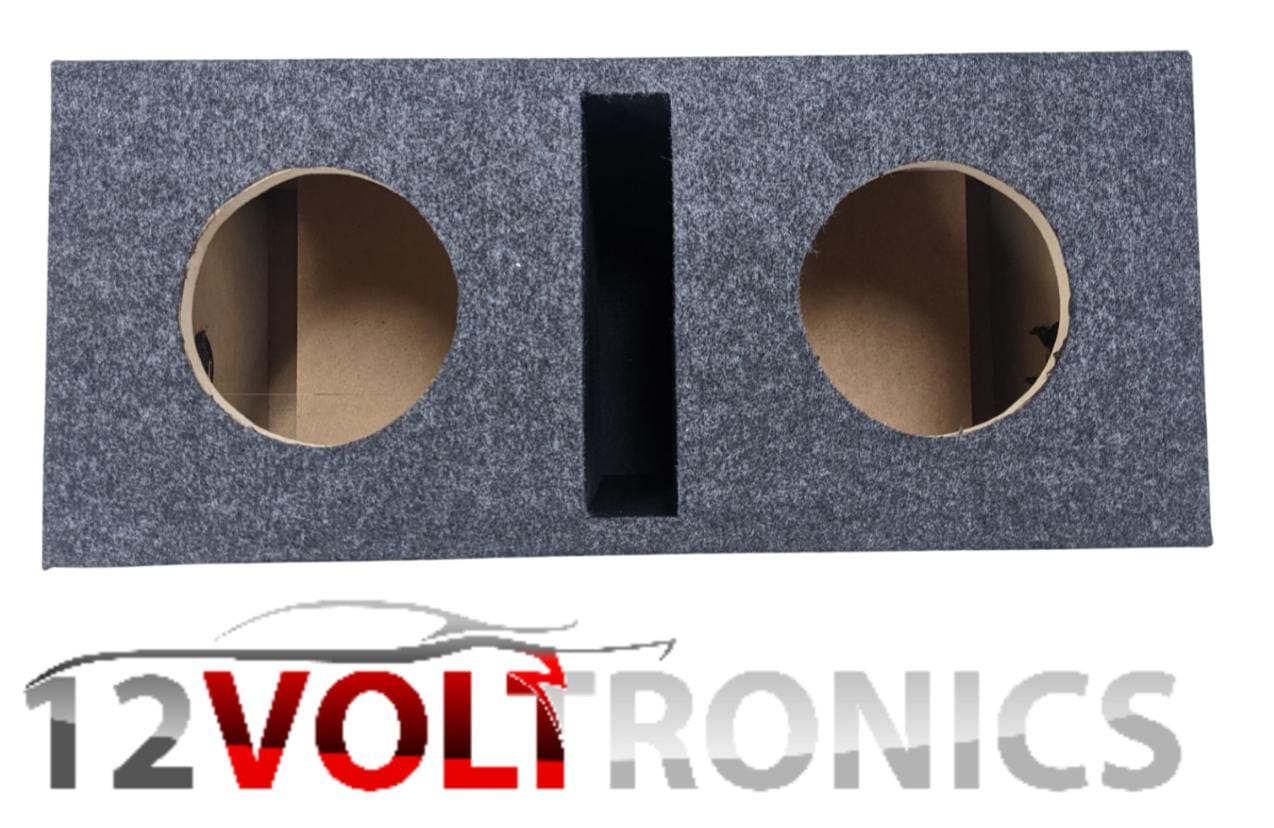

DUAL 6.5″ VENTED SPEAKER ENCLOSURE
CONSTRUCTED OF 1″ MDF FACE & 5/8″ SIDES
CHARCOAL CARPET COVERING
SPRING LOADED PUSH PIN TERMINAL
AIR SPACE: 1.0 CU. FT. PER CHAMBER
MOUNTING DEPTH: 10-1/4″
PORT OPENING: 9″ X 1-3/4″
DIMENSIONS: 24″W X 10-1/2″H X 14″D
WEIGHT: 30.00 LBS.
