Description
SPECIFICATIONS:

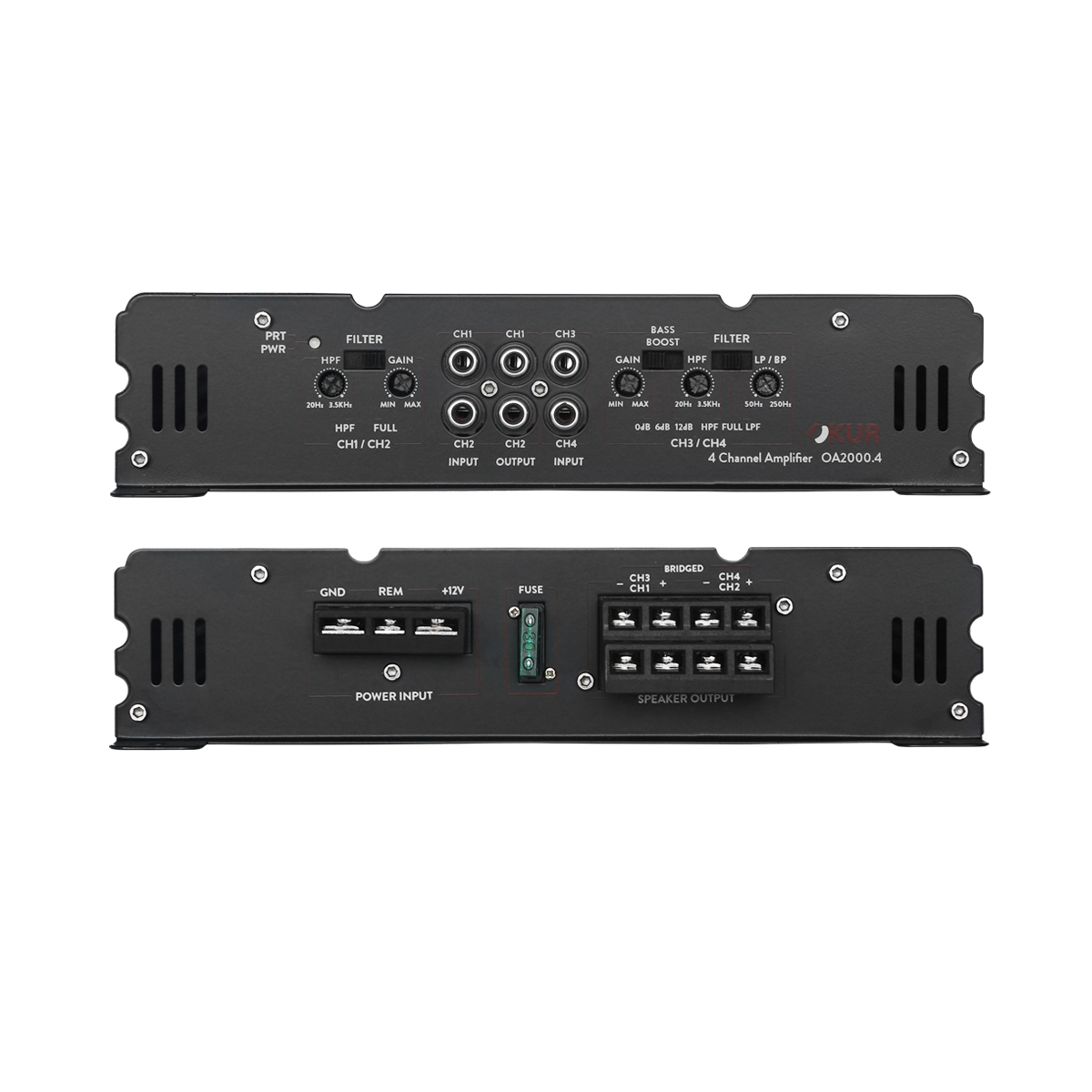

- 4 Channel Class A/B Circuitry
- 2 Ω Stereo load Capability
- Low level RCA inputs
- Selectable Crossover: HPF/LPF/BP
- Bridgeable outputs @ 4Ω load
- 4 gauge Power cable input connectors
- Compatible with any 4/2Ω Loudspeaker
- High Efficiency Mosfet Design
- Heat Management System
PHYSICAL STRUCTURE
| Length (A) | 10.82″ / (275mm) |
| Width (B) | 9.33″ / 237.38mm) |
| Height (C) | 2.04″ / (51.81mm) |
| GENERAL SPECIFICATIONS | |
|---|---|
| Rated Power @ 14.4 Volts | |
| 4 x 100 Watts @ 4Ω | |
| 4 x 200 Watts @ 2Ω | |
| 2 x 400 Watts @ 4Ω Bridged |
| PARAMETERS | |
|---|---|
| Bandwidth(-3dB) | 18Hz – 22KHz |
| S/N Ratio | < 90 dB |
| Input Sensitivity | 285Mv – 6V |
| Channel 1-2 HP filter range | 20Hz- 250Hz |
| Channel 3-4 LP/BP filter range | 50Hz-250Hz |
| Selectable Bass boost | @45Hz – 0-18dB |
