Description

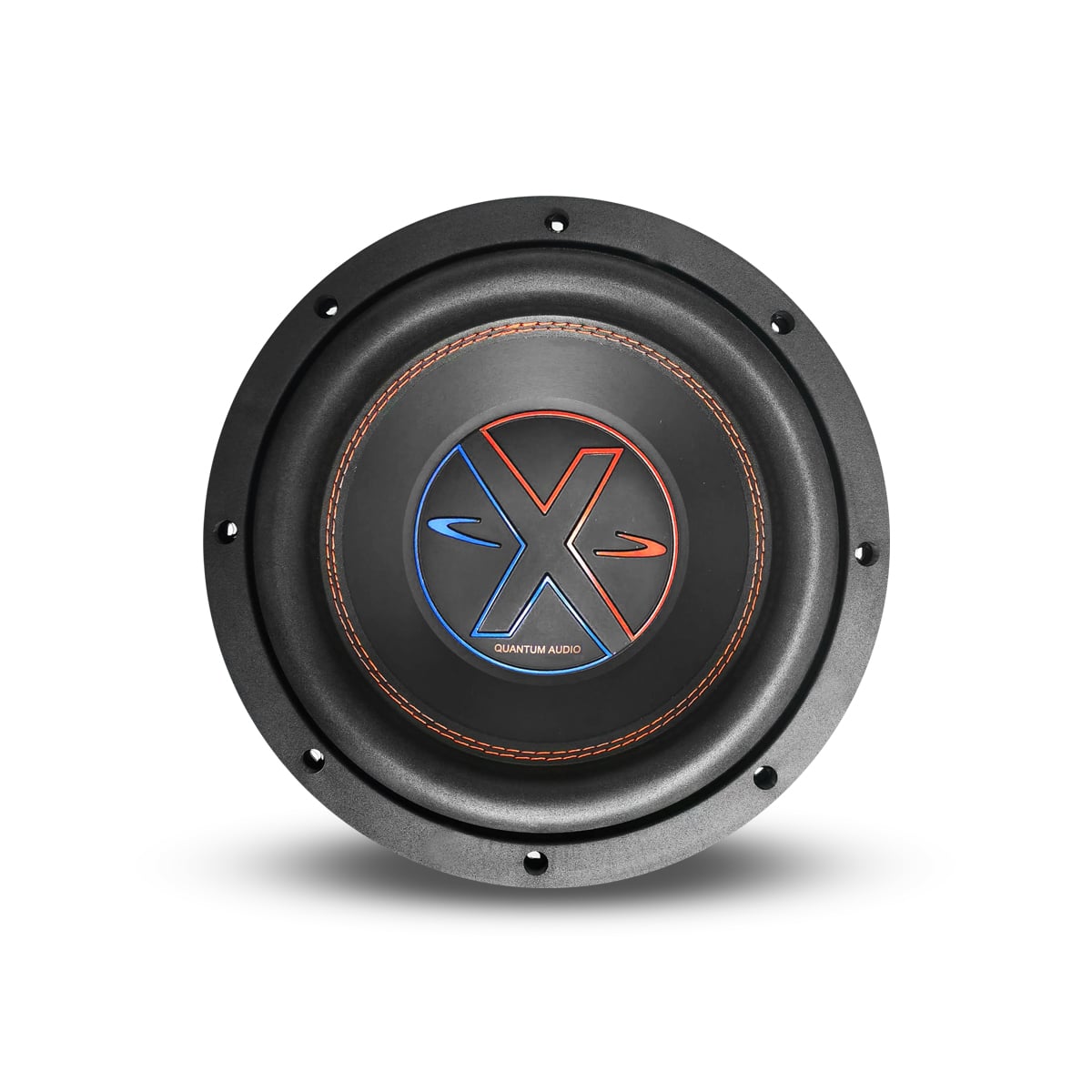

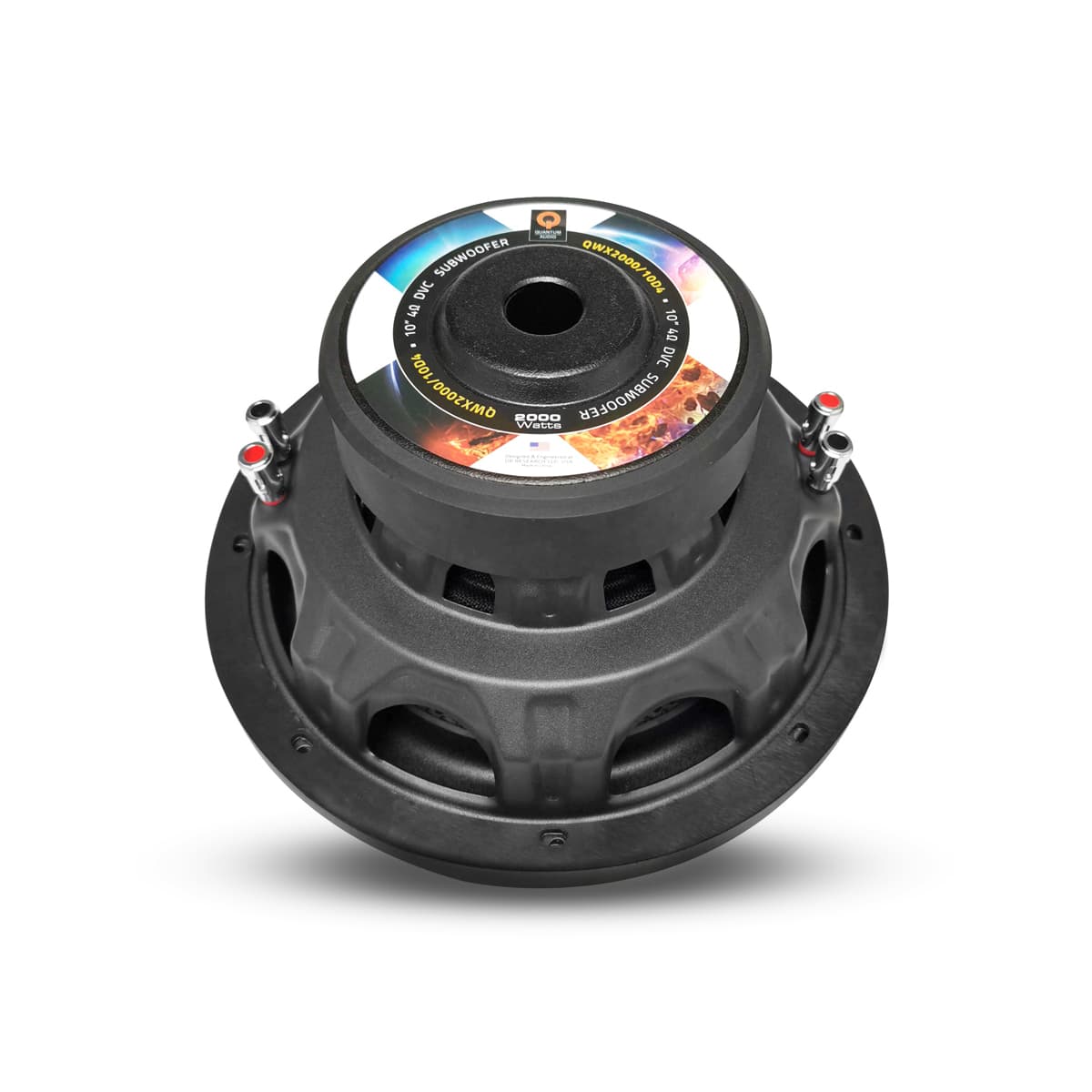

QWX2000-10D4
The engineers at Quantum Audio have designed this subwoofer from the ground up to shake the ground up. The foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.
- 2″ High Temperature Voice Coil
- Compressed Paper Cone
- Double Stitched Foam Surround
- Heavy Gauge Stamped Steel Basket
- Proprietary Full Round PVC Gasket
- Heavy Gauge Spring Terminals
- Protective Magnet Cover
PHYSICAL STRUCTURE
| Outside Diameter (A) | 10.82″ (275mm) |
| Cutout Diameter (B) | 9.24″ (234.9mm) |
| Mounting Depth (C) | 5.03″ (127.8mm) |
GENERAL SPECIFICATIONS |
|
|---|---|
| Structure | 12″ (30.48cm) Woofer |
| Dynamic Power Handling | 2000 Watts |
| Nominal Power Handling | 1000 Watts |
| Impedance | Dual 4Ω Voice Coil |
PARAMETERS |
|
|---|---|
| Sound Pressure Level (SPL) | 85.1dB |
| XMAX | 13mm |
| Resonant Frequency (fs) | 39.402 Hz |
| Compliance (Cms) | 156.093 um/N |
| D.C. Voice Coil Resistance (Re) | 3.6Ω + 3.6Ω |
| Mechanical Quality Factor (Qms) | 4.600 |
| Electrical Quality Factor (Qes) | 0.702 |
| Total Quality Factor (Qts) | 0.609 |
| Mass of Diaphragm/Coil (Mms) | 104.527 g |
| Force Factor (Bl) | 7.679 |
RECOMMENDED ENCLOSURES
| Woofer Cut-out | 9.24″ (234.91mm) |
| Mounting Depth | 5.03″ (127.8mm) |
| Sealed Box | 0.75 ft3 (21.23L) |
| Vented Box | 1.33 ft3 (37.66L) |
| Port Diameter | 7.06 in (17.93 cm) |
| Port length | 12″ (30.48 cm) |
| Tuning | 37 Hz |
| Dynamic Power | 2000 Watts |
| Nominal Power | 1000 Watts |
WIRING CONFIGURATION
You can change the wiring configuration of your speakers (Series, Parallel and Series / Parallel) to match the impedance loads that maximizes the power output of you amplifier. Wiring the same woofer or multiple woofers in these three different wiring configurations will result in different impedance loads.

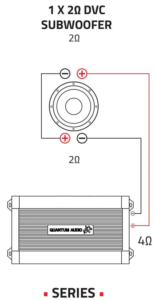

Series: Is the method of wiring of alternate positive with negative terminals (string method) (Illustration below)

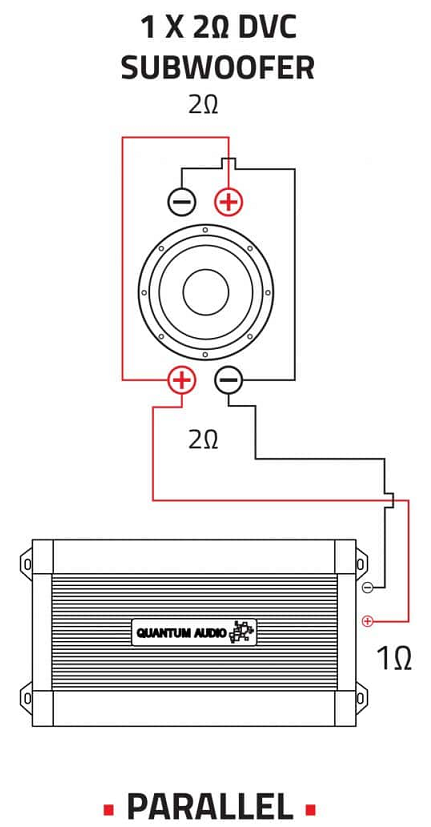

Parallel: Is the method of wiring where you wire match 2 speaker terminals with positive to positive terminal and negative to negative. (Illustration below)

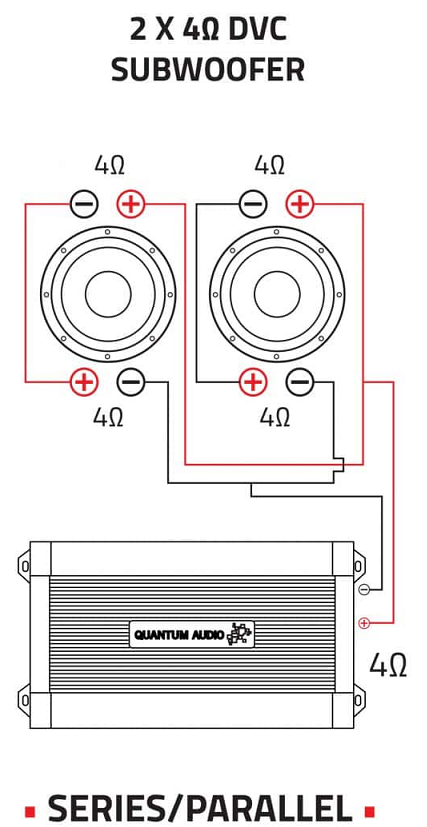

Series/Parallel: This configuration is a combination of both series and parallel. We recommend series for the terminal and parallel for the leads to amp. (Illustration below)
4 OHM DVC CONFIGURATION

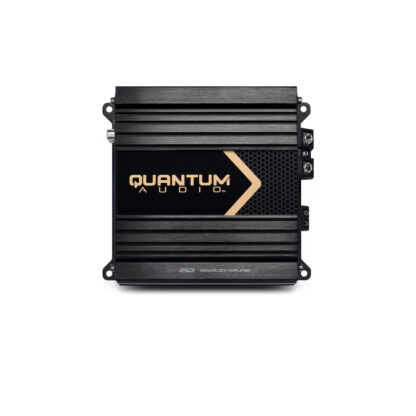

QRX2501
OVERVIEW:
- Full Range Class D Monoblock circuitry
- 1Ω Load Mono Capability
- Low level RCA inputs
- High Level Inputs
- Variable HP/LP Crossover
- High Efficiency Mosfet Design
- Heat Management System
- Remote Dash Bass Control
| Length (A) | 6.05″ / (153.7mm) |
| Width (B) | 5.53″ / (140.5mm) |
| Height (C) | 2.33″ / (59.2mm) |
GENERAL SPECIFICATIONS |
|
|---|---|
| Rated Power @ 14.4 Volts | |
| Dynamic Power Handling | 1 X 2500 Watts @ 1Ω |
| Dynamic Power Handling | 1 x 1500 Watts @ 2Ω |
| Dynamic Power Handling | 1 x 750 Watts @ 4Ω |
| PARAMETERS | |
|---|---|
| THD at Rated Power | 1Ω Mono |
| Bandwidth (-3 dB) | 18Hz- 20KHz |
| Damping Factor | (1k Hz @ 4Ω) – 126 |
| Signal to Noise Ratio | >90dB |
| Input Sensitivity | 285Mv – 6V |
| Minimum Load Impedance | 1Ω mono |
| Mono Low Pass Filter Slope | 12 dB |
| LPF range | 40Hz-10KHz |
| HPF range | 15Hz-1KHz |
| Variable Bass boost @ | 45Hz |
MONOBLOCK AMPLIFIER SPEAKER CONNECTION (DIAGRAM 1)
MONOBLOCK AMPLIFIER SPEAKER CONNECTION (DIAGRAM 2)
REMOTE CONNECTION
