Description

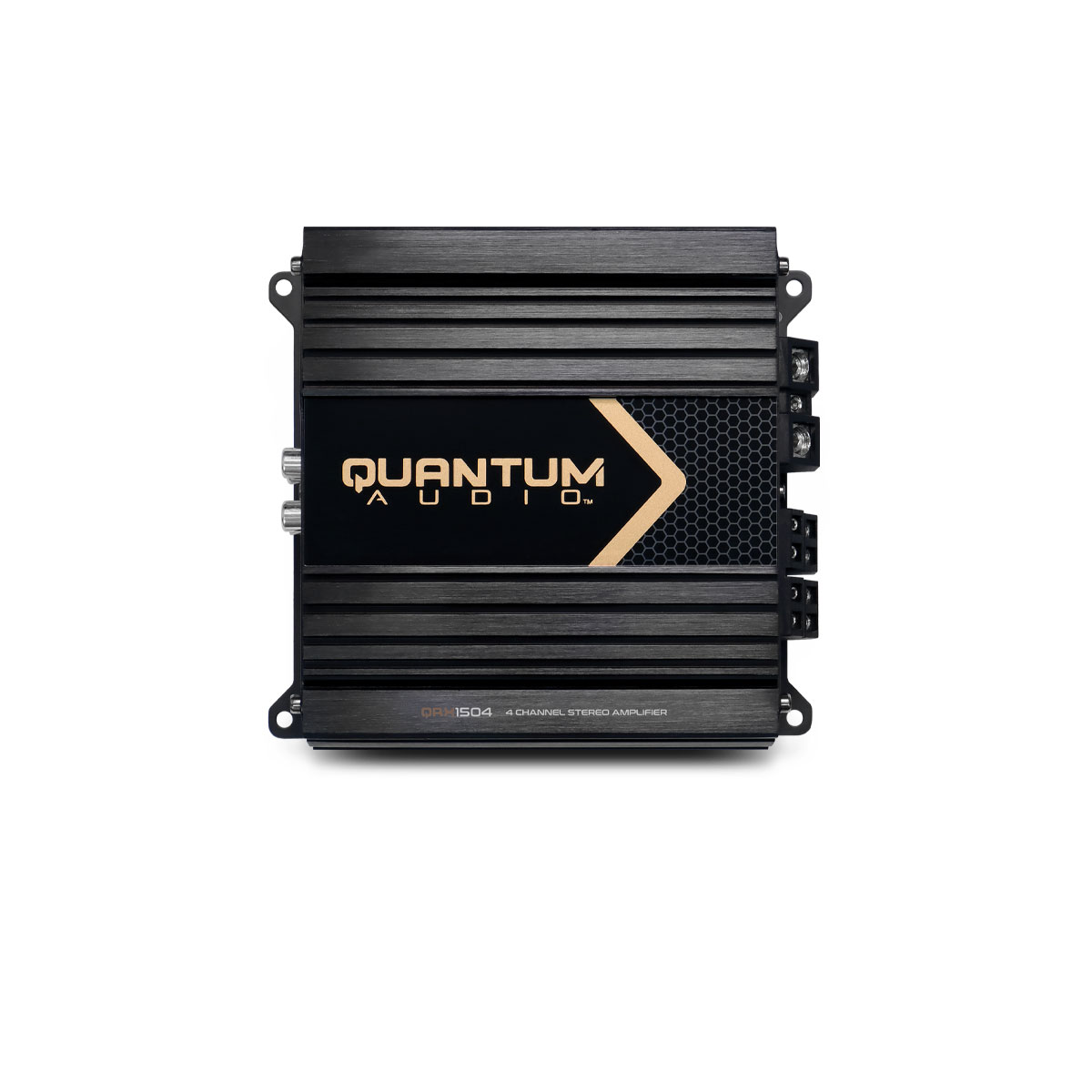

QRX1504
OVERVIEW:

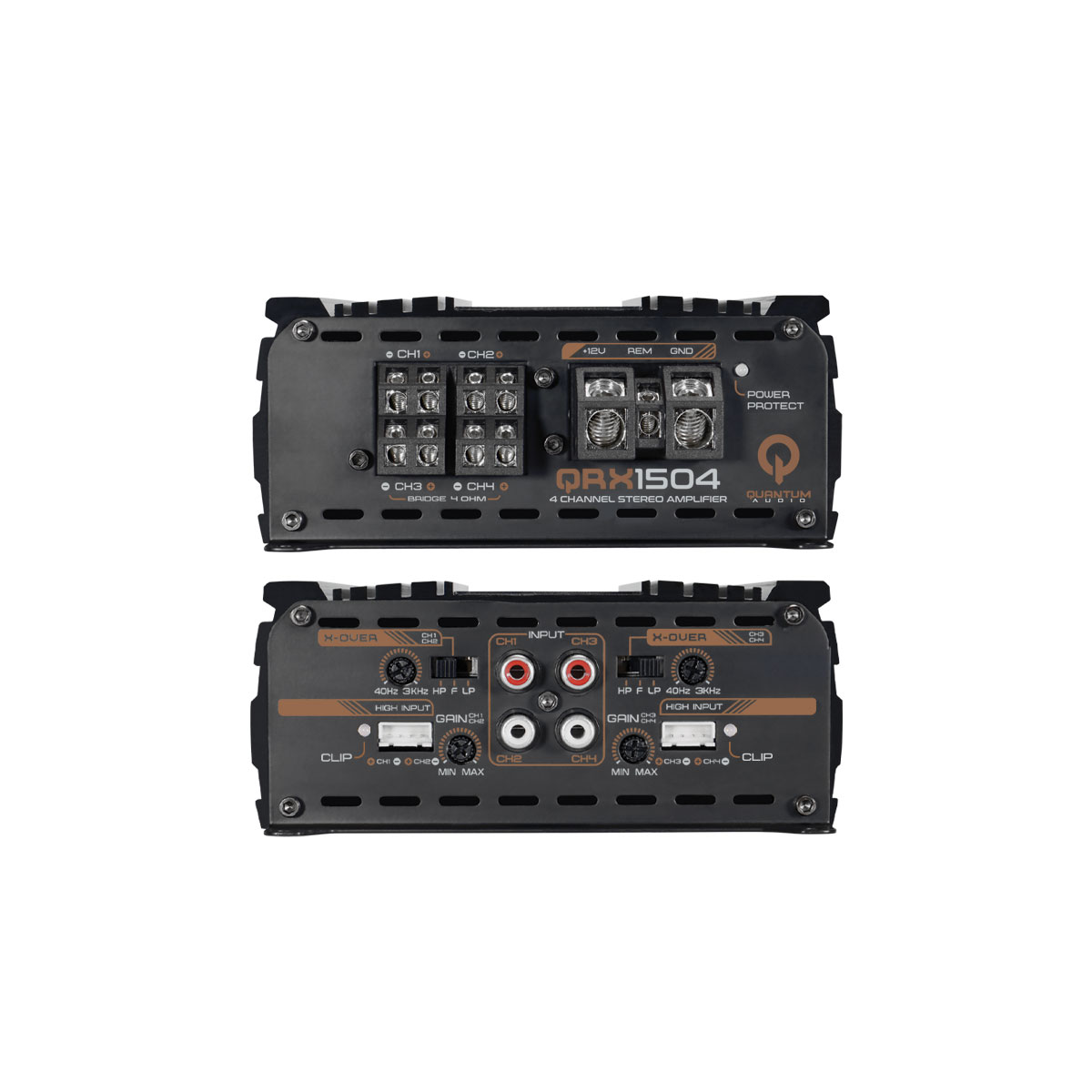

- 4 Channel Full Range Class D Circuitry
- 2Ω Stereo load Capability
- Low level RCA inputs
- High Level Inputs
- Selectable Crossover: HPF/LPF/Full
- Bridgable outputs @ 4Ω load
- Compatible with any 4/1Ω Loudspeaker
- High Efficiency Mosfet Design
- Heat Management System
| Length (A) | 6.05″ / (153.7mm) |
| Width (B) | 5.53″ / (140.5mm) |
| Height (C) | 2.33″ / (59.2mm) |
GENERAL SPECIFICATIONS |
|
|---|---|
| Rated Power @ 14.4 Volts | |
| Dynamic Power Handling | 4 X 150 Watts @ 4Ω |
| Dynamic Power Handling | 4 x 300 Watts @ 2Ω |
| Dynamic Power Handling | 2 x 600 Watts @ 4Ω |
| PARAMETERS | |
|---|---|
| Compatibility 2Ω Stereo | |
| THD at Rated Power | <0.5% |
| Bandwidth (-3 dB) | 18Hz- 22KHz |
| Damping Factor | (1k Hz @ 4Ω) – 100 |
| Signal to Noise Ratio | >90dB |
| Input Sensitivity | 285Mv – 6V |
| Crossover filter slope in Stereo | 12 dB |
| Channel 1-2 HP filter range | 40Hz – 3KHz |
| Channel 1-2 LP filter range | 40Hz – 3KHz |
| Channel 3-4 HP filter range | 40Hz – 3KHz |
| Channel 3-4 LP filter range | 40Hz – 3KHz |
