Description

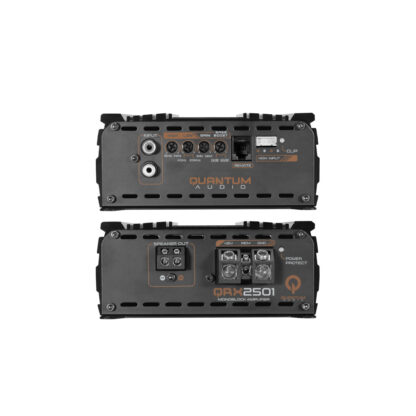

QRX2501
OVERVIEW:
- Full Range Class D Monoblock circuitry
- 1Ω Load Mono Capability
- Low level RCA inputs
- High Level Inputs
- Variable HP/LP Crossover
- High Efficiency Mosfet Design
- Heat Management System
- Remote Dash Bass Control
| Length (A) | 6.05″ / (153.7mm) |
| Width (B) | 5.53″ / (140.5mm) |
| Height (C) | 2.33″ / (59.2mm) |
GENERAL SPECIFICATIONS |
|
|---|---|
| Rated Power @ 14.4 Volts | |
| Dynamic Power Handling | 1 X 2500 Watts @ 1Ω |
| Dynamic Power Handling | 1 x 1500 Watts @ 2Ω |
| Dynamic Power Handling | 1 x 750 Watts @ 4Ω |
| PARAMETERS | |
|---|---|
| THD at Rated Power | 1Ω Mono |
| Bandwidth (-3 dB) | 18Hz- 20KHz |
| Damping Factor | (1k Hz @ 4Ω) – 126 |
| Signal to Noise Ratio | >90dB |
| Input Sensitivity | 285Mv – 6V |
| Minimum Load Impedance | 1Ω mono |
| Mono Low Pass Filter Slope | 12 dB |
| LPF range | 40Hz-10KHz |
| HPF range | 15Hz-1KHz |
| Variable Bass boost @ | 45Hz |
MONOBLOCK AMPLIFIER SPEAKER CONNECTION (DIAGRAM 1)
MONOBLOCK AMPLIFIER SPEAKER CONNECTION (DIAGRAM 2)
REMOTE CONNECTION
