Up for auction is a Brand new Hypnotic (By DB Drive) 8″ subwoofer. We have yet to test these woofers, so if you win this auction we would love your feedback. It is well constructed with a really nice cast basket. This auction like all others is starting at $1 with no reserve. As always, good luck, and happy bidding!!!

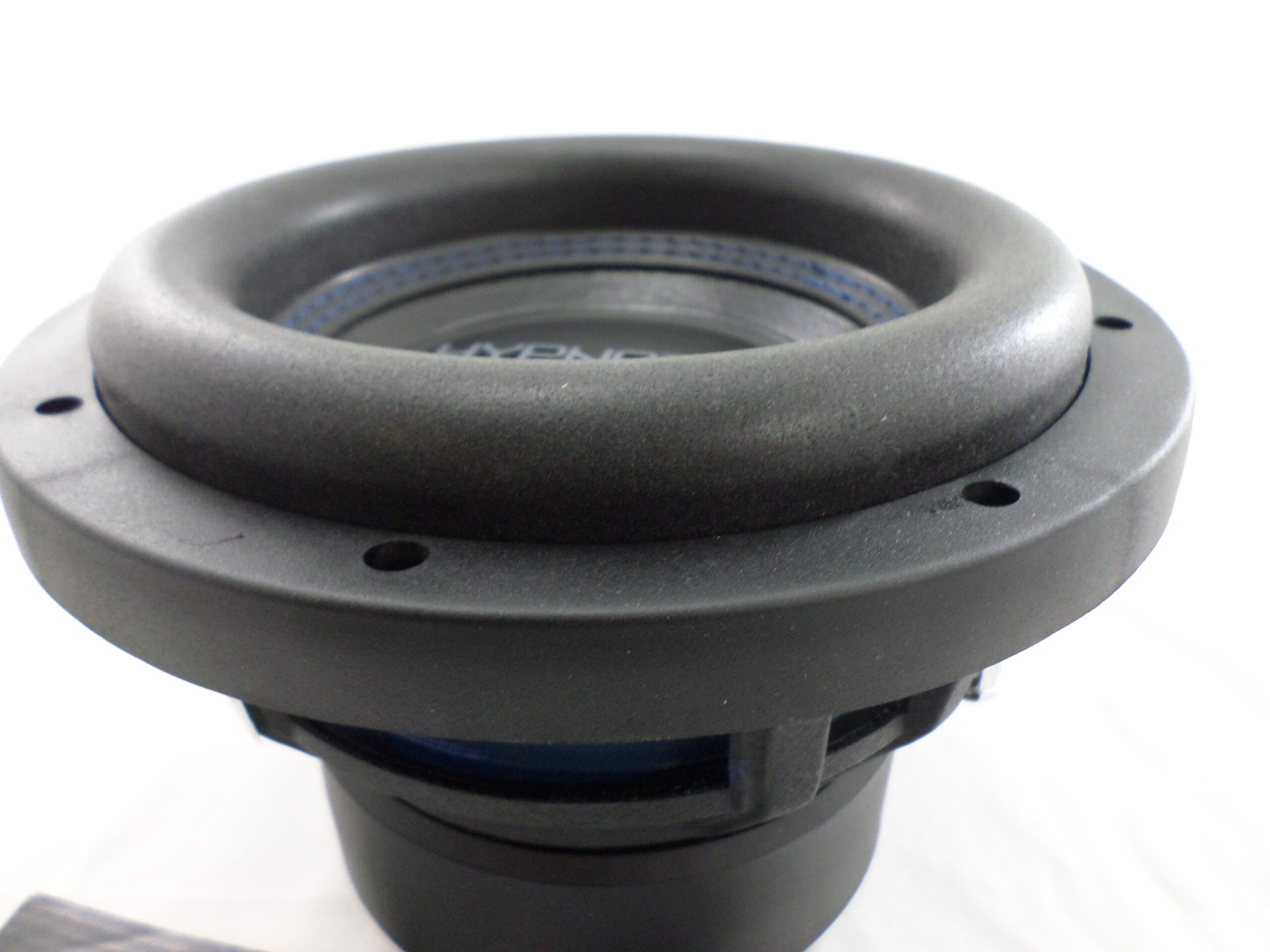

Our engineers at Hypnotic have designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.
8” 4Ω DVC Subwoofer
2” High Temperature Voice coil
Non-pressed Paper cone
Double stitched foam surround
High Roll Foam Surround
Heavy Gauge Die-cast aluminum basket
Wrap Around Mounting Gasket
Heavy Gauge Spring Terminals
Protective magnet cover
95oz Motor Structure
PHYSICAL STRUCTURE
Outside Diameter (A)
8.7″ (220mm)
Cutout Diameter (B)
7.48″ (190mm)
Mounting Depth (C)
5.19″ (132mm)
GENERAL SPECIFICATIONS
Structure
8″ (20.3cm) Woofer
Dynamic Power Handling
1000 Watts
Nominal Power Handling
500 Watts
Impedance
Dual 4Ω Voice Coil
PARAMETERS
Resonant Frequency (fs)
55.868Hz
D.C. Voice Coil Resistance (Re)
3.4 x 3.4Ω
Mechanical Quality Factor (Qms)
4.072
Electrical Quality Factor (Qes)
0.480
Total Quality Factor (Qts)
0.429
Equivalent Air Volume to Cms (Vas)
5.937 L
Mass of Diaphragm/Coil (Mms)
84.522 g
Force Factor (Bl)
8.615
RECOMMENDED ENCLOSURES
Woofer Cut-out
7.48″ (190mm)
Mounting Depth
5.8″ (148mm)
Sealed Box
0.76 ft3 (21.52L)
Vented Box
1.15 ft3 (32.56L)
• Vent Area
9.62 in2 (62.06 cm2)
• Vent Length
16″ (6.2 cm)
• Tuning
36Hz
Dynamic Power
1000 Watts
Nominal Power
500 Watts
Additional information
Weight
14 lbs
Dimensions
11 × 11 × 8 in
