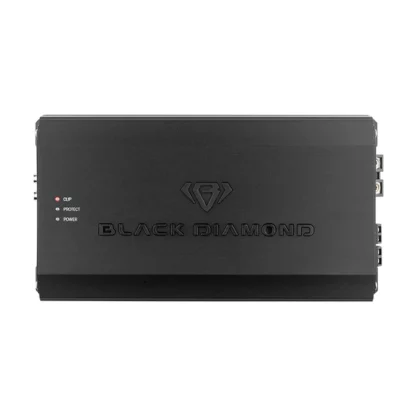

Black Diamond Amplifier Class D 1 Channel Monoblock 1000 Watts RMS DIA-P1000X1D
High Quality design only using the best parts for assembly. Low pass filters so you can adjust the bass easily to match your perfect bass and sound level. The amp includes a bass knob for on-the-fly adjustments. Great power rating of 1000W at 1 ohm RMS that will push most high powered subs to their limit for great sound and volume.
Includes:
(1) Black Diamond Car Audio Amplifier-DIA-P1000X1D

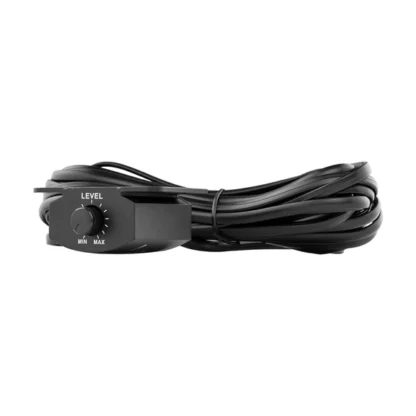

(1) Bass Knob
(1) Bass Knob Connector
(1) Owner’s Manual
POWER SPECIFICATIONS:
Total Watts (Peak): 3000W
RMS Power 1 ohm: 1000W
RMS Power 2 ohm: 650W
RMS Power 4 ohm: 380W
AUDIO SPECIFICATIONS:
Amplifier Class: Digital
Amplifier Type: Monoblock Subwoofer
Number of Channels:1 Channel
Frequency Response: 10Hz-220Khz
Signal to Noise Ratio: Greater than 95dB
Total Harmonic Distortion (THD): 0.01%
Selectable X- Over: Fixed LPF
X- Over Filter Range: 40- 180Hz
Bass Boost Range : 0-12
Bass Boost Frequency: 30-80Hz
Infrasonic Filter: 10-50Hz
Minim Impendence: 1 Ohm
Led Indicator: Power/Protect/Clipping

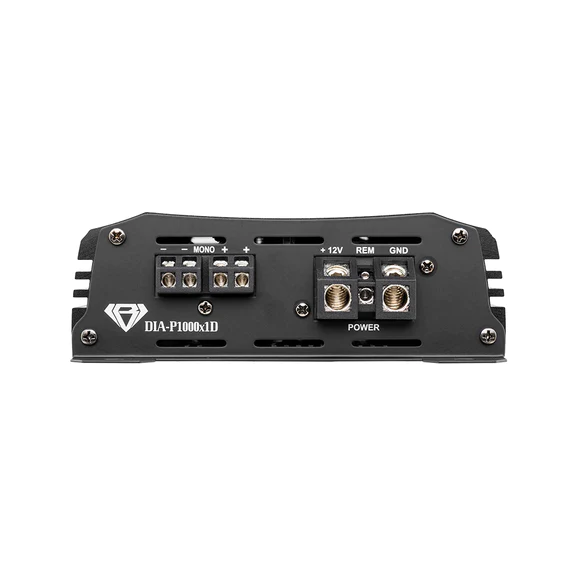

Power Input Terminal Size:4 Ga
Recommended Fuse Size:120A
Remote Level Control: Yes / Dash Mount
Thermal Protection: Yes
Overload Protection: Yes
DC Output Protection: Yes
Voltage Input Protection: Yes Greater than 9/ Less than 16 Volts
Clipping Protection: Yes
Bridge Mode: Yes
Dimensions:(11″ L x 6.18 “W x 2″H)
