Description
Features
- 2″ (50.8mm) 4 Layer Voice Coil w/ KSV Former
- Injected PP Cone with rubber Surround
- Precision Excursion design
- High Strength Ferrite Oxide magnet
- Anti-resonant stamped steel basket with radial venting
- Linear dampening
- Compression Speaker Terminals
Specifications
- Dynamic Power Handling: 1200 Watts
- Nominal Power Handling: 600 Watts
- Impedance: Dual 4Ω Voice Coil
- Resonant Frequency (fs): 26.003Hz
- D.C. Voice Coil Resistance (Re): 2 x 4Ω
- Mechanical Quality Factor (Qms): 3.470
- Electrical Quality Factor (Qes): 0.659
- Total Quality Factor (Qts): 0.554
- Equivalent Air Volume to Cms (Vas): 99.750 L
- Mass of Diaphragm/Coil (Mms): 139.097 g
- Force Factor (BL): 14.859
- Sound Pressure Level (SPL): 86.1 dB
- X-max: 18
Description

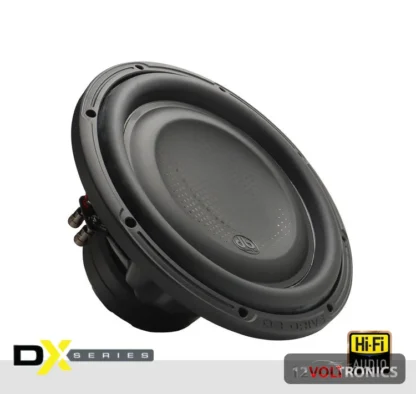

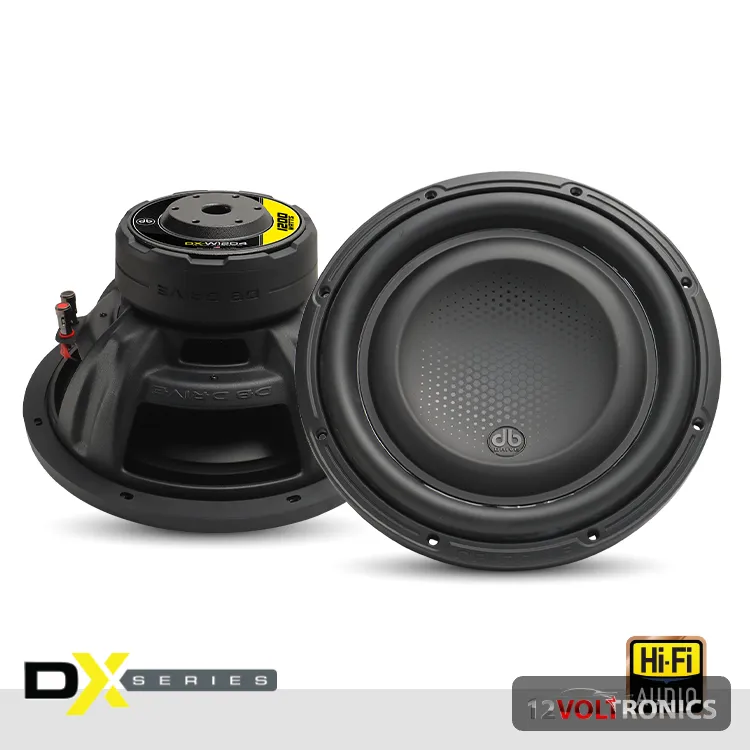

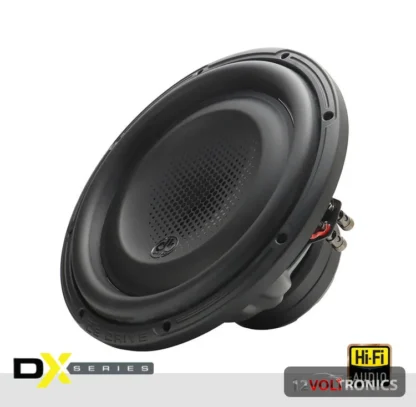

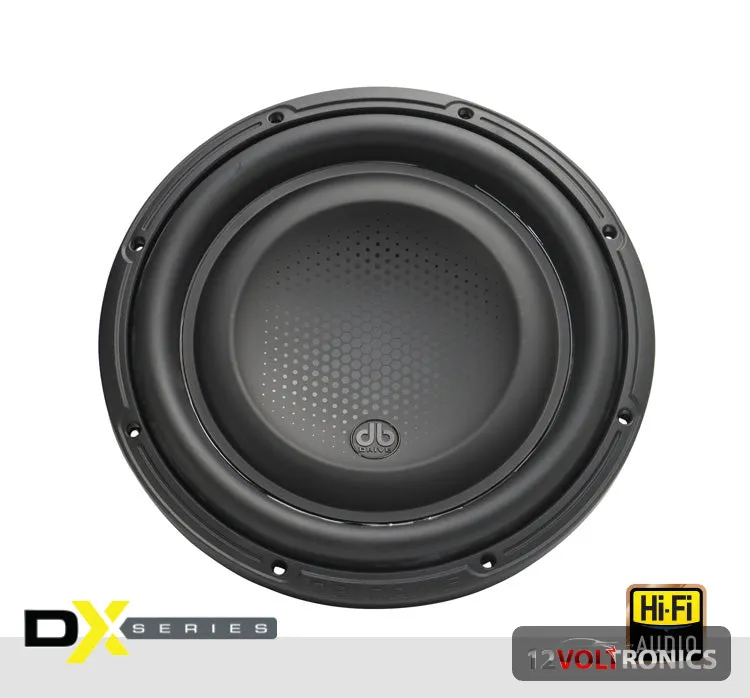

Unleash deep, controlled bass with the DB Drive DX-W12D4 12″ subwoofer. Built for precision and power, it features a 2″ 4-layer voice coil with a KSV former, an injected polypropylene cone with a durable rubber surround, and a high-strength ferrite oxide magnet. The anti-resonant stamped steel basket with radial venting and linear dampening ensures consistent performance and efficient heat dissipation. With 1200W dynamic power handling and a dual 4Ω voice coil configuration, the DX-W12D4 delivers clean, hard-hitting lows with enhanced sound pressure and responsiveness—ideal for enthusiasts seeking rich, detailed bass in any setup.
Product Manual
Product Manual PDF
