Description

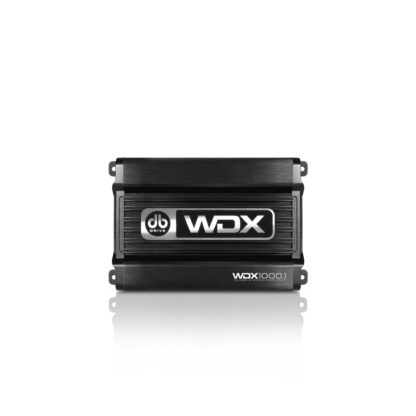

DB DRIVE WXD1000.1

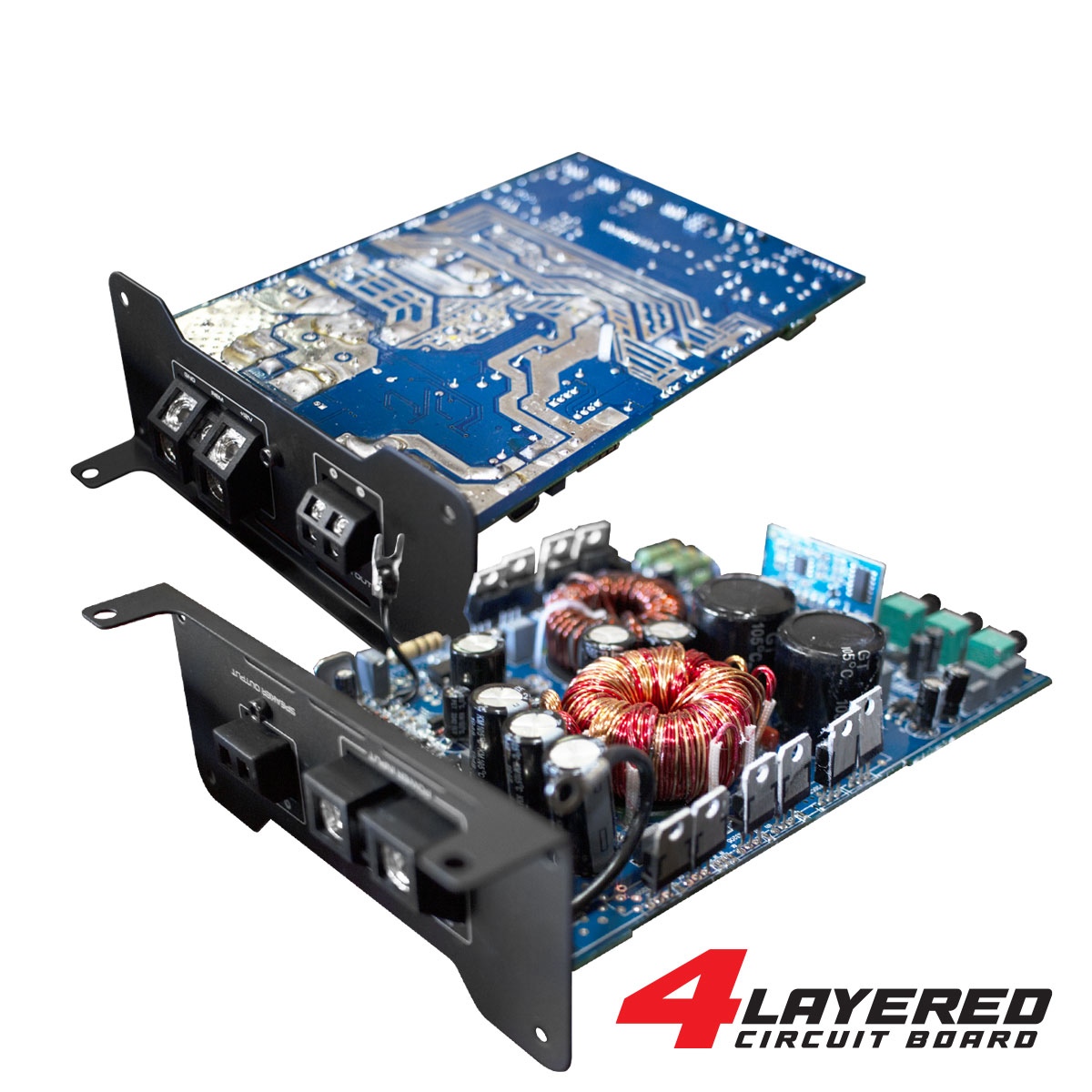

- CLASS “D” CIRCUITRY
- Direct Connect Speaker Terminals
- 4 Gauge Power Wire Input
- CHM- Collective Heat Management
- ACT – Adaptive Crossover Technology
- SESI – Signal Evaluation Status Indicator
- APC – Audio Protection Circuit
- Included Remote Level Control
PHYSICAL STRUCTURE
| Length (A) | 9″ / (228.6mm) |
| Width (B) | 5.50″ / (139.7mm) |
| Height (C) | 2.38″ / (60.5mm) |
GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts
1 x 1000 Watts @ 1Ω
1 x 500 Watts @ 2Ω
1 x 250 Watts @ 4Ω
PARAMETERS |
|
|---|---|
| Frequency Response | 20Hz ~ 300Hz |
| S/N Ratio | < 95 dB |
| Low Level Input | 6V – 0.2V |
| Variable High Pass Filter (12DB Slope) | 40Hz ~ 300Hz |
| Variable Low Pass Filter (12DB Slope) | 10Hz ~ 40Hz |
| Bass Equalizer | 0dB – 9dB |
| Working Voltage | 12-15 Volts |
