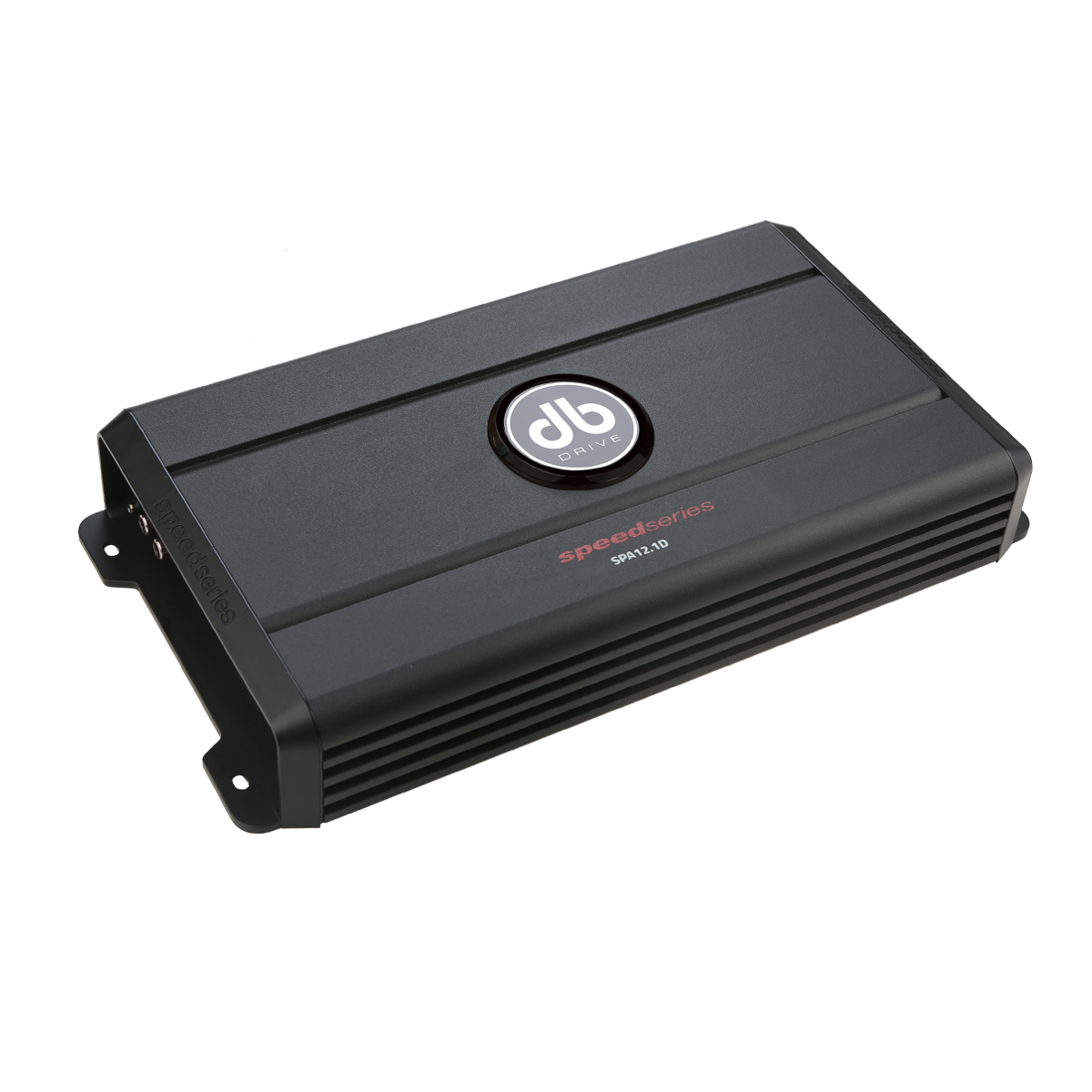

Description
FEATURES:
Mono Class D Technology
1 Ω Mono Load Capability

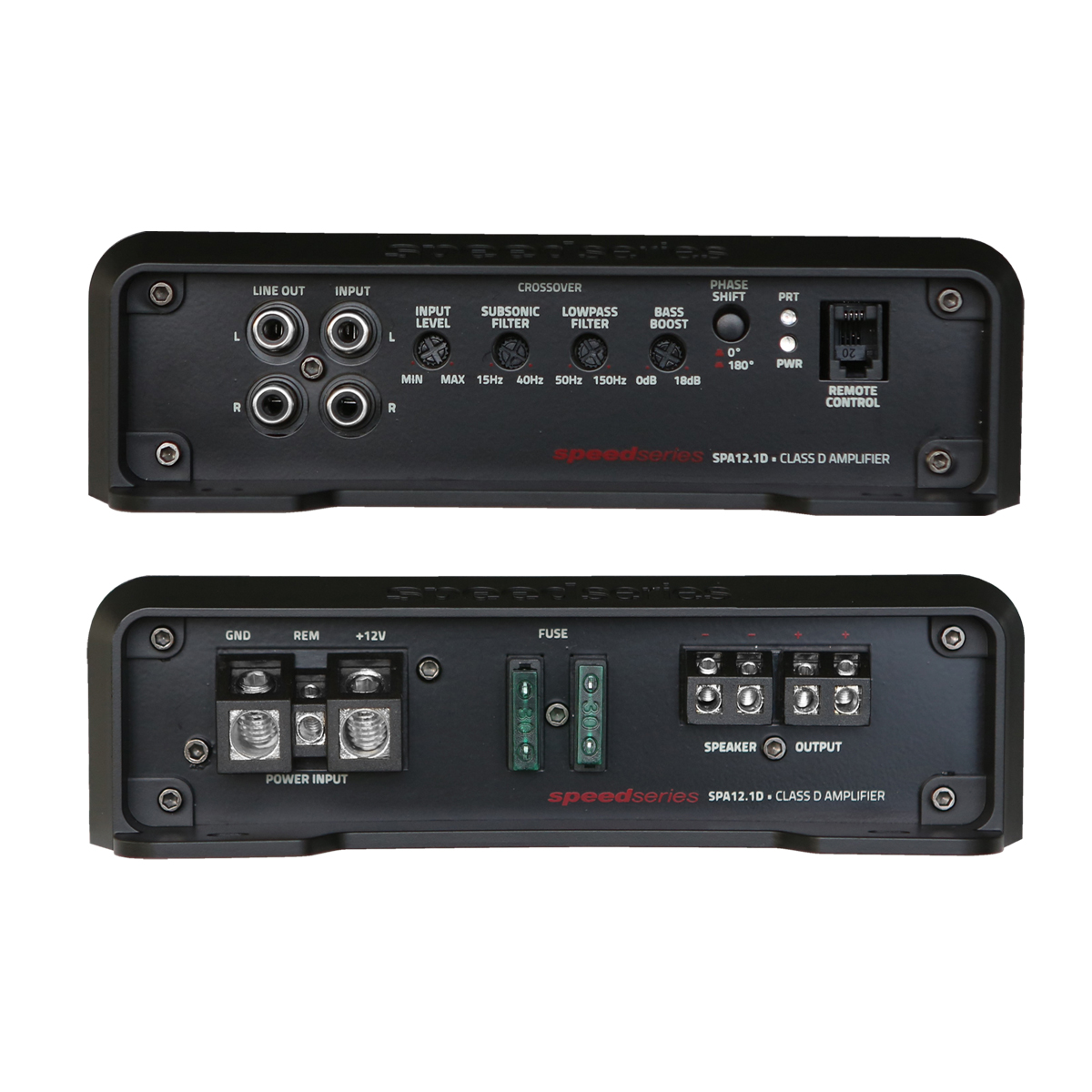

High Level RCA Inputs
Buffered RCA outputs
12dB Slope Variable Low-Pass Crossover Filter
24db Slope Variable Sub-Sonic Filter
Phase Shift Selector
Remote Dash Bass Control
Large Power Cable Input Connectors
Double Sided PCB
Compatible with any 1Ω Subwoofer Load
SPECIFICATIONS |
|
|---|---|
| Rated @14 Volts |
|
| THD (1kHz @ 4Ω) | 0.04% |
| Bandwidth (-3 dB) | 18Hz- 250Hz |
| Input Sensitivity | .20MV – 5.0V RMS |
| Signal to Noise Ratio | 99dB |
| Damping Factor (1k Hz @ 4Ω) | 126 |

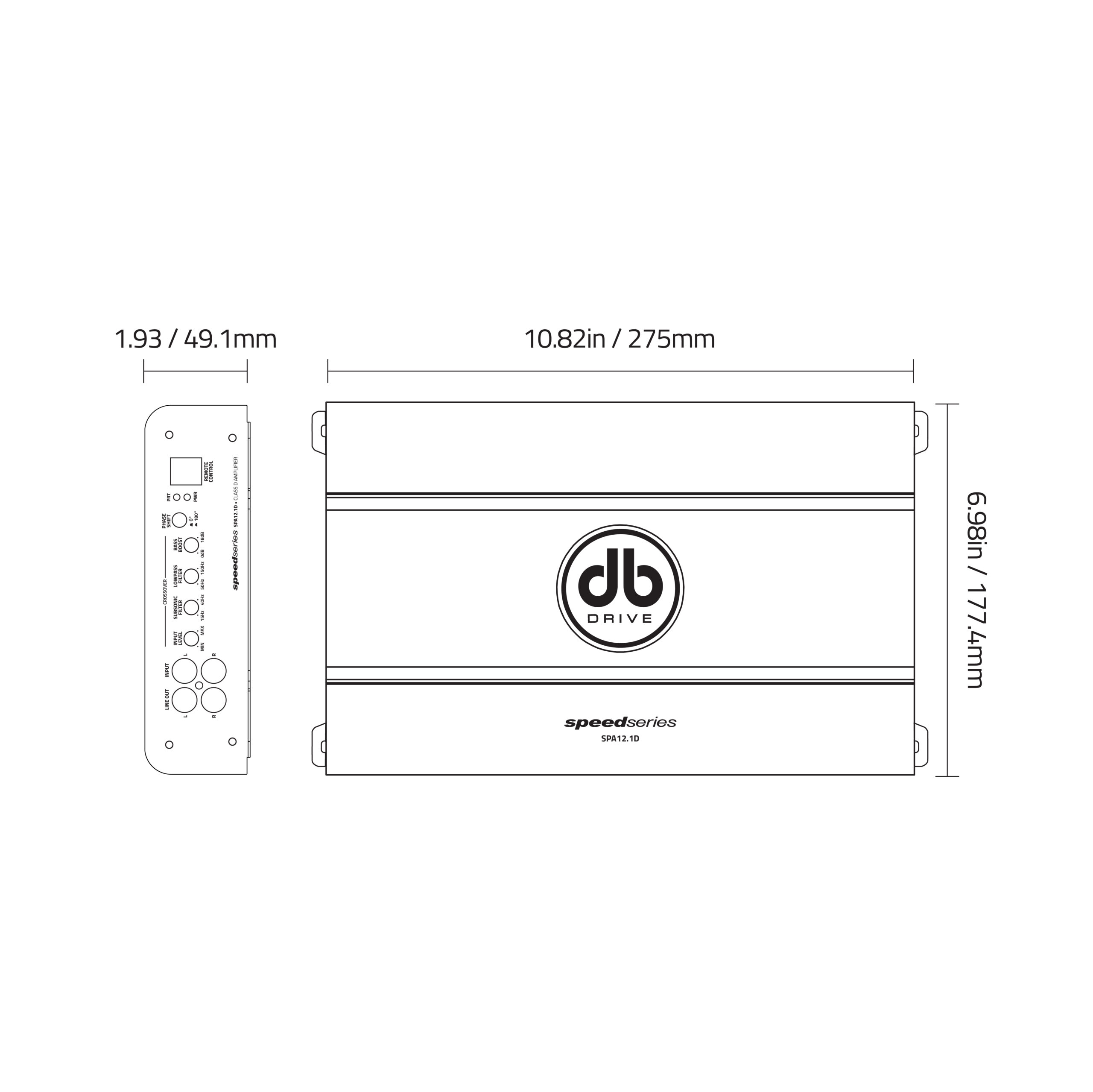

DIMENSIONS |
|
|---|---|
| Length | 10.82″ / 275 mm |
| Width | 6.98″ / 177.4 mm |
| Height | 1.93″ / 49 mm |
