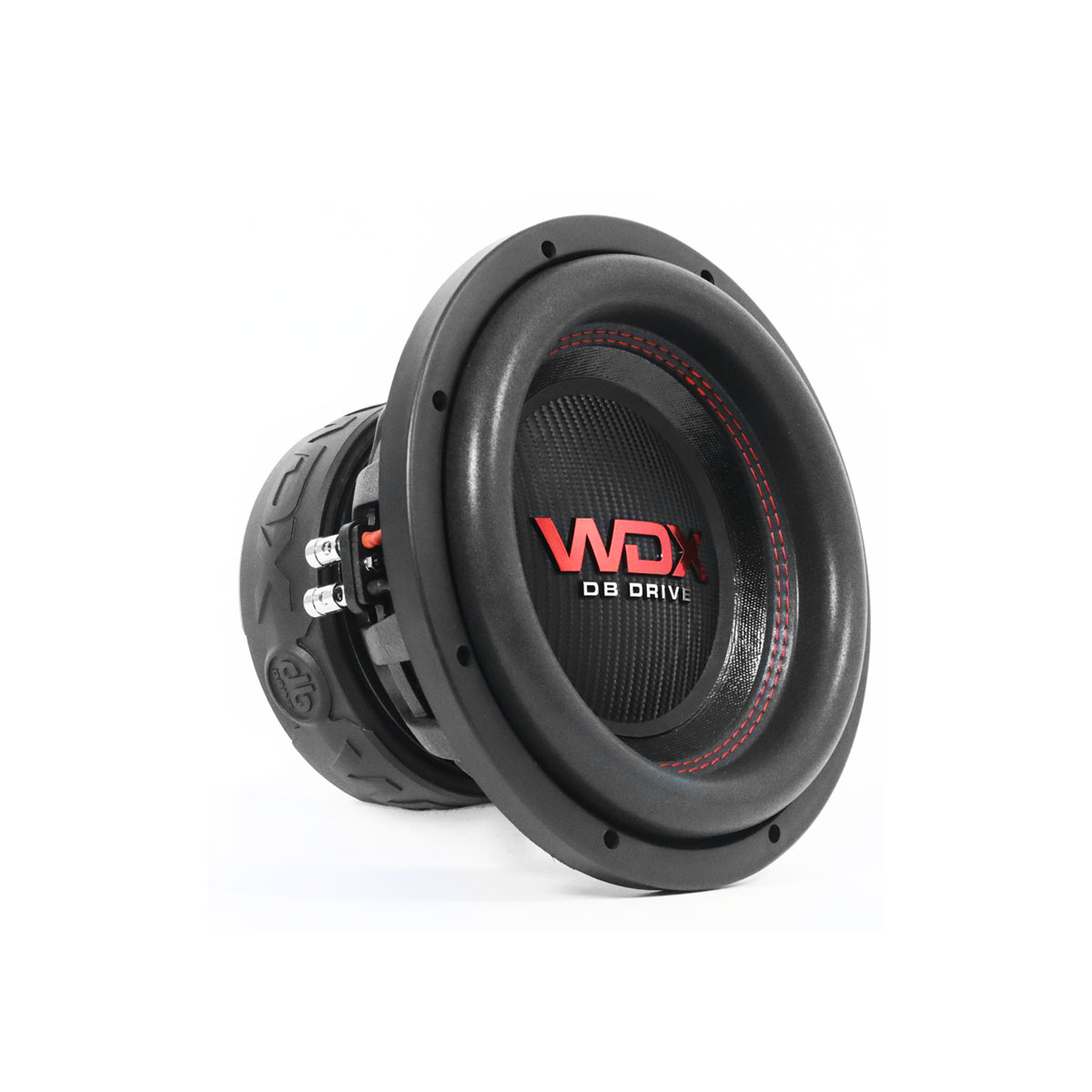

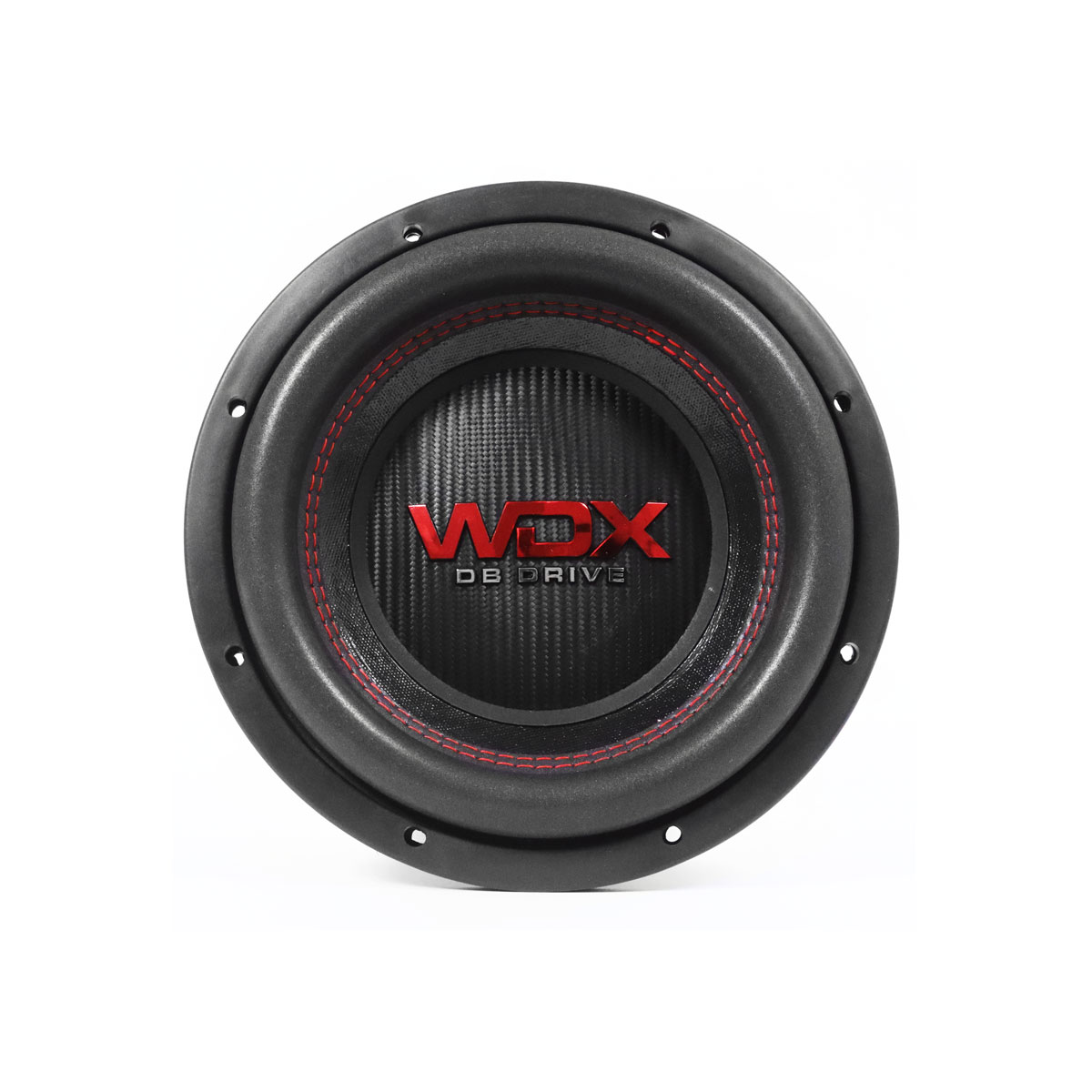

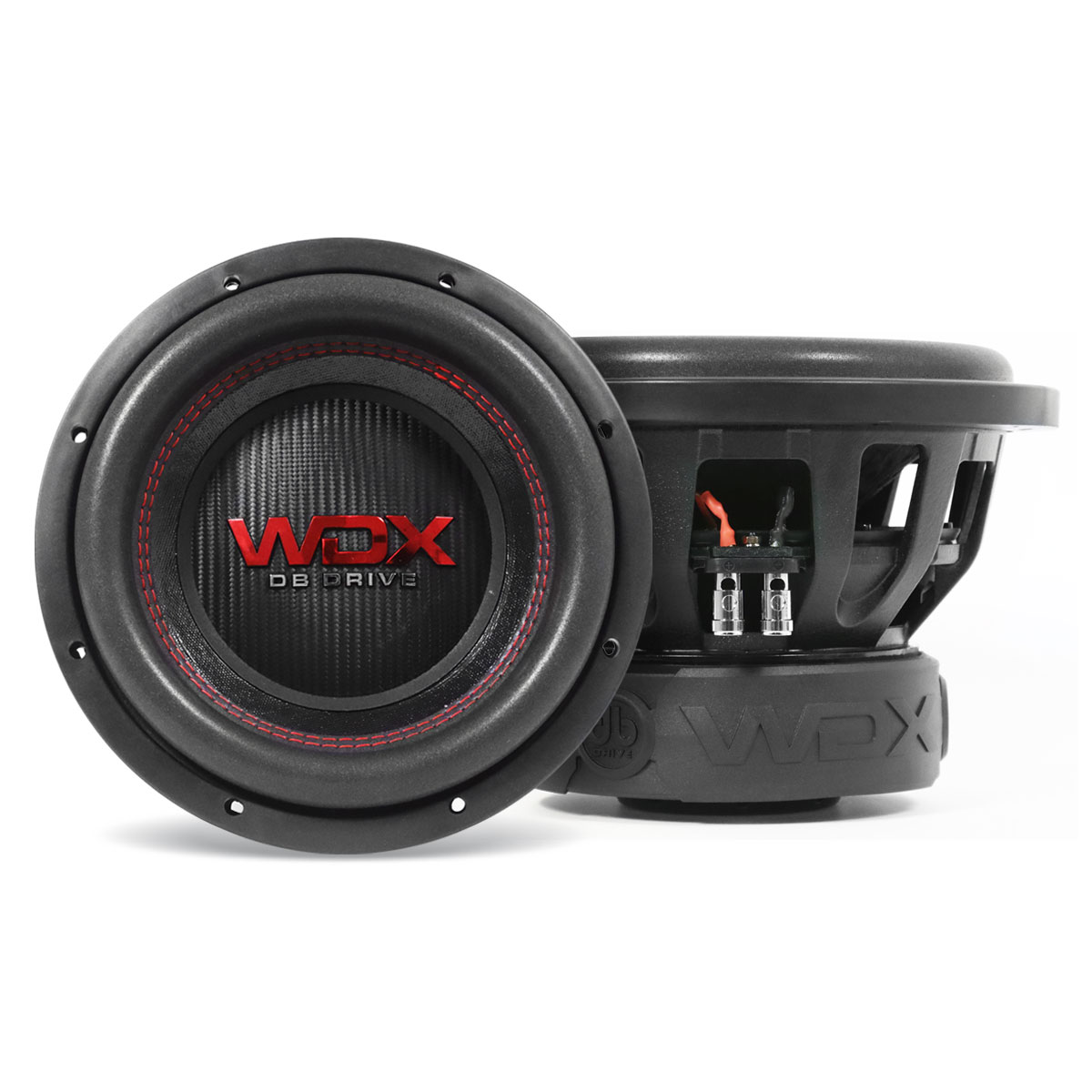

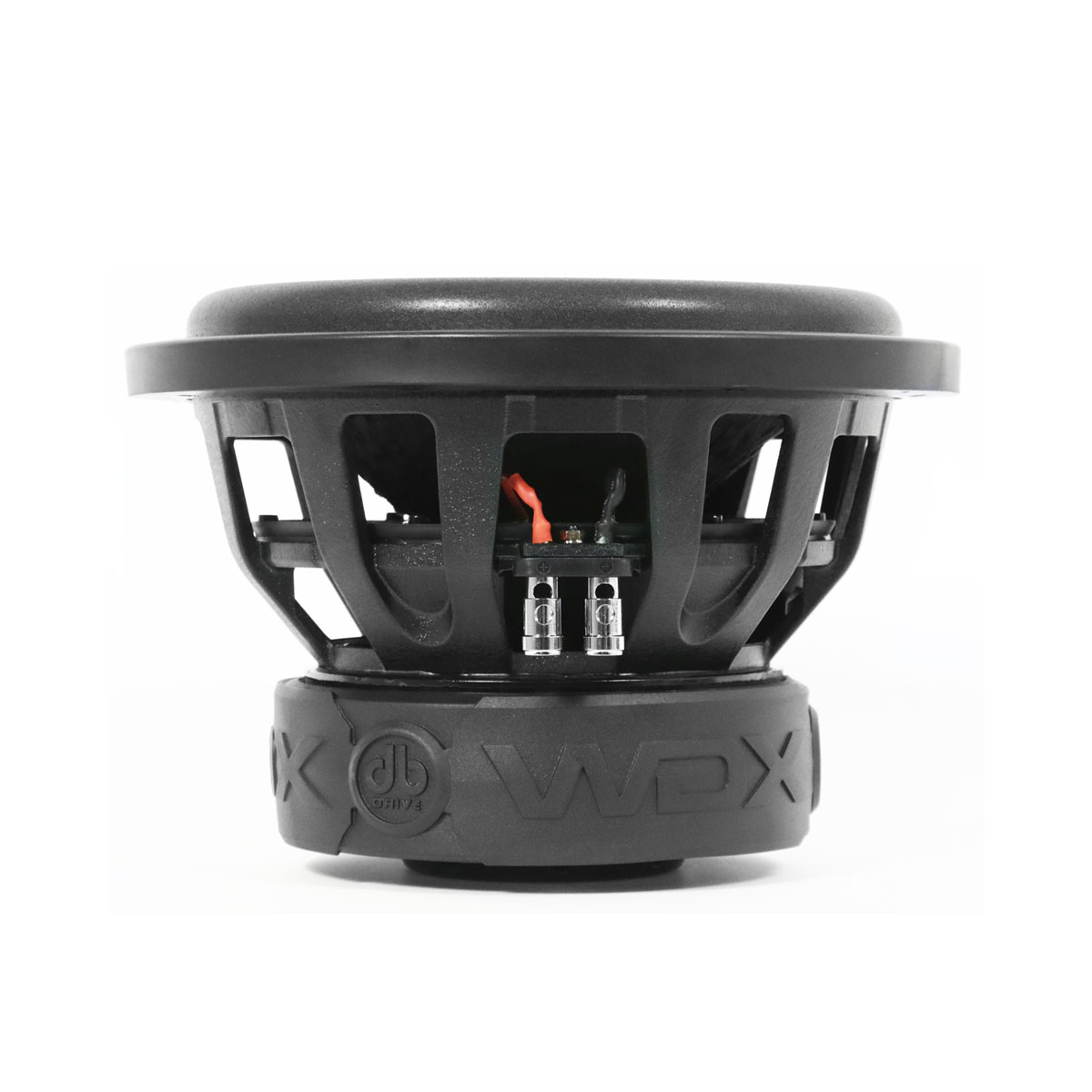

DB DRIVE WDX8G1.4 8″ SUBWOOFER (pair)

DB DRIVE WDX8G1.4 8″ SUBWOOFER (pair) - Image 2

DB DRIVE WDX8G1.4 8″ SUBWOOFER (pair) - Image 3

DB DRIVE WDX8G1.4 8″ SUBWOOFER (pair) - Image 4

DB DRIVE WDX8G1.4 8″ SUBWOOFER (pair)

Winning Bid: $116.00

Up for auction is a pair of WDX series 8″ subwoofers from DB Drive. Don’t have a lot of real estate to work with in your vehicle but need that knock? These are the ones for you!! Bid Now and don’t miss out!! Best of Luck and Happy Bidding!!

Item condition: New

Category: auctions Tags: $1 no reserve car audio auctions, 12voltronics, 6.5' sub, amazon, auctions, car audio, db drive, ebay, sold in pairs, subwoofer, WDX, wdx series

Description
Additional information

Description

The engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double stitched foam surround along with the die-cast aluminum vented basket allow for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.

2″ BASV High Temperature Voice coil
Non-Pressed paper cone
Double stitched foam surround
Dual poly-cotton dampeners
Die-cast aluminum vented basket
Rubber gasket trim ring
Large gauge compression terminals
Protective magnet cover

Recommended Amplifier – WDX1KG2

PHYSICAL STRUCTURE

Outside Diameter (A)	8.76″ (222.50mm)
Cutout Diameter (B)	7.20″ (182.88mm)
Mounting Depth (C)	5.33″ (135.38mm)

GENERAL SPECIFICATIONS
Structure	8″ (20.3cm) Woofer
Dynamic Power Handling	1200 Watts
Nominal Power Handling	600 Watts
Impedance	Dual 4Ω Voice Coil

PARAMETERS
Resonant Frequency (fs)	55.71Hz
D.C. Voice Coil Resistance (Re)	3.2 x 3.2Ω
Mechanical Quality Factor (Qms)	6.234
Electrical Quality Factor (Qes)	0.757
Total Quality Factor (Qts)	0.675
Equivalent Air Volume to Cms (Vas)	3.519 L
Mass of Diaphragm/Coil (Mms)	150.516 g
Force Factor (Bl)	10.550
Sound Pressure Level (SPL)	80.9 dB

RECOMMENDED ENCLOSURES

Woofer Cut-out	7.20″ (182.88mm)
Mounting Depth	5.33″ (135.38mm)
Sealed Box	0.6 ft³ (16.99L)
Vented Box	0.9 ft³ (25.49L)
? Vent Area	7.7 in² (45.6 cm²)
? Vent Length	14.7″ (37.33cm)
? Tuning	38Hz
Dynamic Power	1200 Watts
Nominal Power	600 Watts

Additional information

Weight	32 lbs
