Description
Features
- Class D Technology

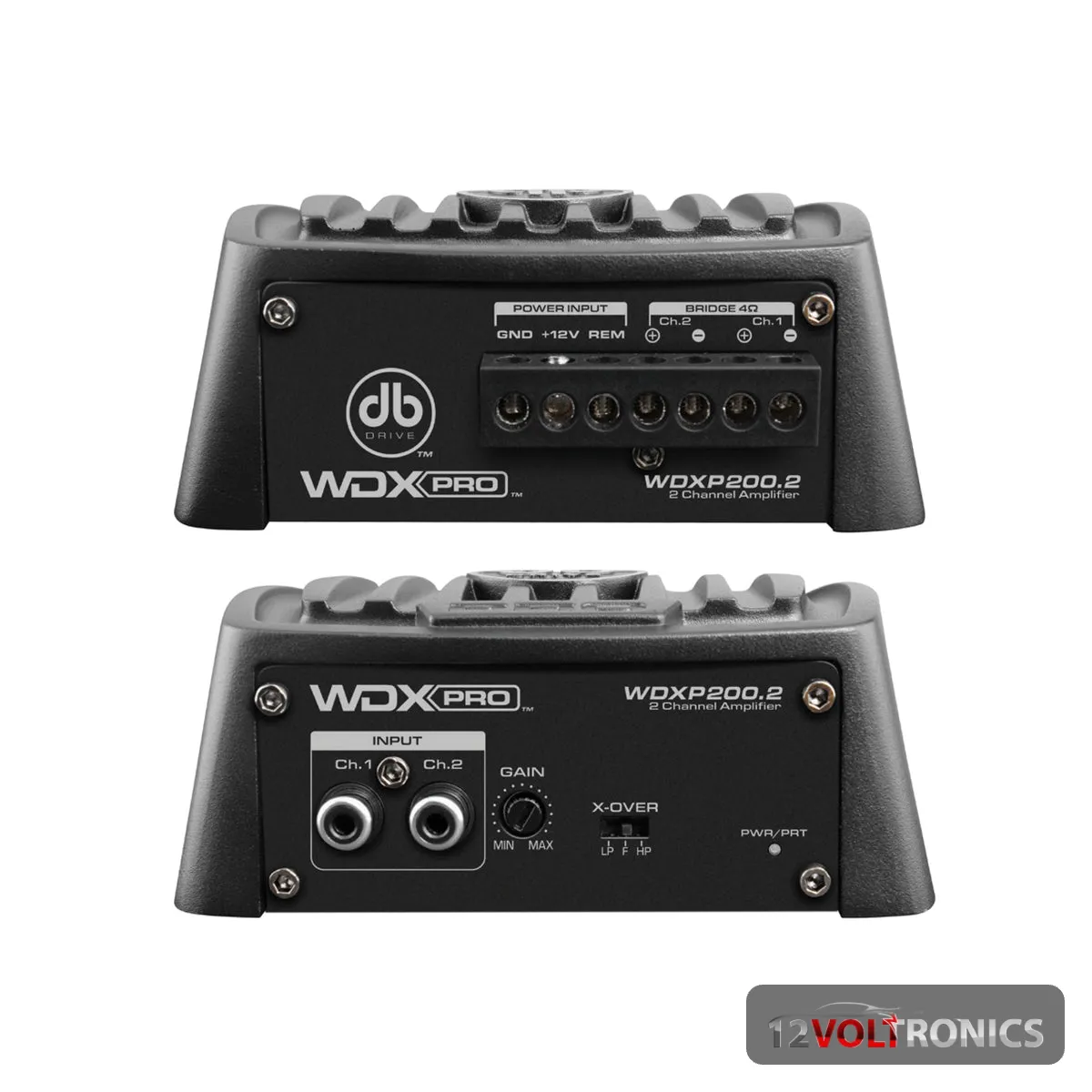

- Direct Connect Speaker and Power Terminals
- PWM Mosfet Regulated Power Supply
- APC – Audio Protection Circuit
- SESI – Signal Evaluation Status Indicator
- CHM – Collective Heat Management
- 2Ω Stereo / 4Ω Bridged Capability
Specifications
• Rated Power: 2 x 100 Watts @ 4Ω
• Rated Power: 2 x 150 Watts @ 2Ω
• Rated Power: 1 x 300 Watts @ 4Ω
• Crossover Slope: @ 12dB
• Low Pass Filter: 150Hz
• High Pass Filter: 150Hz
• Input Sensitivity: .250Mv – 8.5V
• Signal to Noise Ratio: >90dB
DIMENSIONS
- Length – 5” / 127 mm
- Width – 3” / 76.2 mm
- Height – 1.89” / 48.20 mm
