Description
Driven DRW15D4 – 15″ High Performance Subwoofer

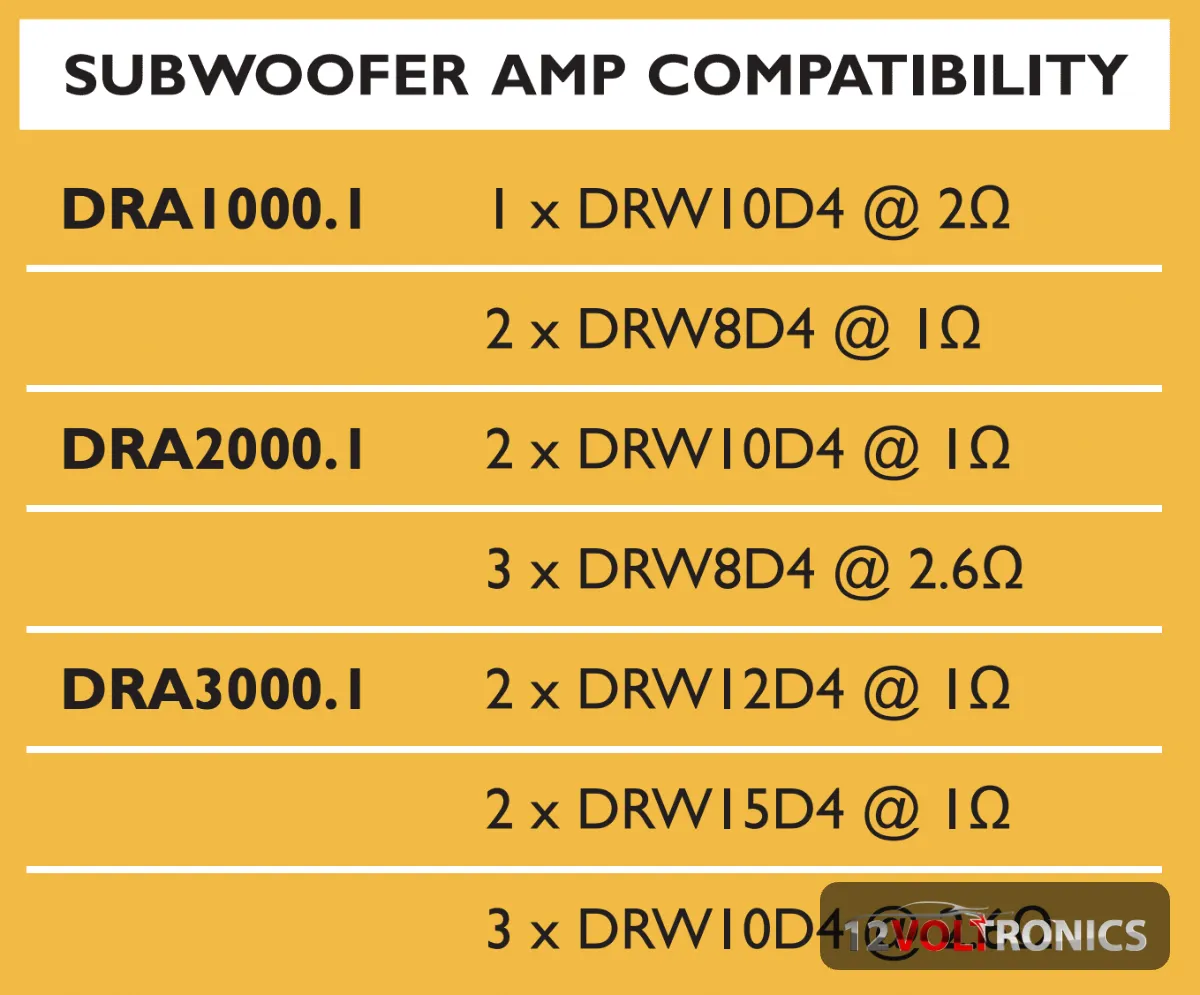

Driven DRW subwoofers are built for high power, with a die-cast aluminum vented basket and a large-diameter voice coil. Pair one with a monoblock amplifier matched to its nominal power rating, and use the recommended enclosure below. See our subwoofer enclosures.
FEATURES
- Non-Pressed Paper cone
- Double stitched foam surround
- Dual poly-cotton dampeners
- Die-cast aluminum vented basket
- Rubber gasket trim ring
- Large Gauge compression terminals
- Protective magnet cover
SPECIFICATIONS
| Outside Diameter | 15.51″ (394mm) |
| Mounting Depth | 7.94″ (201.80mm) |
| Cutout Diameter | 13.78″ (350.13mm) |
| Structure | 15″ (38.1cm) Woofer |
| Dynamic Power Handling | 3000 Watts |
| Nominal Power Handling | 750 Watts |
| Voice Coil | 3″ BASV High Temperature Voice Coil |
| Sound Pressure Level (SPL) | 86.2 dB |
| Woofer Cut-out | 13.78″ (350.13mm) |
| Sealed Box | 3.0 cu. ft. (84.95L) |
| Vented Box | 3.4 cu. ft. (96.27L) |
| • Vent Area | 40 in2 (258.06 cm2) |
| • Vent Length | 18″ (45.72 mm) |
| • Tuning | 39Hz |
| Dynamic Power | 3000 Watts |
| Nominal Power | 750 Watts |
