Description

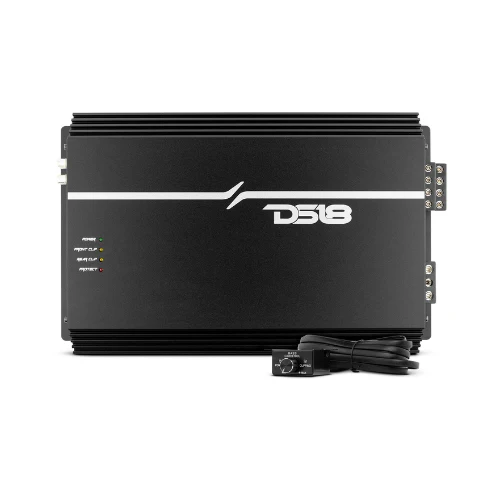

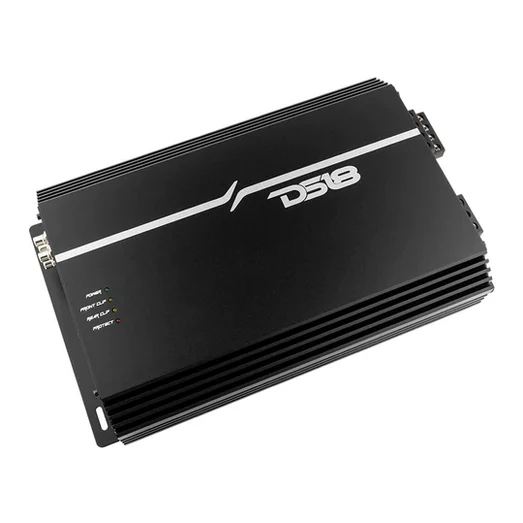

From Korea with Love comes DS18’s EXL-P1200X4, a true marvel of car audio engineering.

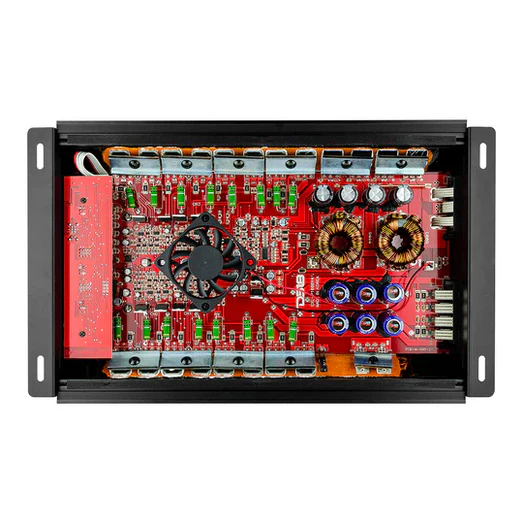

What truly sets this amplifier apart is its optimized Korean circuitry, thoroughly crafted with premium components. The result? Mind-blowing power levels that will leave your subwoofers trembling in awe. The sleek design is not just about aesthetics; it houses a strong heatsink casing and thermal protection circuitry. With this advanced technology at its core, the EXL-P1200X4 maintains an optimal temperature, ensuring longevity and efficiency that goes beyond the ordinary.
But it doesn’t stop there. The EXL-P1200X4 is your gateway to audio perfection. Equipped with a bass knob and precise filters, you have effortless control over every frequency. Fine-tune the signal to suit your preferences, and with the power and clipping indicator, monitor your system’s performance as you cruise along the open road. DS18’s EXL-P1200X4 dares you to create the soundstage of your dreams while immersing yourself in the journey. With large power and ground 4 AWG inputs, along with 8 AWG speaker input terminals, this amplifier is built to withstand the rigors of the road. To ensure optimal operation, we recommend a 160A inline fuse, providing you with peace of mind and uninterrupted performance.
Product Highlights:
- Rated at 600 watts RMS at 4-Ohms bridge, 300 watts RMS at 2-Ohms, 200 watts RMS at 4-Ohms.
- Made with premium Korean components and optimized circuitry to provide massive power levels at maximum efficiency, giving louder and deeper bass.

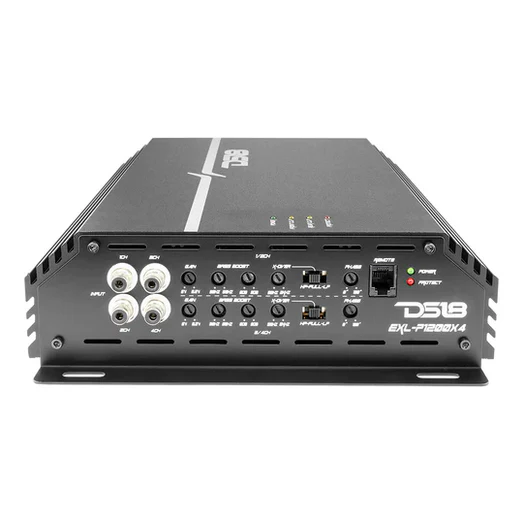

- Precise filters help you easily adjust to your desired frequencies or box tuning. Low Pass filter: 50HZ-2KHZ / 0–180-degree phase selector / Bass boost: 0-9 dB.

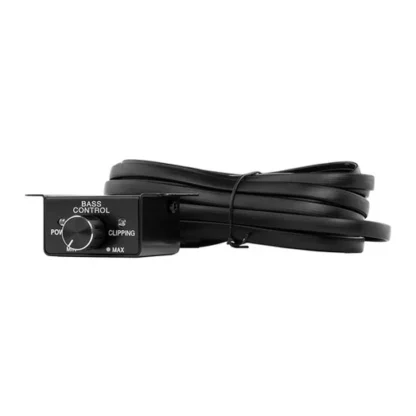

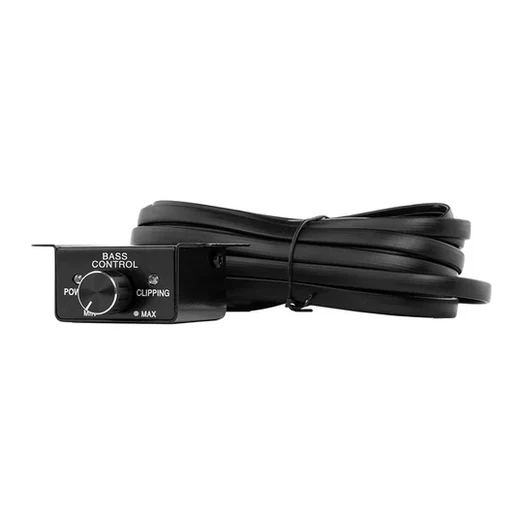

- The included Bass knob lets you adjust your bass as you drive, which also includes a power and clipping indicator so you can monitor your signal and amplifier status.
- Includes a wide voltage operational range of 9-15.5 volts with gain sensitivity adjustable from 200mv to 6v through the high-quality tiffany RCA jacks.
- Built in Clipping, Power, and Protect indicators so you can monitor your amp through all conditions.

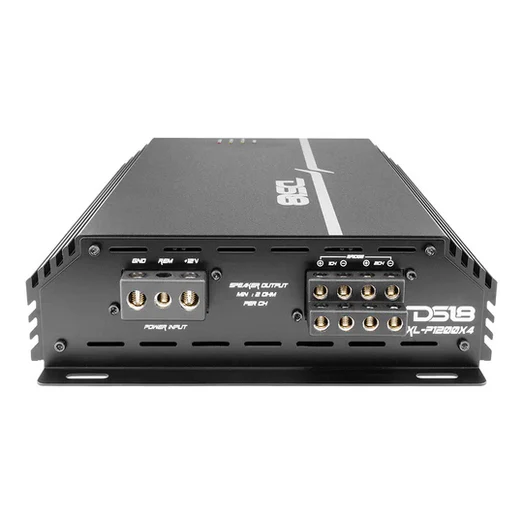

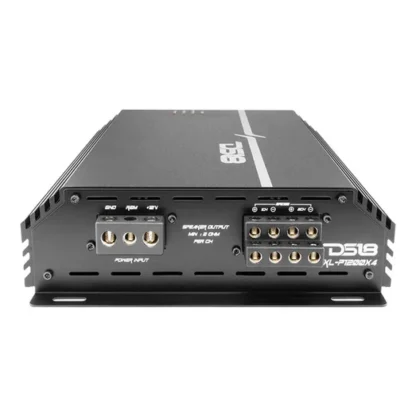

- Large power and ground 4 AWG inputs with 8 AWG speaker input terminals. We recommend a 160A inline fuse for this amplifier for optimal operation.
Specifications:
- RMS Power @ 4 Ohm: 200W x 4CH
- RMS Power @ 2 Ohm: 300W x 4CH
- RMS Power @ 4 Ohm Bridge: 600W x 2CH
- Frequency Response: 20Hz-20KHz
- Signal/Noise Ratio: >98dB
- Efficiency @4 Ohm: >63%
- Damping Factor: 160
- THD %: <0.10%
- Low Level Input Range: 200MV-6V
- Select-able X-Over: Yes, HPF/FULL/LPF
- X-Over Filter Range: 50Hz-2KHz
- Bass Boost Range: 0-+9dB
- Bass Boost Frequency: 30Hz-60Hz
- Infrasonic Filter: No
- Phase Selector: 0-180
- Class: AB (Analog)
- Amplifier Type: Stereo Full – Range
- Channels: 4 CH
- Minimum Impedance: 2 Ohm/CH (4 Ohm Bridge)
- Led Indicator: PWR / CLIP / PROTECT
- Power Input Size: 4 AWG
- Fuse Rating: 160A
- Remote Level Control: Yes – Dash Mount
- Cooling Fan: Yes
- Thermal Protection: Yes > 97°C / 206°F
- Over-Load Protection: Yes
- Dc Output Protection: Yes
- Short Circuit Output Protection: Yes
- Voltage Input Protection: Yes >15.5V
- Clipping Protection: Yes
- Body Color / Finish: Black Aluminum
- Dimensions: 14.25″L x 8.77″W x 2.67″H
- Heat-sink Length: 12.6″ / 320 mm
