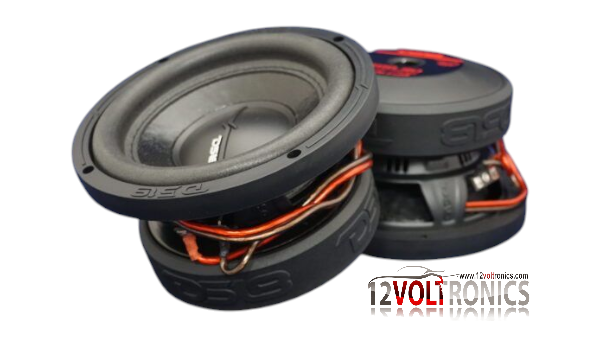

DS18 ZR6.4D 6.5″ 300 W RMS each Subwoofer(pair)

Winning Bid: $96.48

Up for auction is a pair of DS18 6.5″ ZR series Subwoofers. Get this sweet deal for a fraction of its full retail value. Brought to you by 12voltronics.com, where you get your bang for a buck(Sometimes Literally)!!

Item condition: New

Description

DS18 ZR6.4D

6.5” Car Subwoofer 600W 4-Ohm DVC

Introducing the DS18 ZR6.4D 6.5″ Car Subwoofer, a true powerhouse designed to deliver mind-blowing bass and precision performance.
The ZR subline is renowned for its exceptional performance, and the ZR6.4D is no exception. With a robust 600W of MAX power handling and 300W of RMS power handling, the ZR6.4D guarantees a spine-tingling audio experience that will leave you craving for more. Its 1.5-inch high-strength aluminum voice coil ensures that every note is delivered with precision and clarity, elevating your car audio system to new heights. Its 4+4 ohm dual voice coil configuration allows you to match your amplifier’s optimal impedance, providing maximum power transfer and efficiency.

With DS18’s ZR6.4D, you don’t just get exceptional performance; you also get unmatched style and unbreakable durability. The ZR6.4D features a strong stamped basket that not only provides structural integrity but also showcases show-quality DS18 logos on the frame, magnet boot, magnet, and dust cap. Its matte black finish adds a touch of elegance, making it a visually stunning addition to any car audio setup.

With a frequency response ranging from 38Hz to 200Hz and a sensitivity of 82 dB, the ZR6.4D captures every nuance of your music, delivering it with crystal-clear precision. The recommended low-pass crossover of 160Hz ensures seamless integration with your existing audio system, allowing your music to shine in all its glory.
With its striking design, exceptional performance, and versatility, the ZR6.4D is the perfect choice for car audio enthusiasts who demand nothing but the best.

ZR6.4D FEATURES

  • 6.5″ Subwoofer
  • MAX Power: 600 Watts
  • RMS Power: 300 Watts
  • Impedance: 4-Ohm DVC
  • Ferrite Magnet
6.5

      6.5″ DIAMETER

SUBWOOFER

         SUBWOOFER

4+4 OHM

            4+4 OHM

VOICE COIL 1.5

     VOICE COIL 1.5″

FERRITE MAGNET

  FERRITE MAGNET

NON-PRESSED PAPER CONE

NON-PRESSED PAPER CONE

TECHNICAL DATA

SPECS

SKU- ZR6.4D
Nominal Diameter- 6.5″ / 165.1mm
Nominal Impedance- 4 + 4 Ohm
RMS Power Handling- 300W
Maximum Power Handling- 600W
Sensitivity (1w/1m)- 82 dB
Frequency Response- 38-200Hz
Recommended Lo Pass Crossover- 160Hz

MOTOR

Voice Coil Diameter- 1.5″ / 38.8mm
Voice Coil Former Material- Aluminum
Winding Material- Copper
Cone Material- Non-Pressed Paper
Dust Cap Material- PPI
Surround Material- Foam
Basket Material- Steel
Basket Color/Finish- Black Matte
Magnet Material- Ferrite
Magnet Weight- 50 Oz
Displacement Volume- 0.02 ft3

THIELE & SMALL PARAMETERS

Equivalent Volume Vas- 2.79 L
Excursion (one way) Xmax- 15mm
Free Air Resonance Fs- 70 Hz
Mechanical Factor Qms- 3.611
Electrical Factor Qes- 0.86
Total Factor Qts- 0.695
Moving Mass Mms- 44.6g
Compliance Cms- 96.01? m/N
Bl Factor BI- 6.53
Voice Coil Inductance Le- 461.9m mH
Diaphragm Area Sd- 143 Cm2
DC Resistance Re- 3.4 + 3.4 Ohm
Efficiency Bandwidth Product EBP- 81.4

MEASUREMENTS

Overall Diameter- 6.75″ / 171.6mm
Overall Depth- 4.23″ / 107.4mm
Front Mount Baffle Cutout- 5.54″ / 140.8mm
Mounting Depth- 3.49″ / 88.8mm
Motor Diameter- 5.23″ / 133mm
Gross Single Unit Weight (lb)- 7.5
Dimensions W x L x H (Inches)- 7.5 x 7.5 x 5.25



Additional information

Weight 15 lbs
