Description

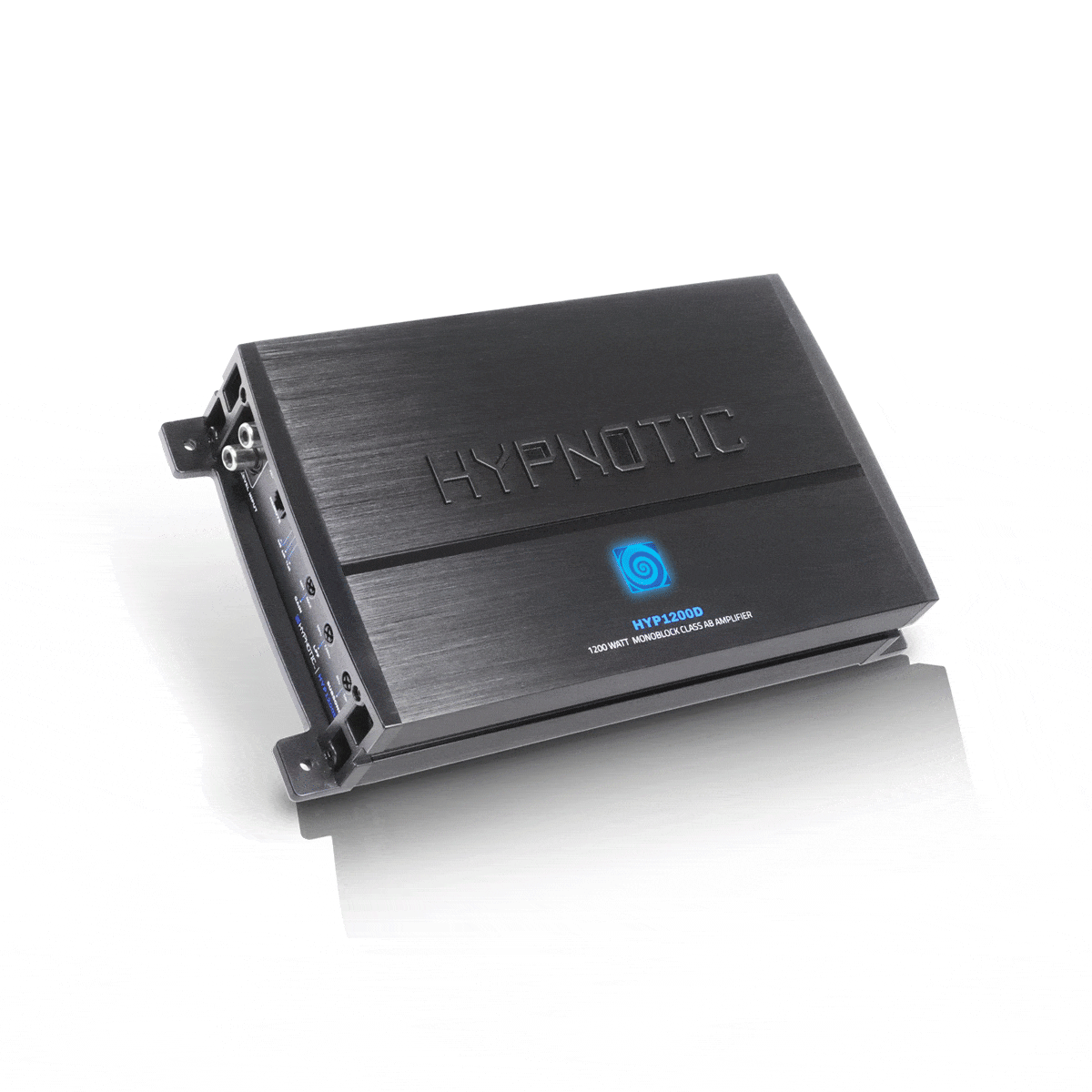

The HYP1200D, HYP1600D, HYP2800D and HYP3600D are equipped with a variable 12db slope Lowpass crossover network and a variable subsonic filter. The mono amps also feature a variable Bass Boost EQ is set at 45Hz.
- Class AB Mono Block Amplifier
- 2 Ohm Stable Capability
- PWM Mosfet Power Supply
- RCA Line Level Stereo Inputs
- 12dB / Variable Low Pass Crossover
- Variable Subsonic Filter
- Selectable Bass Boost @ 45 Hz
- Thermal Protection Circuitry
- Wired Remote Bass Control Included
PHYSICAL STRUCTURE:
| Length (A) | 9.05″ / (230mm) |
| Width (B) | 6.10″ / (155mm) |
| Height (C) | 2.20″ / (55.99mm) |
GENERAL SPECIFICATIONS |
|
|---|---|
| Rated Power @ 14.4 Volts | |
| Dynamic Power Handling | 1 x 1200 Watts @ 1Ω |
| Nominal Power Handling | 1 x 600 Watts @ 2Ω |
PARAMETERS |
|
|---|---|
| Frequency Response | 10Hz – 250Hz |
| S/N Ratio | < 90 dB |
| Low Pass Crossover | 50Hz – 250Hz |
| Subsonic Filter | 0 ~ 50Hz |
| Bass Boost @ 45Hz | 0-6dB – 12dB |
| Input Sensitivity | 200mV ~ 6V |
MONO AMPLIFIER SPEAKER CONNECTION
(DIAGRAM 1)
REMOTE CONNECTION
