Description

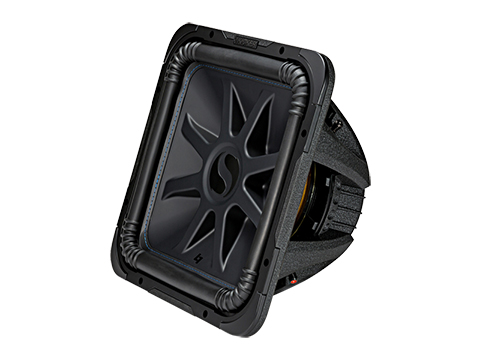

The KICKER® Solo-Baric® L7S™ boasts massive power handling and more cone area than any circular sub. You move more air, so you get more bass.
Square Matters!!
The heavy-duty motor structure includes a large-diameter spider for less flex, longer life and superior accuracy. High-temp voice coil wire winding completes a powerful Comp motor that makes the most of every watt you give it.
Features:
- Dual Four-Ohm Voice Coils
- Injection-Molded Polypropylene Cone
- Patented Corner Ribs Minimize Distortion
- SoloKon™ 360-Degree Back Bracing
- Ribbed Santoprene Surround With Blue Surround Stitching
- UniPlate™ Back Plate And Pole Piece, Plus Perimeter Venting For Excellent Thermal Management
- Thick Tinsel Leads
- Large Ceramic Magnet
- Cast Aluminum Basket
- Satin-Nickel Plated, Spring-Loaded Speaker Terminals
*The Solo-Baric L7S 15-Inch Subwoofer works best with a sealed or ported enclosure and 1,000 watts of recommended power.
Specifications:
Specifications
| Thiele/Small Parameters |
| 44L7S154 T/S Parameters |
| Product Dimension Sheet |
| 44L7S154 Dimensions |
| Size (IN.,CM) |
| 15, 38.1 |
| Impedance (OHMS) |
| 4 DVC |
| Recommended Amplifier Power (watts RMS) |
| 1000 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 2000 |
| Sensitivity (dB 1w/1m) |
| 89.4 |
| Frequency Response (Hz) |
| 18-100 |
| Mounting Depth (IN.,CM) |
| 8-11/16, 22.1 |
| Mounting Cutout, Square (IN.,CM) |
| 13-3/4, 34.9 |
| Min Rec Sealed Box Volume (CU. FT., Liters) |
| 2.0, 56.64 |
| Max Rec Sealed Box Volume (CU. FT., Liters) |
| 6.0, 169.9 |
| Min Rec Vented Box Volume (CU. Ft., Liters)** |
| 3.0, 85.0 |
| Max Rec Vented Box Volume (CU. Ft., Liters)** |
| 6.0, 169.9 |
