Description

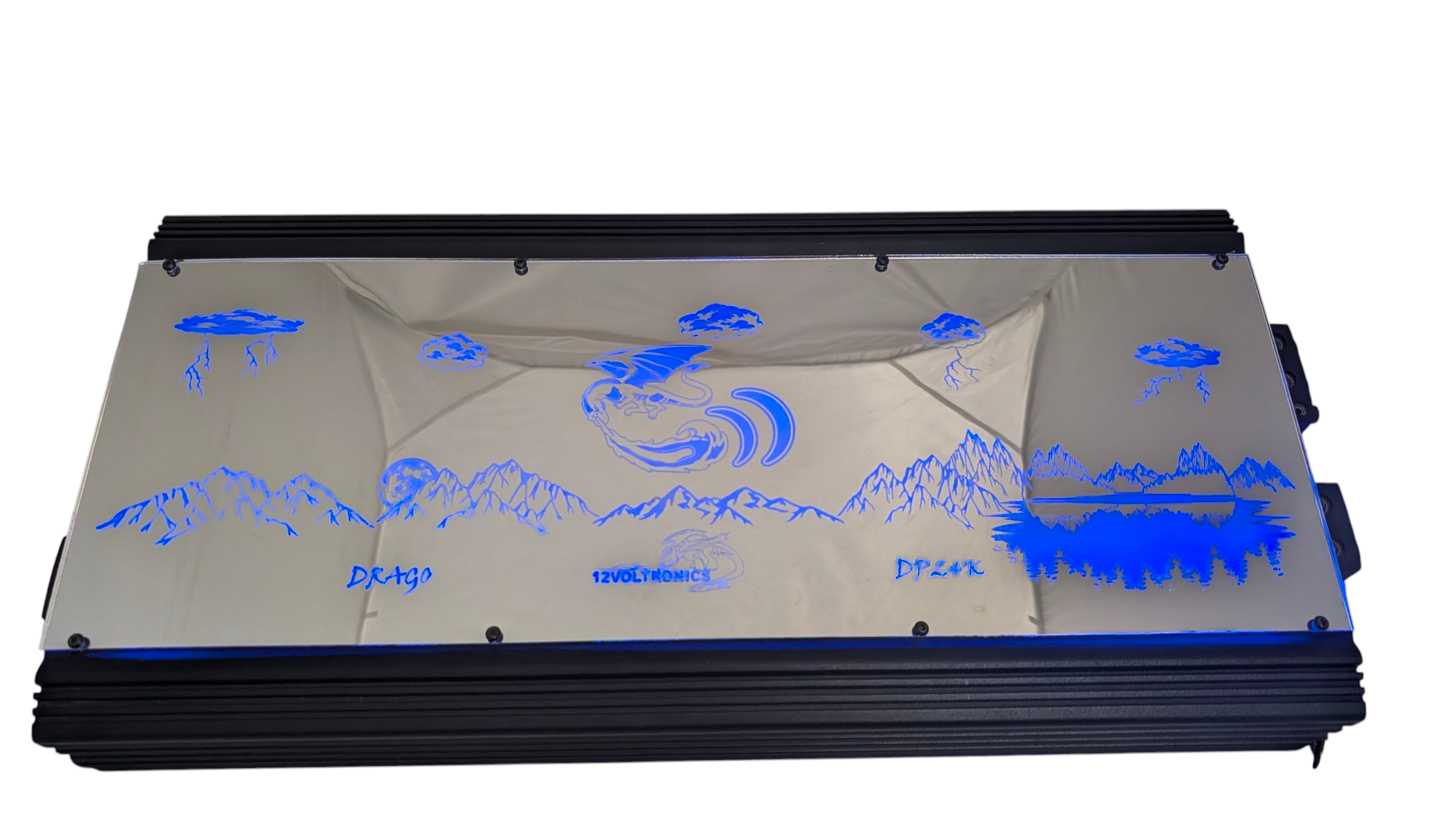

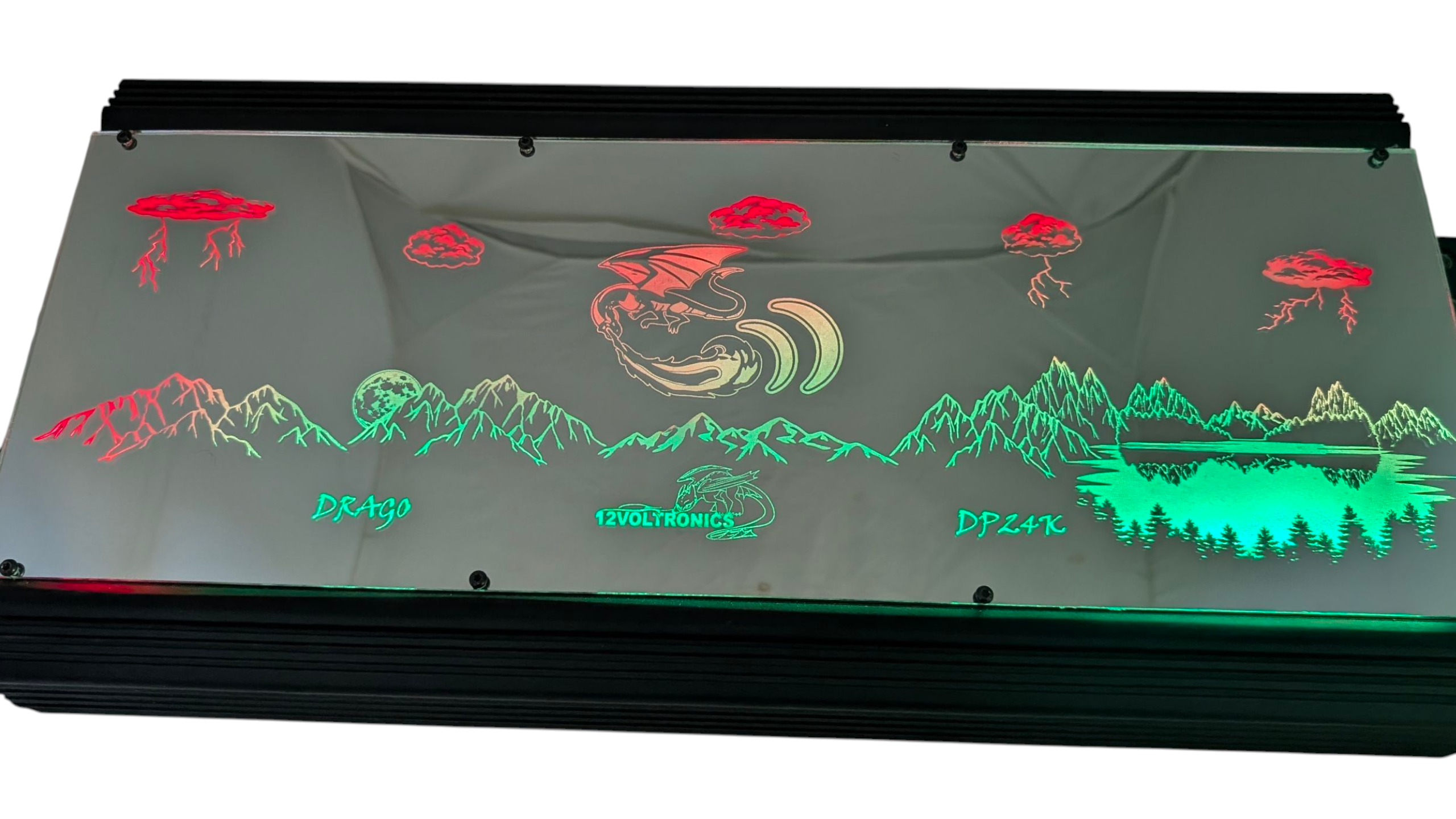

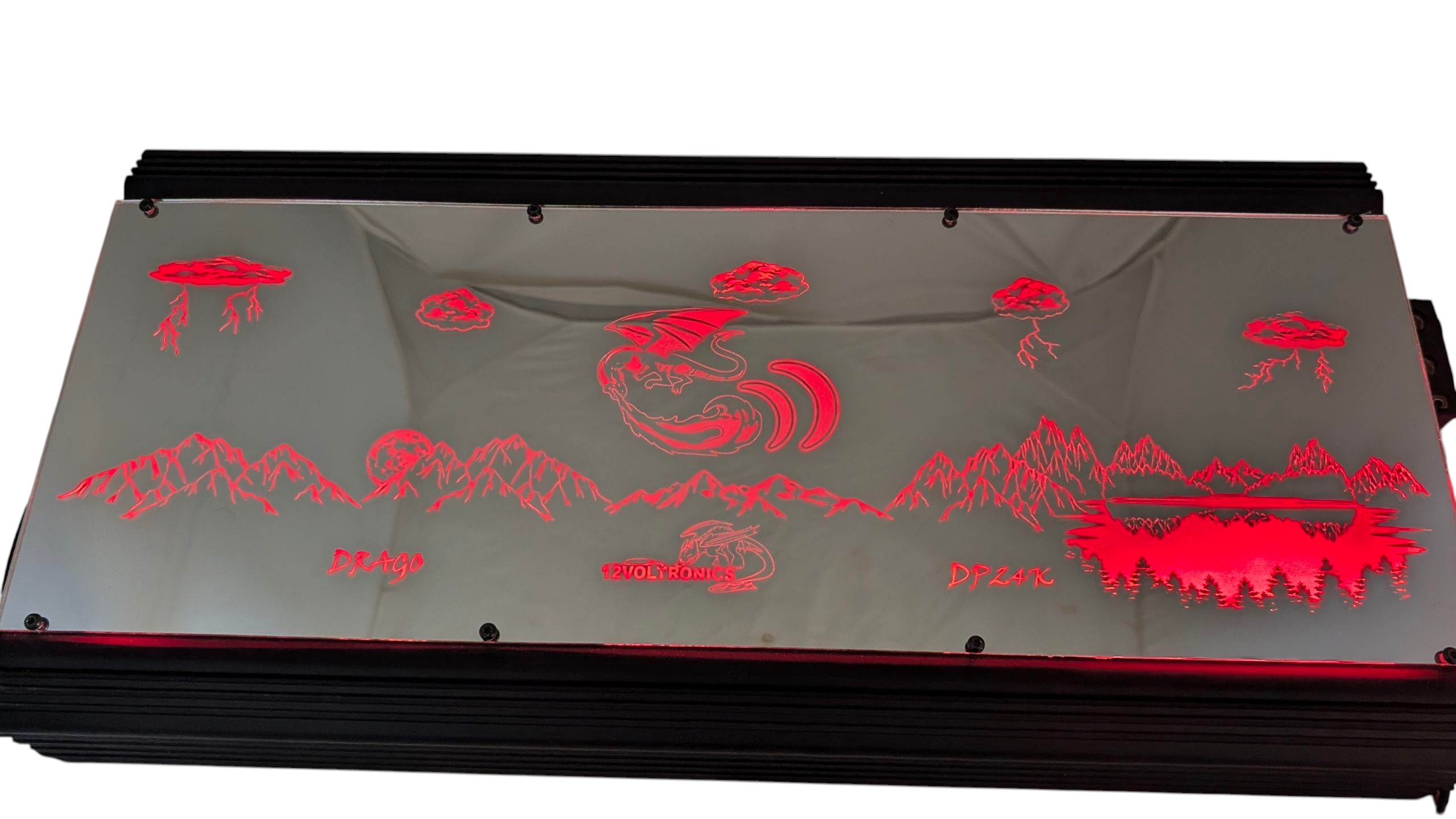

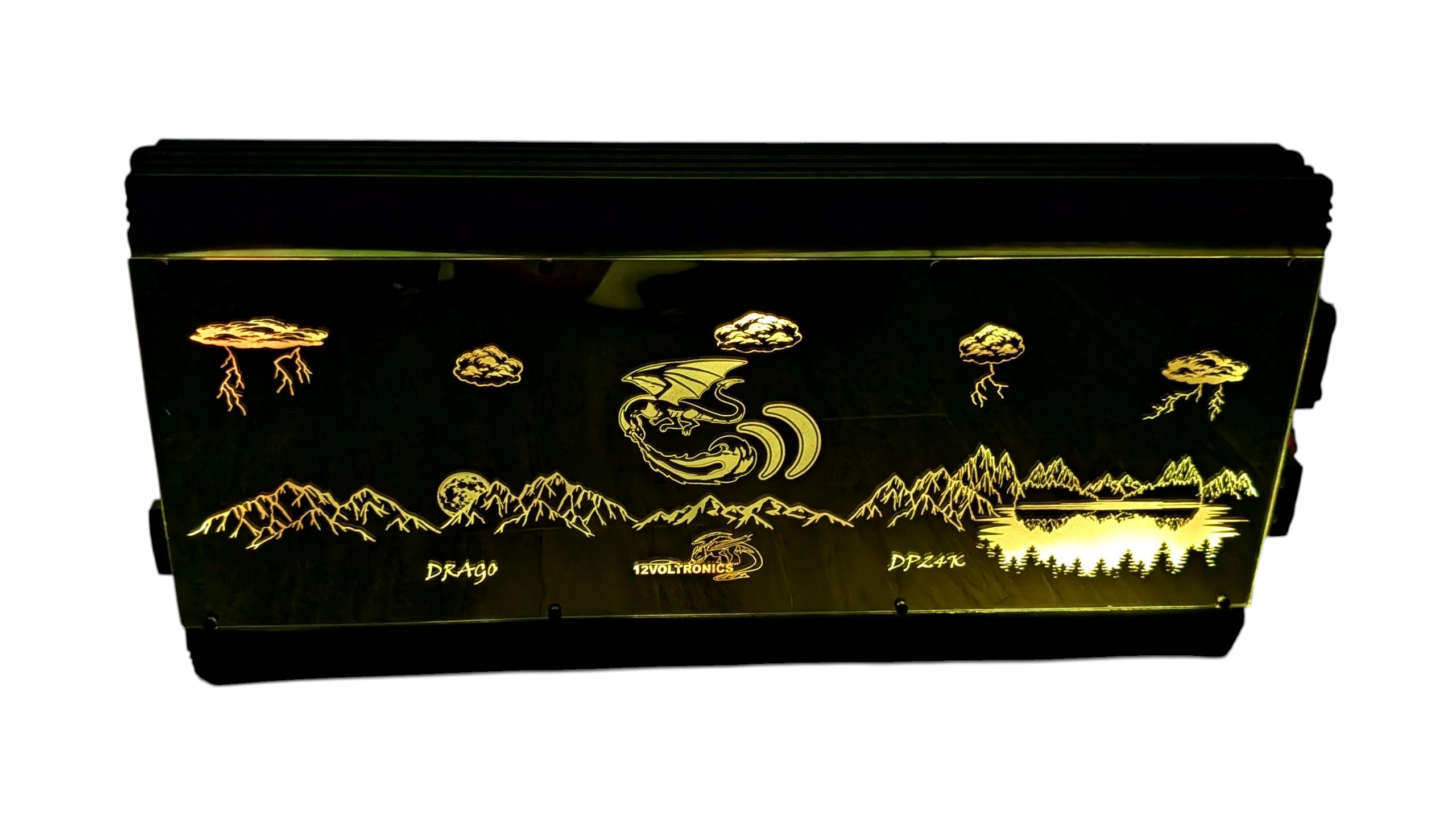

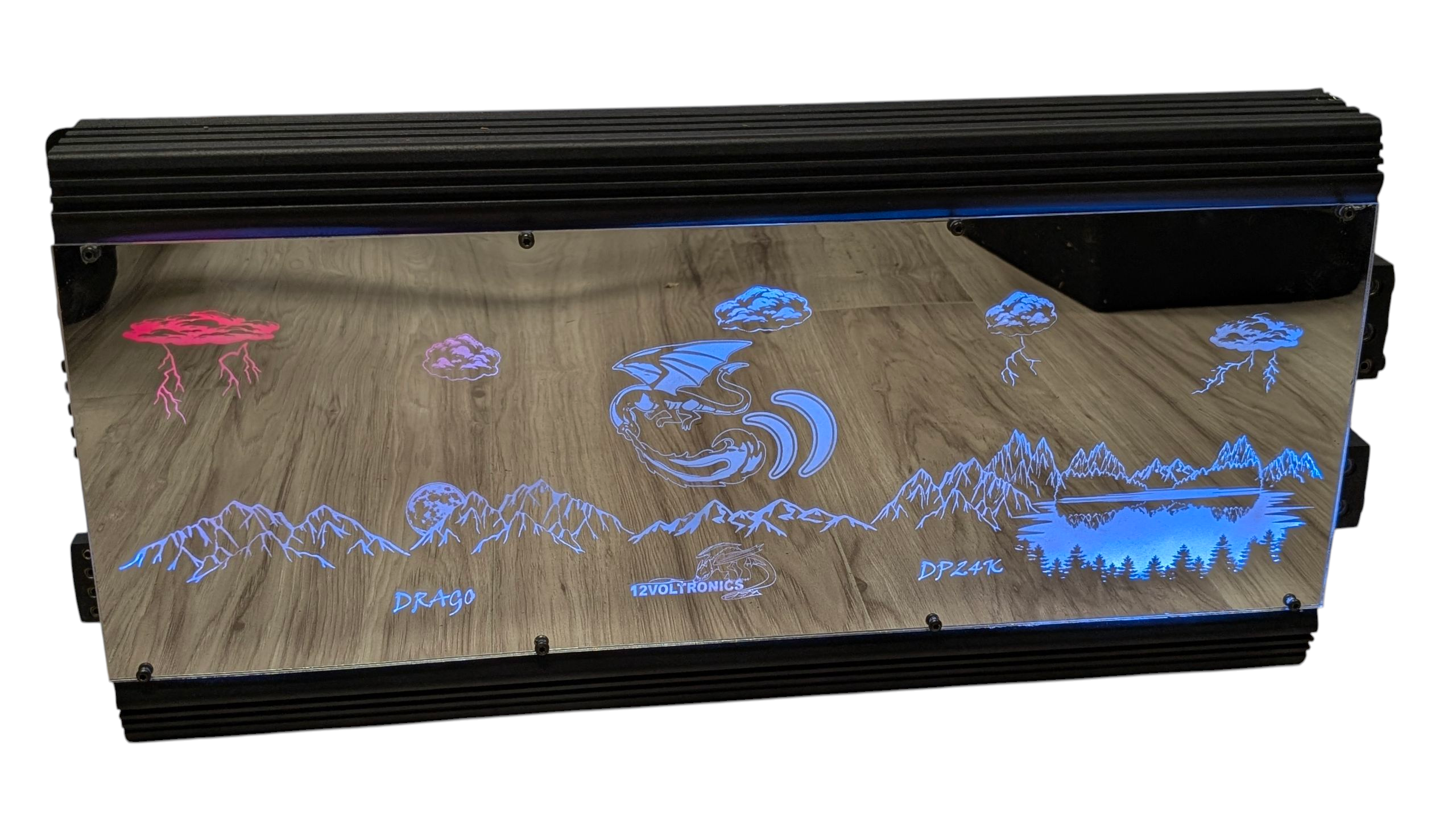

Massive Audio DP24K
Just when you thought that it was too complicated to properly power up megawatt subwoofers; Massive Audio comes along and releases the DP24K Super Amp!
All Digital, Ultra High-Speed Switching, Crystal Clean Full Range with a TRUE power output of 24,192 Watts RMS @ 1 ohm @ 18V. The current draw at 1 Ohm impedance is a staggering 1,550 Amps / 14.4 VDC)
This amplifier measures in at only 2.98” x 10.86” x 24.09” and packs twin full-time exhaust fans to cool its output. The DP24K can do all this and operate at DC 9V—18V. Adjustable Hi Pass and Low Pass crossovers along with a parametric equalizer with a variable 0-12dB bass boost allow for complete control.
Features
- Up to 24,192 Watts of RMS power
- 1 Ohm Stable
- Low, High, Band Pass Filters
- Parametric EQ
- Subsonic Filter Fixed @ 10Hz
- Bass Boost Remote Input (Optional)
- Dual Cooling Fans
- 6 Way Protection with Clip Capacity Limiter LED’s
Power
- 4 Ohm—7,840 Watts
- 2 Ohm—13,450 Watts
- 1 Ohm—19,050 Watts
- 1 Ohm (@18V) —24,192 Watts
Specifications
| RMS @ 1 Ohm 14.4V | 19,050w x 1 |
| PEAK Power | 50,000w x 1 |
| RMS @ 2 Ohm | 13,450w x 1 |
| Bridged RMS | n/a |
| Min Impedance | 1 Ohm |
| Min Ohm Bridged | n/a |
| THD | 0.9% Continuous @ 4Ohm, 100Hz |
| S/N | >90 dB |
| Max Voltage | 18v |
| Max RCA Voltage | 10v (+/- 5%) |
| Freq. Response | 10Hz ~ 12KHz (+/-1dB) |
| Dimensions | 10.86 (in) W x 2.98 (in) H x 24.09 (in) L |
| Bass Remote | Optional |
