Description
SOLD AS EACH
Massive Audio GTR Series Subwoofers – Built for Power, Designed for Precision

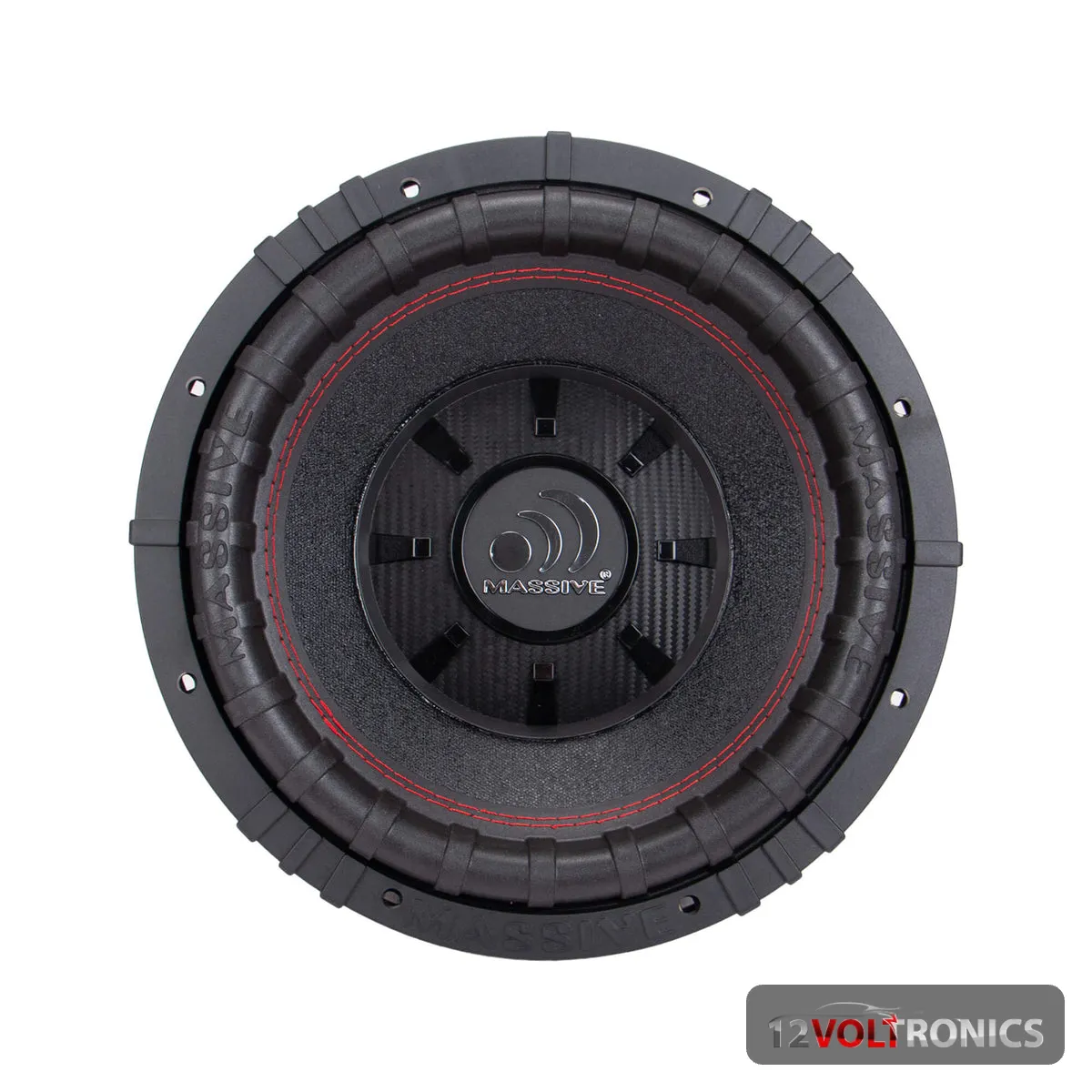

The GTR Series subwoofers by Massive Audio are engineered to deliver extreme performance with audiophile-level sound quality. Each subwoofer features a Textured Non-Pressed Pulp cone, reinforced with dual red stitching for enhanced durability, and a Custom High Roll Foam surround emblazoned with the MASSIVE logo for optimized excursion and control. This precision cone assembly is securely bonded to a rugged, heavy-gauge steel basket finished in an industrial-grade textured paint.
At the core of the GTR Series lies a pair of stacked, high-flux Y30 120oz Strontium Ferrite magnets that generate powerful magnetic force for deep, clean bass. The 2.5″ high-temperature voice coil, proudly made in the USA, ensures consistent performance under extreme loads. A high-quality spider suspension system, combined with durable woven tinsel leads and flexible pure copper wiring, connects seamlessly to a custom terminal case, ensuring reliable signal transfer.
From construction to sound output, the GTR Series embodies Massive Audio’s commitment to premium quality, performance, and unbeatable value.
Manuals & Downloads
FEATURES
- Heavy gauge Steel Basket with Industrial Texture Painting
- Dual Stacked High Flux Y30 120oz Strontium Ferrite Magnets
- Dual Impedance / 2.5″ Hi-Temp Voice Coil – Made in the USA
- Custom High Roll Foam with MASSIVE Logo
- Textured Non-Pressed Pulpe with Resin
SPECIFICATIONS
| Size | 12″ |
| RMS Range | 500w-1000w (800w RMS Ideal) |
| Peak Power | 1500w |
| Cone | Textured Non-Pressed Pulpe with Resin |
| Voice Coil | 2.5″ Dual 2 Ohm |
| Surround | Custom High Roll Foam with MASSIVE Logo |
| Magnet | 120oz |
| Terminals | Terminal Case with Flexible Pure Copper Wire |
| Basket | Heavy Gauge Steel |
| Tinsel Leads | High-Grade Woven Round |
| X-Max | 15mm |
| SPL | 84.5dB |
| FS | 36Hz |
| Ported Box | 13.8″H x 20″D x 13.8″W / 4″ x 10″ Round Port |
| Sealed Box | 1 ft3 |
| Mounting Depth | 7.244″ / 184mm |
| Mounting Diameter | 12.677″ / 322mm |
| Mounting Cut Diameter | 10.708″ / 272mm |
| Net Weight | 24 Lbs. |
