Description
Features

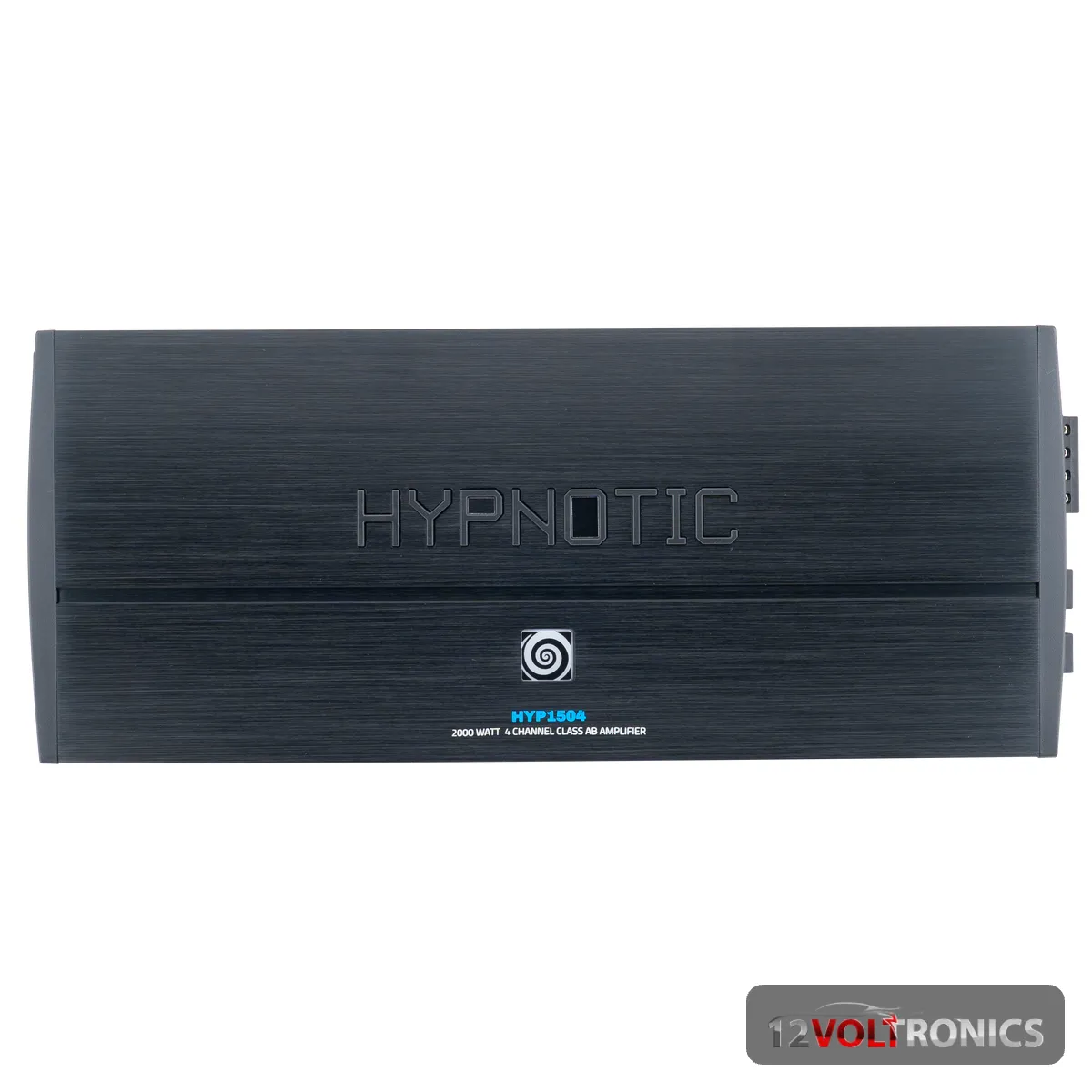

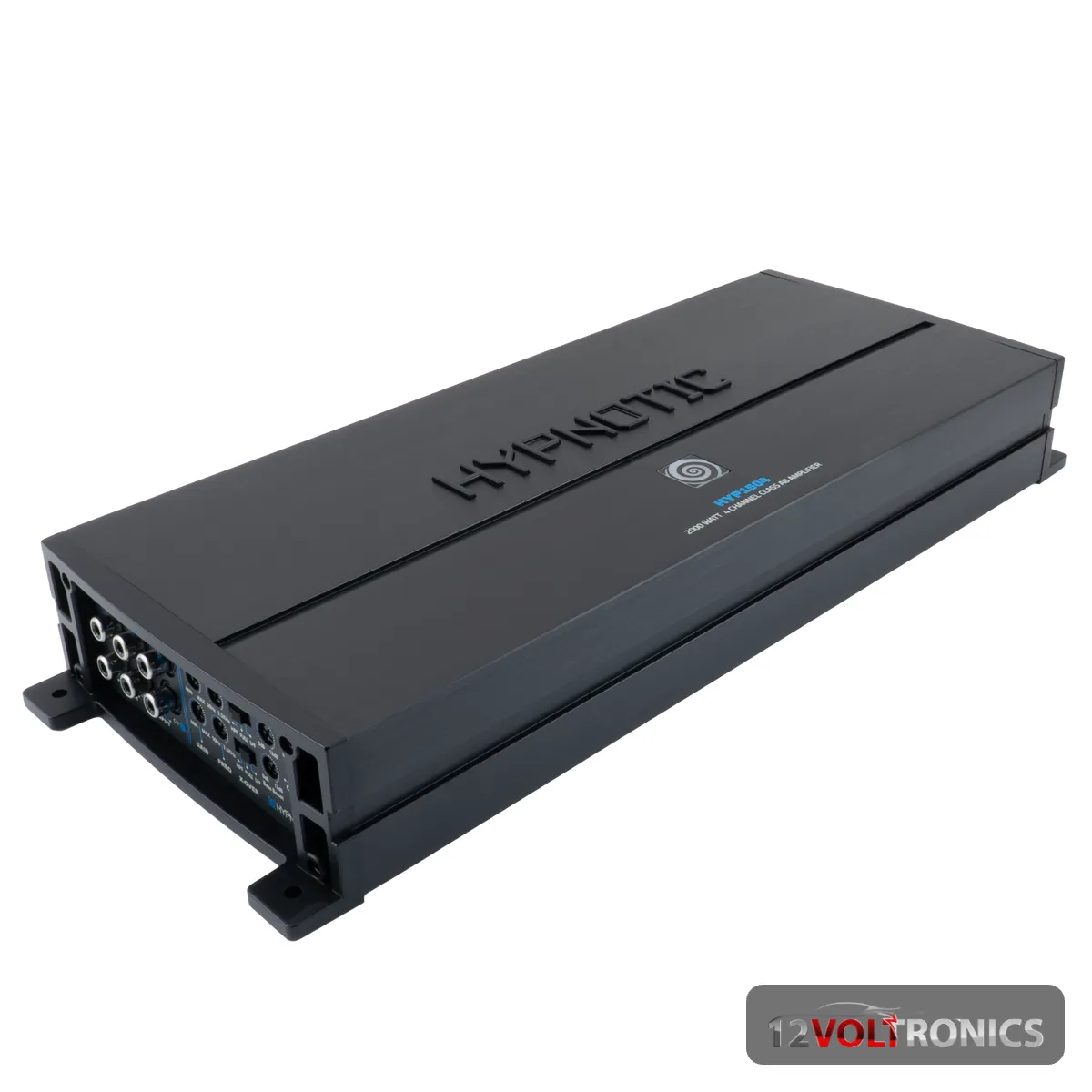

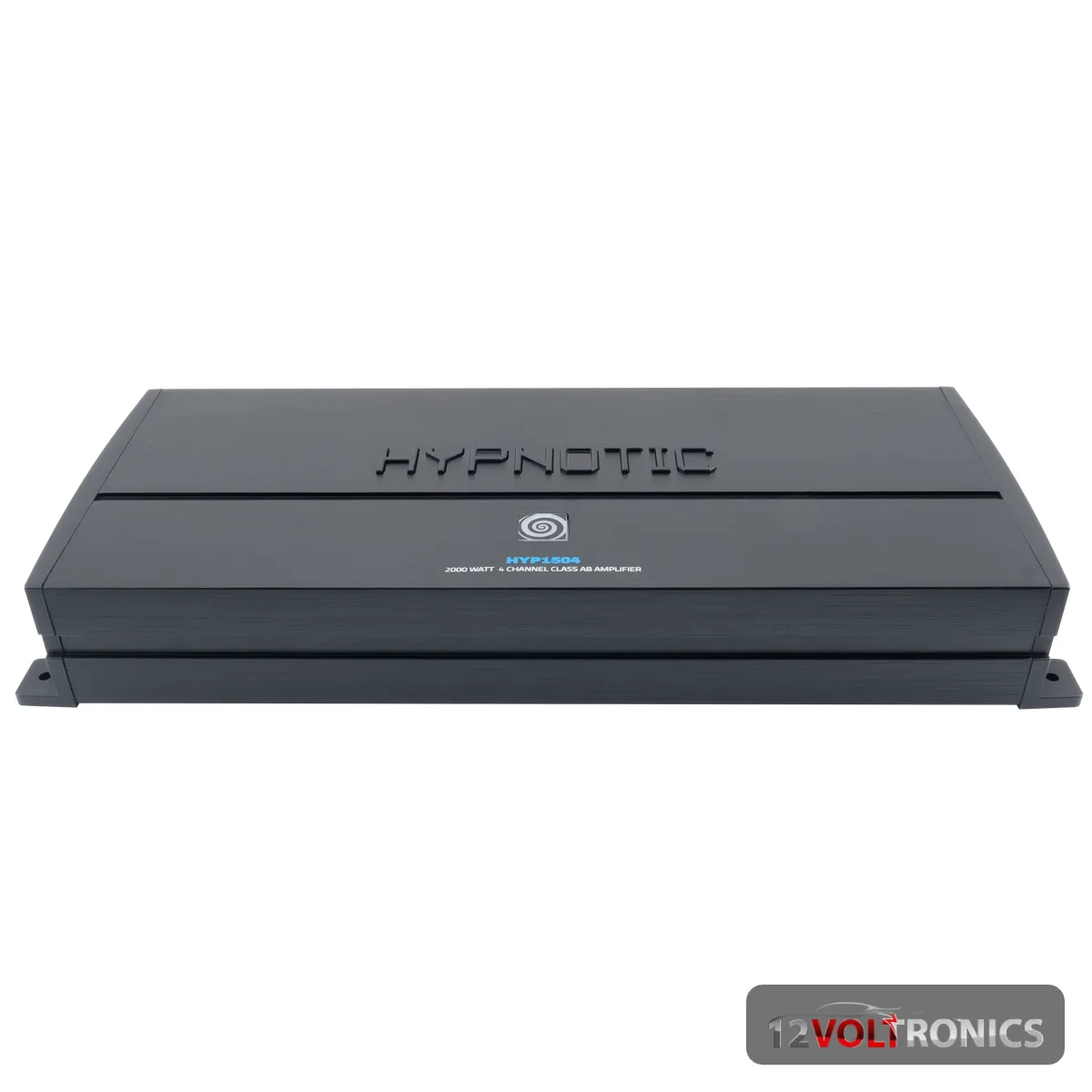

| 4 channel Class A/B amplifier |
| 2000W |
| Features: |
| Class AB circuitry |
| 2 ohm load stereo capability |
| Audiophile grade components |

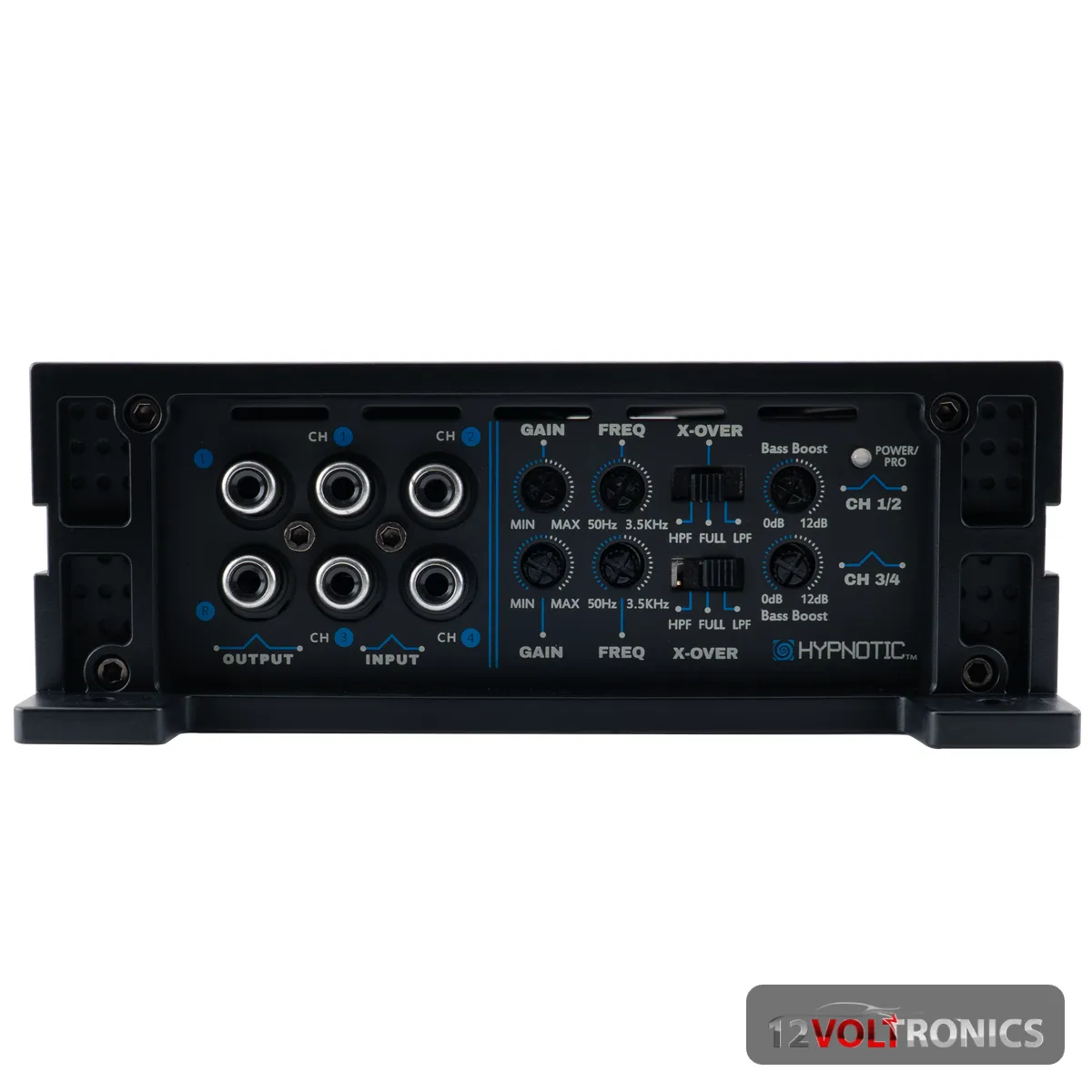

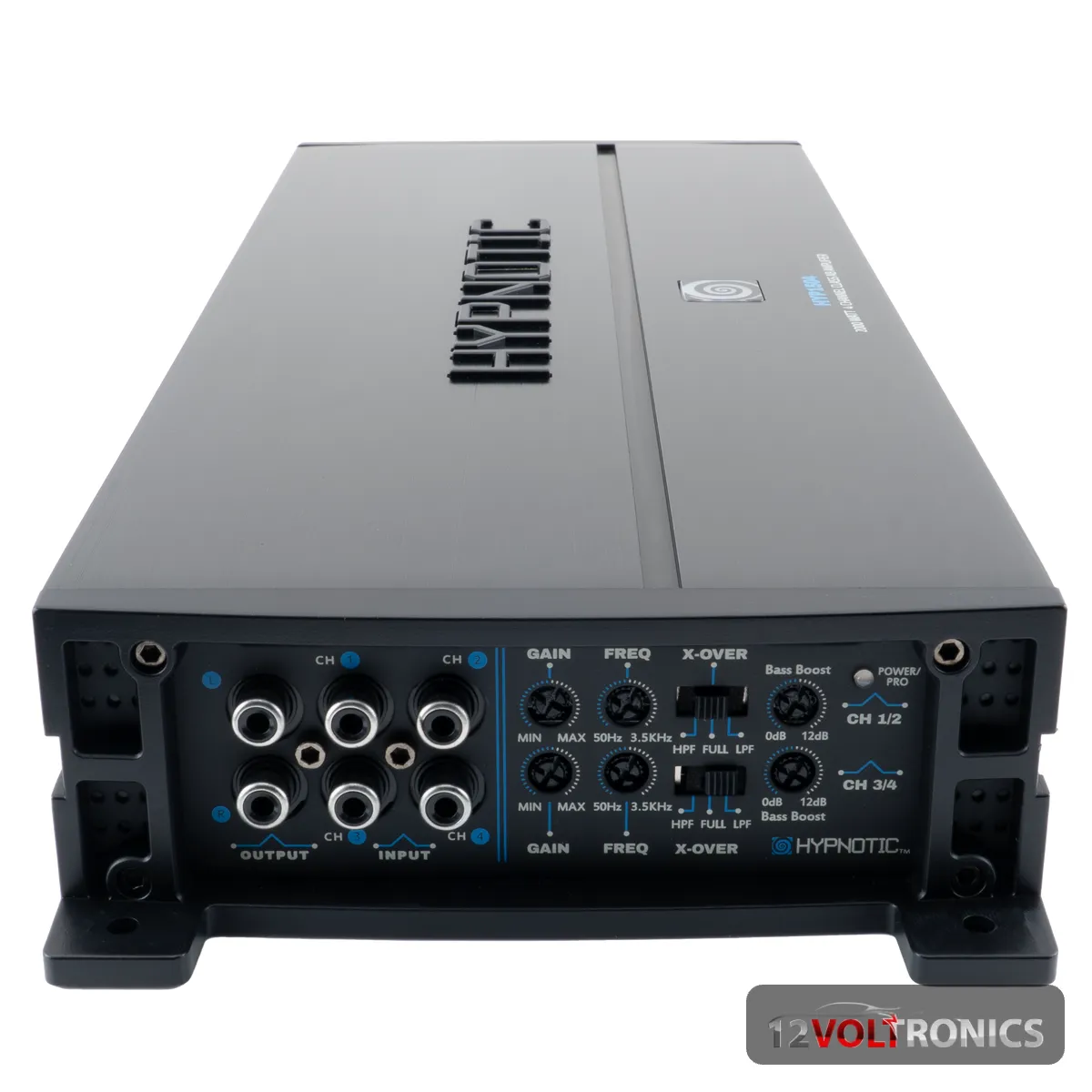

| Variable high pass and low pass x-over |
| Buffered RCA line out |
| High efficiency mosfet design |
| Heat management System |
Specifications
| Dynamic Power 2400 watts | |
| 4 x 150 watts @ 4 ohms stereo | |
| 4 x 300 watts @ 2 ohms stereo | |
| 2 x 600 watts @ 4 ohms bridged | |
| Ch 1-2 High Pass Crossover | 50Hz-400Hz |
| Ch 1-2 Low pass Crossover | 50Hz-400Hz |
| Ch 3-4 High pass Crossover | 50Hz-400Hz |
| Ch 3-4 Low pass Crossover | 50Hz – 400Hz |
| X-over Slope: | 12 dB |
| Bass Boost @ 45Hz | 0-6dB-12dB |
| Input Sensitivity: | 285Mv – 6V |
| Signal to Noise ratio | >90dB |
| THD at Rated Power | <0.5% |
| Length: 13.77″ |
