Description

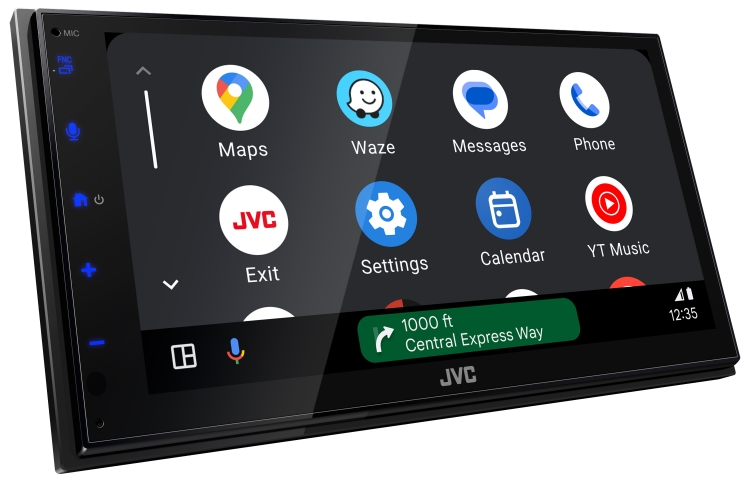

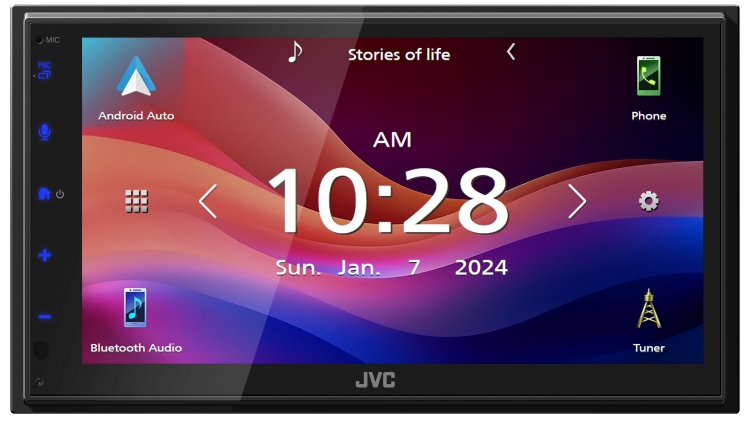

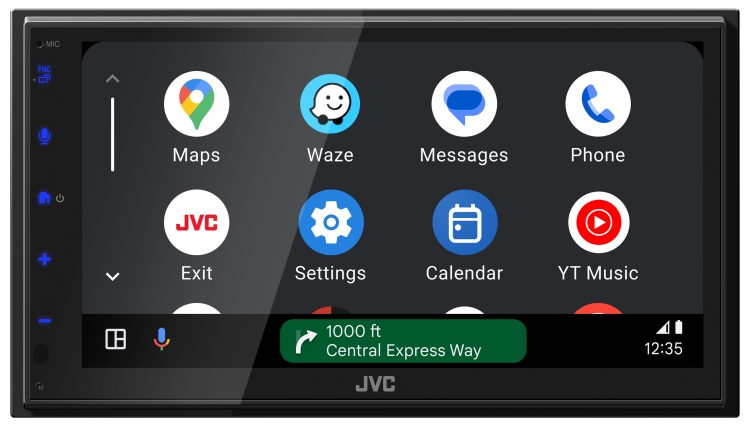

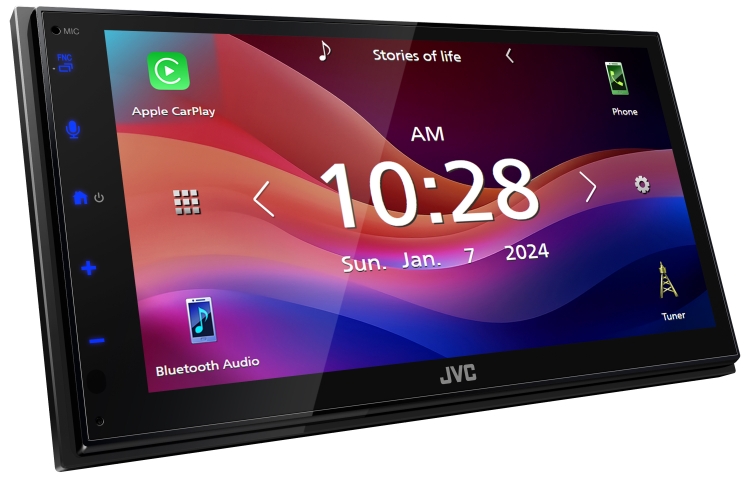

KW-M695BW
Gesture Touch Control
Just touch and move your finger over the screen for various operations corresponding to your finger-movements (for some sources, the Gesture Touch Control is not available). Intuitive control provides safer operation for in-car entertainment.
Capacitive Touchscreen
The Capacitive touch screen provides high clarity and uses a superior touch control, requiring lighter contact with greater accuracy.
-
6.8″ WSVGA LCD Display
The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.
iDatalink Maestro – Advanced Vehicle Integration
iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles. Radar detector information can also be displayed on the screen when used with a compatible K40 radar detector system (sold separately).
SiriusXM Ready
(optional SiriusXM tuner required, sold separately)Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls.
Bluetooth Voice Recognition
Improved Sound Quality with HFP 1.8
Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.
Bluetooth AVRCP1.6 for Versatile Song Selection
In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.
Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Wireless Mirroring
By installing the “MirrorApp+” app, your mobile phone is seamlessly displayed on the receiver’s screen without cable. You can enjoy a variety of apps such as Waze, YouTube™, and Instagram. Touch control is possible from both screen and mobile phone.
*Selected models only
Monitor
- Screen Size
- 6.8″W SVGA
- Touch Panel
- Capacitive
- Key Illumination Color
- Blue
- Dimmer
- Yes
- Multilingual Display
- Yes[4]
Media Playback
- MP3 Compatible with Tag
- USB
- WMA Compatible with Tag
- USB
- WAV Compatible with Tag
- USB
- AAC Compatible with Tag
- USB
- FLAC Compatible with Tag
- USB
- H.264 Compatible
- USB
- WMV Compatible
- USB
- MPEG 1/2 Compatible
- USB
- MPEG 4 Compatible
- USB
- MKV Compatible
- USB
Bluetooth Control
- Built-in Bluetooth[1]
- Yes (Hands-Free MIC Built-in)
- Hands Free Call
- Yes (HFP1.7)
- Audio Streaming & Control (A2DP, AVRCP)
- Yes
- Supported Audio Formats
- AAC / SBC
- Voice Dialing (voice recognition compatible mobile phone required)
- Yes
- Phone Book Access Profile (PBAP)
- Yes
Wi-Fi Control
- Built-in Wi-Fi
- Yes
Android Control
- Android Auto[2]
- Yes (via Wi-Fi or USB)
- Mirroring for Android
- Yes (via Wi-Fi) *Need mirroring App
iPod/iPhone Control
- CarPlay[3]
- Yes (via Wi-Fi or USB)
- Mirroring for iPhone
- Yes (via WiFi) *Need mirroring App
USB
- USB Port
- x 1 (High Speed)
- Position
- Rear
- USB Power Supply
- Yes (2.1A High Current Charging)
Radio Tuner
- SiriusXM Ready
- Yes
- Radio Broadcast Data System (RBDS)
- Yes
- Preset Stations
- 36(FM:24ch, AM:12ch)
- Auto Memory Entry
- Yes
- FM
- Frequency Range
- 87.9 – 107.9MHz
- AM
- Frequency Range
- 530-1,700kHz
Audio
- Maximum Power Output (Front & Rear)
- 50Wx4
- Full Bandwidth Power (Front & Rear)
- 22W x 4
- EQ
- Yes (13-Band Graphic EQ)
- Preset EQ
- Yes (7Preset + 3user)
- Bass Boost
- Yes
- High-Pass Filter/Low-Pass Filter
- Yes/Yes
- Speaker Size Control
- Yes

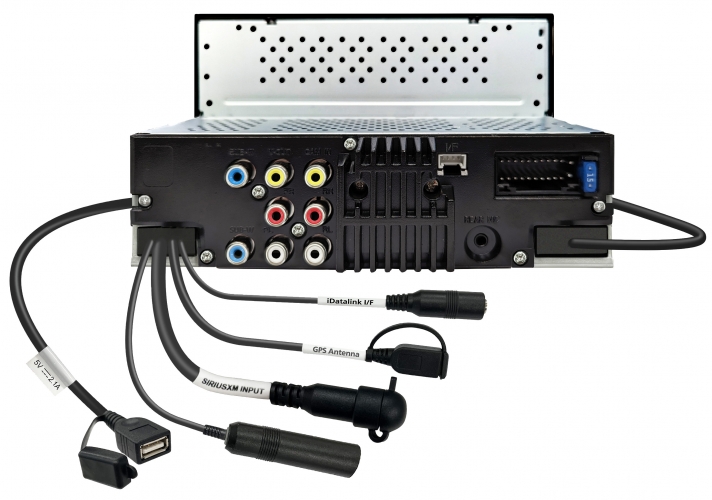

Inputs and Outputs
- Video Out
- x 1 (V:RCA)
- Rear view camera Input
- Yes
- Line Output Terminals
- 3Preouts, Sub WF (Mono, 2ch)
- Pre-output Level/Impedance
- 2.5V / 10k ohms
- Subwoofer Output with Level/Frequency Control
- Yes (Normal / Reverse)
General
- iDatalink Maestro Ready
- Yes

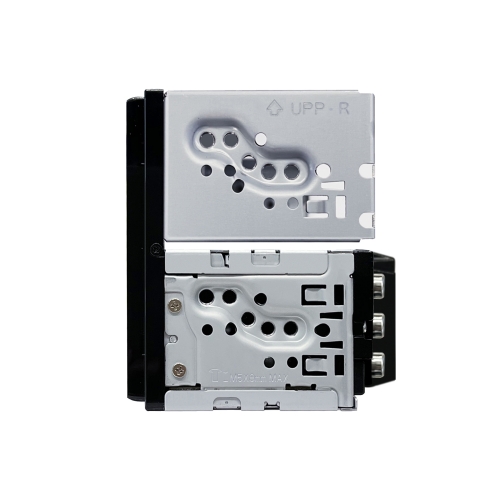

- Short Chassis
- Yes
- Wireless Remote Control
- Optional (RM-RK259 required)
- Steering Remote Control Ready
- Yes
- Dimensions (W x H x D)
- Installation Size
- 7″ x 3-15/16″ x 3-3/8″ (178 x 100 x 85.7 mm)
- Weight
- 2.3 lbs. (1.03kg) Including Trim plate
- Unit weight in individual package
- 1.53kg
[1]Available functions depend on mobile phone.
[2]Compatible Android phone and compatible active data plan required.
[3]Supported on iPhone 6s, 6s Plus, 7, 7Plus, 8, 8Plus, X, XS, XS Max, XR, 11, 11Pro, 11Pro Max, SE(1st G), SE(2nd G),12, 12 mini, 12Pro, 12Pro Max, 13, 13 mini, 13Pro, 13Pro Max, 14, 14Plus, 14Pro, 14Pro Max, 15, 15Plus, 15Pro, 15ProMax. The service may not be available in certain countries.
[4]Multilingual (English / Spanish / French)
