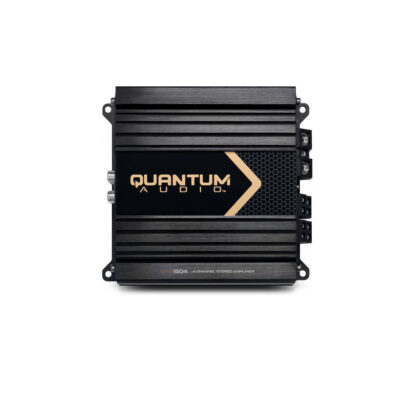

Quantum Audio QRX1504 4 Channel Amplifier

Winning Bid: $13.00

Up for auction is a Quantum Audio by DB Drive 4 channel class D amplifier. Don’t let its size fool you, this amplifier packs a punch. Looking to get loud for the low?? 12voltronics has you covered!! As Always, Good Luck and Happy Bidding!!!

Item condition: New

Category: Tags: , , , , , , , , , , ,

Description

QRX1504


OVERVIEW:

  • 4 Channel Full Range Class D Circuitry
  • 2Ω Stereo load Capability
  • Low level RCA inputs
  • High Level Inputs
  • Selectable Crossover: HPF/LPF/Full
  • Bridgable outputs @ 4Ω load
  • Compatible with any 4/1Ω Loudspeaker
  • High Efficiency Mosfet Design
  • Heat Management System

Length (A) 6.05″ / (153.7mm)
Width (B) 5.53″ / (140.5mm)
Height (C) 2.33″ / (59.2mm)



GENERAL SPECIFICATIONS
Rated Power @ 14.4 Volts
Dynamic Power Handling 4 X 150 Watts @ 4Ω
Dynamic Power Handling
4 x 300 Watts @ 2Ω
Bridged
2 x 600 Watts @ 4Ω
PARAMETERS
THD at Rated Power <0.5%
Bandwidth (-3 dB) 18Hz- 22KHz
Damping Factor (1k Hz @ 4Ω) – 100
Signal to Noise Ratio  >90dB
Input Sensitivity 285Mv – 6V
Crossover filter slope in Stereo 12dB
Channel 1-2 HP filter range 40Hz-3KHz
Channel 1-2 LP filter range 40Hz-3KHz
Channel 3-4 HP filter range 40Hz-3KHz
Channel 3-4 LP filter range 40Hz-3KHz

MONOBLOCK AMPLIFIER SPEAKER CONNECTION (DIAGRAM 1)

MONOBLOCK AMPLIFIER SPEAKER CONNECTION (DIAGRAM 2)

REMOTE CONNECTION

Additional information

Weight 4 lbs
Dimensions 10.5 × 7.5 × 3.75 in
