Description

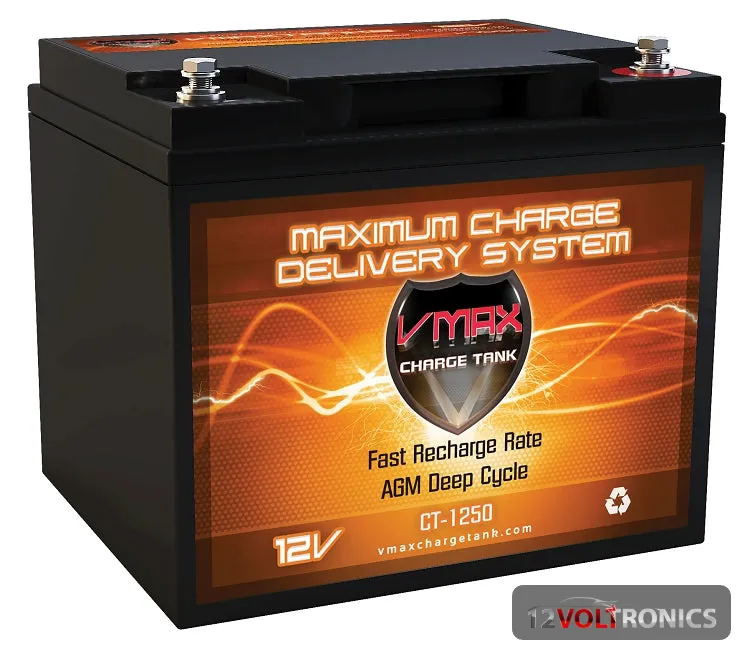

VMAX (CT1250) 12V BATTERY 1250W RMS 2500W MAX
SPECIFICATIONS:
- Nominal Voltage: 12V
- 20Hr Capacity: 50AH
- Burst Amps: 1300A
- Terminal Posts: 8mm (included)
- Charging Current*: 5A-15A
- Charging Voltage: 14.4-14.9V
- Float Voltage: 13.5V-13.8V
- Weight: 32lb
- Dimensions: 7.82″w x 6.6″d x 6.7″h
RECOMMENDED CHARGING OPTIONS:
- AC Chargers: Any Quality Brand AGM- Smart & Microprocessor controlled- charger with the recommended specs above can be used. Battery Charger Guide
- Vehicle Alternator: 14V-15V.
- RV converter: 14V-15V.
- Solar Panel: 60W-225W.
- Wind Turbine: 60W-225W.
- Charge Controller:10A-UP.
* Warning: Do not use a charger with smaller amperage than the recommended Charging Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER as a charger.
OPERATING TEMPERATURE RANGE:
- Discharge: -4~140F
- Charge: 14~140F
- Storage: -4~140F
TEMPERATURE COMPENSATION:
- Cycle use: -30mV/C
- Standby use: -20mV/C
