Description

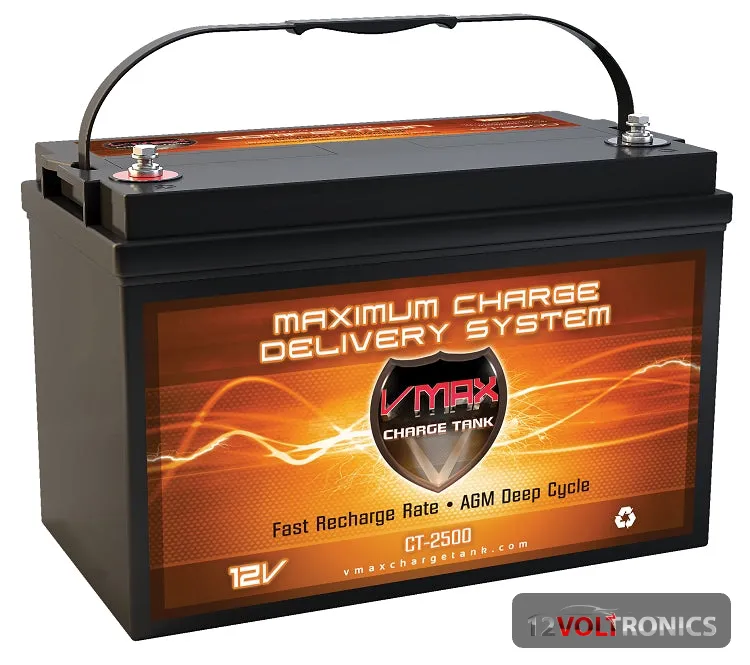

VMAX (CT2500) 2500WRMS / 5000WMAX AGM AUDIO SYSTEM CHARGE TANK
SPECIFICATIONS:
- Nominal Voltage: 12V
- 20Hr Capacity: 125AH
- Burst Amps: 2500A
- Terminal Posts: 8mm (included)
- Charging Current*: 8A-35A
- Charging Voltage: 14.4-14.9V
- Float Voltage: 13.5V-13.8V
- Weight: 75lb
- Dimensions: 13″w x 6.8″d x 8.7″h
* Warning: Do not use a wet battery constant current charger to recharge any VMAX battery.*
RECOMMENDED CHARGING OPTIONS:
- Smart / Microprocessor controlled charger
- Vehicle Alternator: 14V-15V.
- RV Converter: 14V-15V.
- Solar Panel: 175W-450W.
- Wind Turbine: 175W-450W.
- Charge Controller: 20A-UP.
OPERATING TEMPERATURE RANGE:
- Discharge: -4~140F
- Charge: 14~140F
- Storage: -4~140F
TEMPERATURE COMPENSATION:
- Cycle use: -30mV/C
- Standby use: -20mV/C
