FEATURES

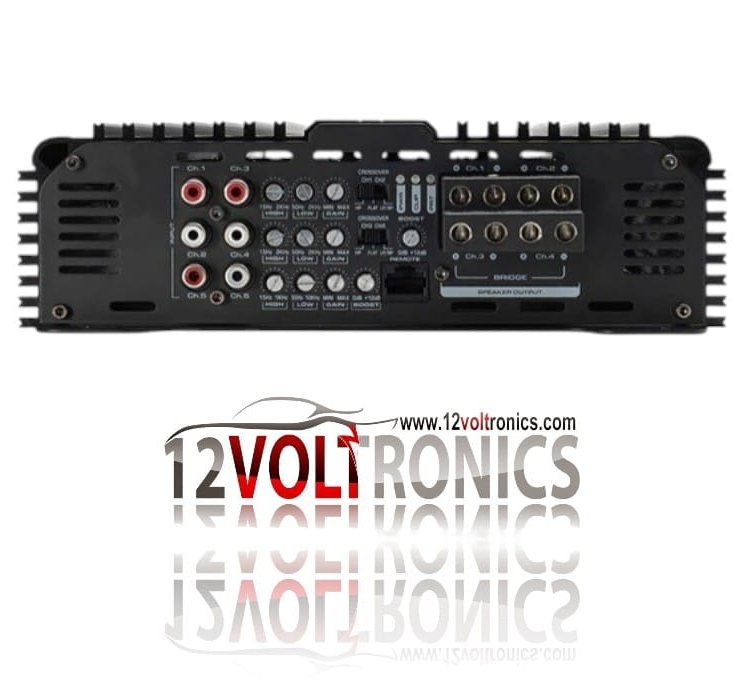

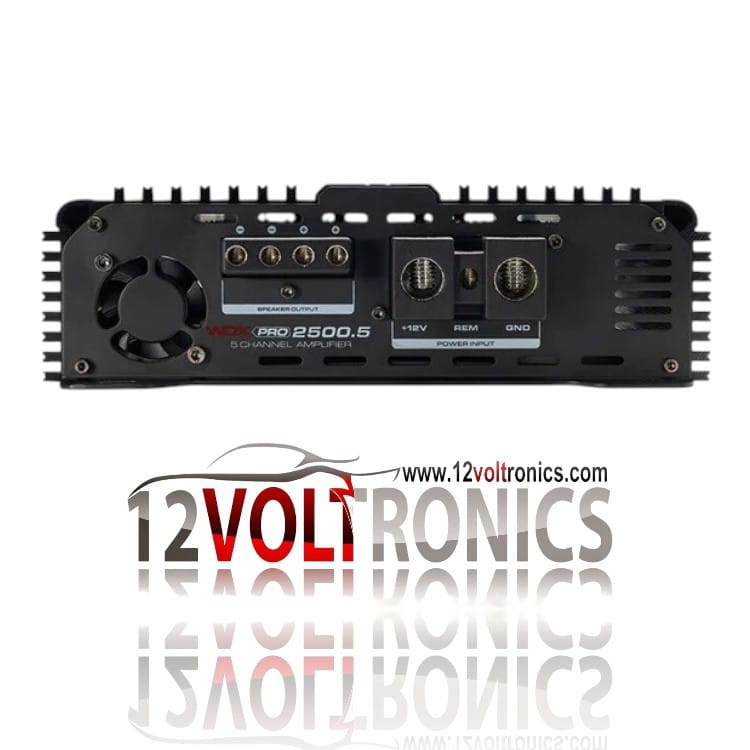

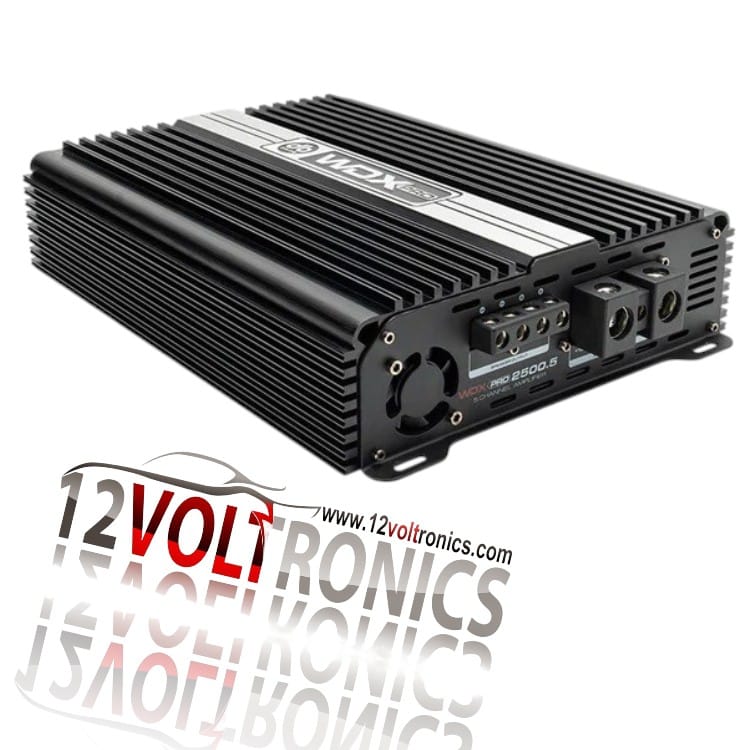

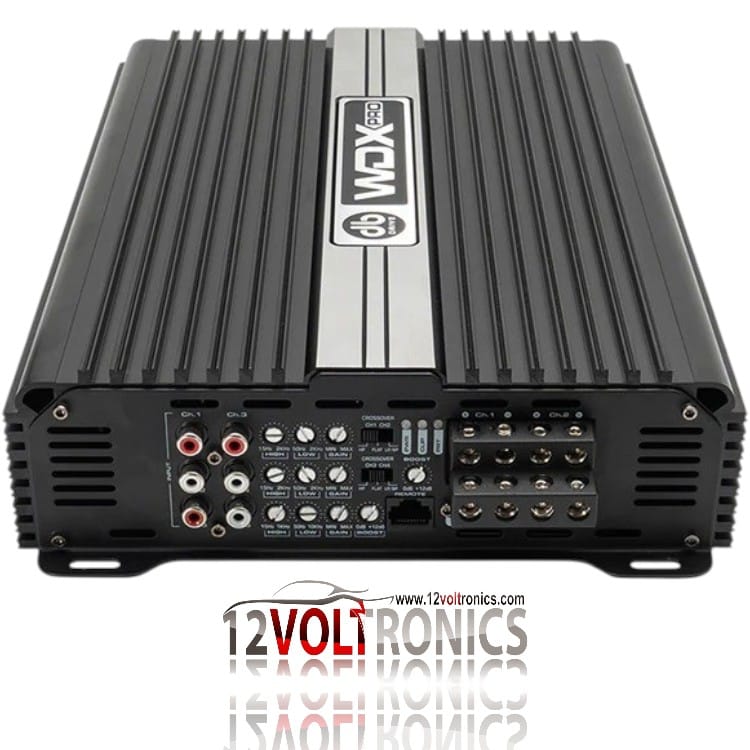

- 4 X 300W / 1 X 1000W 5 Channel Class D Amplifier
- ATC – Audiophile RCA Connectors
- ACT – Adaptive Crossover Technology
- High efficiency Class Full Range Class D Technology
- Direct Connect Speaker Terminals
- 0 Gauge Power Wire Inputs
- APC – Audio Protection Circuit
- SESI – Signal Evaluation Status Indicator
- Bass Remote with voltage, temperature and signal status indicator
- CHM – Collective Heat Management
SPECIFICATIONS
- 4 x 100 Watts @ 4 ohms @ 14.4 volts
- 4 x 200 Watts @ 2 ohms @ 14.4 volts
- 4 x 300 Watts @ 1 ohm @ 14.4 volts
- (5th Ch) 1 x 1000 Watts @ 1 ohm @ 14.4 volts
- Working Voltage: 12-15 Volts
- Frequency Response: 15 Hz – 20k Hz
- Signal to Noise Ratio: <96dB
- ACT – Variable Crossover HP/BP/LP
- Damping Factor: ≥200
- Low Level Input: 6V – 0.2mV
- Ch 1/2 High Pass Filter Variable: 15 Hz – 2k Hz
- Ch 1/2 Low Pass Filter Variable: 50 Hz – 2k Hz
- Ch 3/4 High Pass Filter Variable: 15 Hz – 2k Hz
- Ch 3/4 Low Pass Filter Variable: 50 Hz – 2k Hz
- Minimum working Impedance: 1 Ohm
