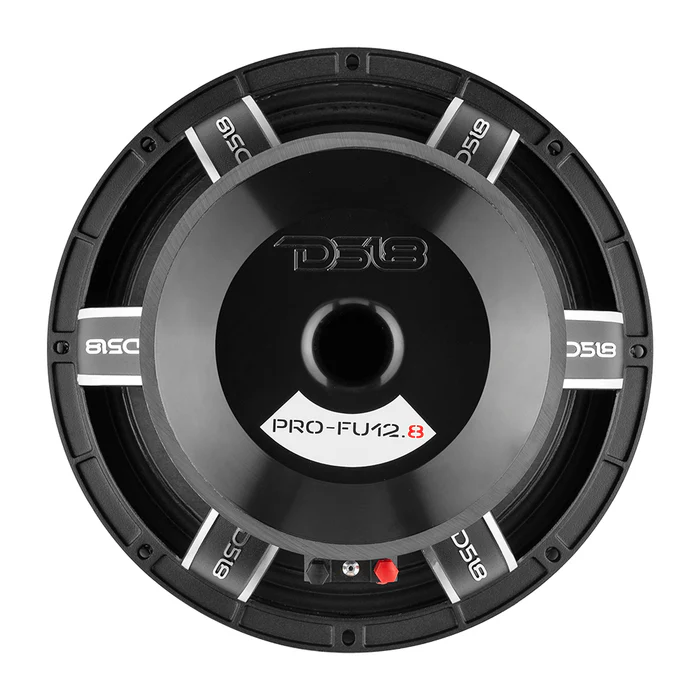

DS18 PRO-FU12.8
12″ Mid-Range Loudspeaker 600 Watts RMS 8-Ohm
DS18 has once again raised the volume with the launch of the PRO-FU12.8! This latest addition to the DS18 family is designed to deliver maximum musical precision and volume with extreme efficiency and reliability. The high-quality parts and exceptional construction utilized in the design of the PRO-FU12.8 is sure to exceed your expectations.
Engineered to perfection, the PRO-FU12.8 boasts a whopping 1200W MAX power handling and 600W RMS power handling; providing unparalleled musical precision and volume with extreme efficiency and reliability.
Designed to deliver screaming vocals and excellent mid-range sound, the PRO-FU12.8 is the perfect choice for any pro audio enthusiast. The tooled black stealth basket ensures both great looks and superior construction, while the massive ferrite motors house high-powered pro audio voice coils for the greatest efficiency to power ratio possible.
The PRO-FU12.8 is a high-quality mid-range speaker that offers exceptional musical precision and clarity, thanks to its sensitivity of 97.7dB and a frequency response of 57Hz-10KHz.
But that’s not all – The PRO-FU12.8 comes with a 8-ohm impedance, , which reduces overall power consumption and heat generated by your system. In addition to the 8-ohm configuration, the PRO-FU 12″ Mid-Range Loudspeaker is also available in an 4-ohm configuration.
Whether you’re a professional musician, DJ, or audiophile, the PRO-FU12.8 is the perfect choice for taking your sound to the next level.
- 12″ Mid-Range
- MAX Power: 1200 Watts
- RMS Power: 600 Watts
- Impedance: 8-ohm
- Ferrite Magnet
- Aluminum Basket

TECHNICAL DATA
SPECS:
SKU- PRO-FU12.8
Nominal Diameter- 12”
Nominal Impedance- 8 Ohms
RMS Power Handing- 600W
Maximum Power Handing- 1200W
Sensitivity (1w/1m)- 97.7dB
Frequency Response- 57Hz-10KHz
Recommended Hi Pass Crossover- 80Hz
Voice Coil Diameter-3″ / 76.2mm
Voice Coil Former Material- Fiber Glass
Winding Material- CCA
Basket Material- Aluminum
Magnet Weight- 100 oz
THIELE & SMALL PARAMETERS:
Vas 68.29L
Xmax 20 mm
Fs 57.6Hz
Qms 3.906
Qes 0.42
Qts 0.379
Re 5.6 ohm
MEASUREMENTS:
Overall Diameter 12.4″ / 316mm
Front Mount Baffle Cutout 11.2″ / 285mm
Mounting Depth 4.92″ / 125mm
Overall Depth 5.39″ / 137mm
Product Weight 20 lbs
Product Dimensions 13.25 x 13.25 x 6.5
