Description

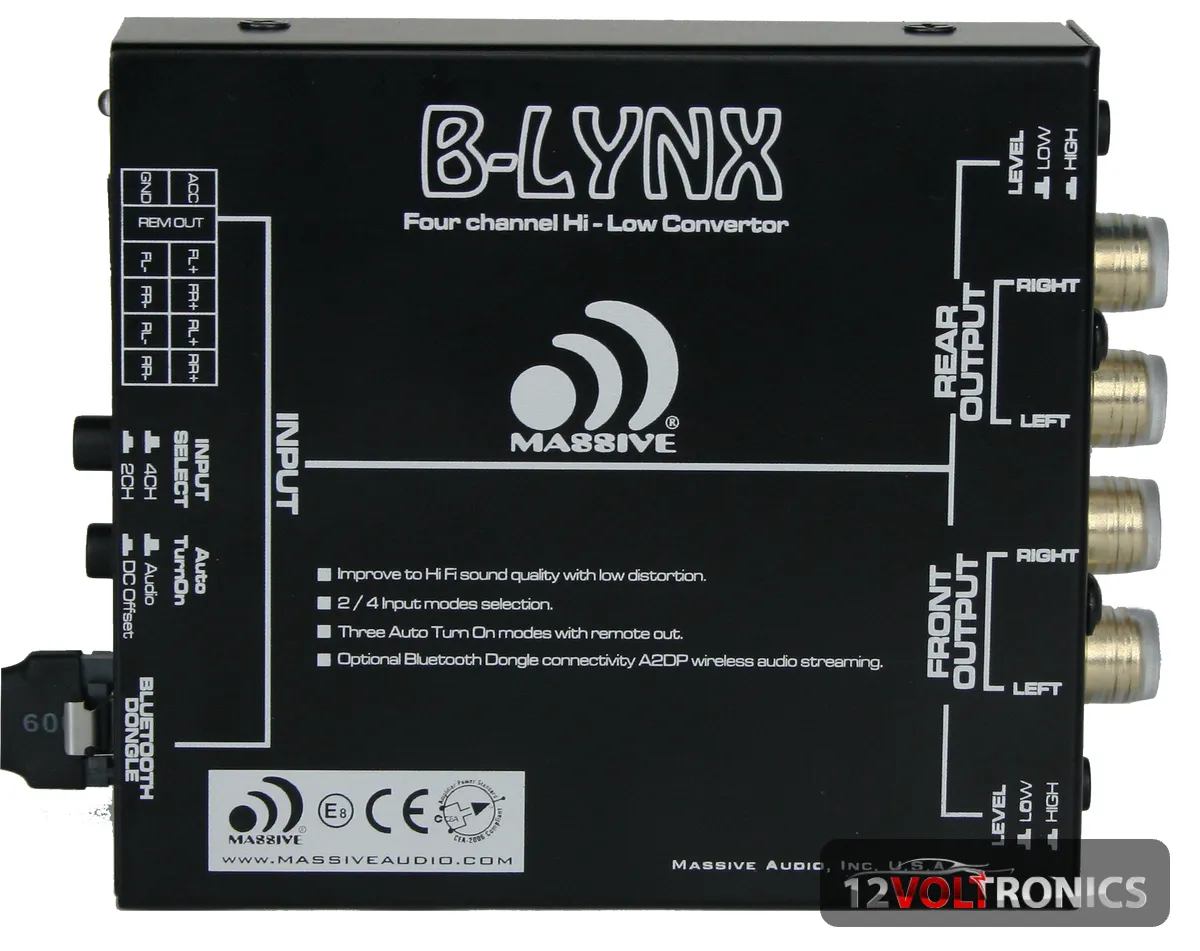

OEM integration and Bluetooth Audio Streaming are now simple and low cost with the Massive Audio B-LYNX Line Converter! The B-LYNX is ready for Bluetooth Audio Streaming (optional “UBT1” antenna required) and uses either (4) RCA or (4) speaker level inputs with (4) RCA outputs all at up to 5V out. It can be powered up (3) different ways, by sensing DC Offset, Audio & Bluetooth. It also uses a convenient +12V out that can trigger on or off other devices in the system. It’s this install design flexibility that lets the BT ready Massive Audio B-LYNX fit the needs “In, Off or On the Road”.
SPECIFICATIONS:
- Four channel speaker level to RCA level conversion
- High / Low output Level Selection
- 2 / 4 Channel Input Selection
- High Remote Output Current
- DC Offset/ Audio Turn On Selection
- Bluetooth Turn On Selection

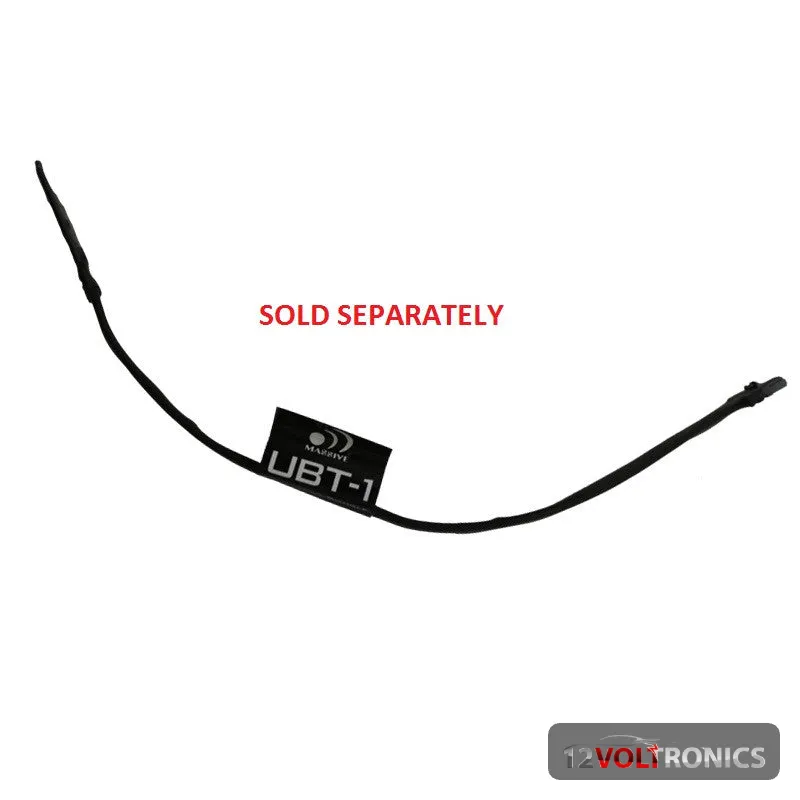

- Wireless Bluetooth Audio Streaming Function (UBT-1 SOLD SEPARATELY)
- Low Working Current Design to Reduce Power Loss
- Low Distortion
- 5V Max Output Level (RMS)
- Wide Operation Voltage (9-16VDC)
- Super Wide Frequency Response (10Hz-80KHz)
- High Quality RCA Output Terminals
- LED Indicators to Indicate Functions
